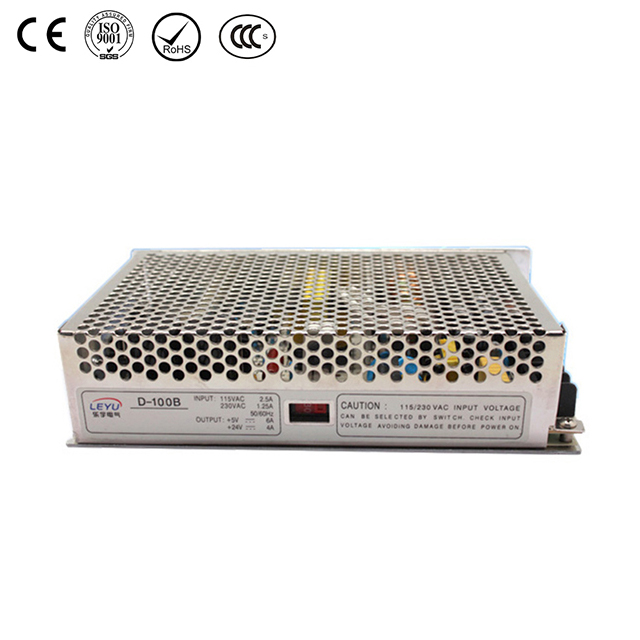

D-100 Multiple Output Power Supply

Features:
l High efficiency, high reliability
l AC input range selected by switch
l 100% full load burn-in test
l Protections: Short circuit/ Over load/ Over voltage
l Cooling by free air convection
l Fixed switching frequency at 28KHz
l 2 years warranty

Model:
D Series Multiple Output Power Supply->D-100
Brand:
LEYU

Availability:

Quantity:



Inquire Add to Basket

Zero Voltage Switching (ZVS) Multi Output OEM Multiple Output SMPS Manufacturer Redundant Multi Output Design Solar Microgrid Multi Output System High Voltage Multiple Output (>300VDC)

Product Specifications

OUTPUT
Model	D-100A		D-100B		D-100C
Output number	CH1	CH2	CH1	CH2	CH1	CH2
DC Voltage	5V	12V	5V	24V	15V	-15V
Rated Current	10A	4A	6A	3A	4A	4A
Current Range	2-10A	0.5-4A	2-6A	0.4-3A	2-4A	0.4-4A
Rated Power	98W		102W		120W
Ripple & Noise	50mVp-p	100mVp-p	50mVp-p	150mVp-p	50mVp-p	150mVp-p
Voltage Adj. Range	CH1: -5%,+10%		CH1: -5%,+10%		CH1: -5%,+10%
Voltage Tolerance	±2%	±6%	±2%	±7%	±2%	±7%
Setup,Rise,Hold Up Time	200ms,50ms,20ms at full load
INPUT
Voltage Range	88~132VAC/176~264VAC selected by switch 47~63Hz; 248~370VDC
AC Current	2.5A/115V 1.25A/ 230V
Efficiency	78%		80%		80%
Inrush Current	Cold start 35A/115V 30A/230V
Leakage Current	<3.5mA/240VAC
PROTECTION
Over Load	105%~135%
	Protection type: Shut down o/p voltage , re-power on to recover
Over Voltage	115%~135%
	Protection type: Shut down o/p voltage , re-power on to recover
ENVIRONMENT
Working Temp., Humidity	-10℃~+60℃; 20%~90%RH
Storage Temp., Humidity	-20℃~+85℃; 10%~95%RH
Temp. Coefficient	±0.03%/℃(0~50℃)
Vibration	10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes
SAFETY
Withstand Voltage	I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG:0.5KVAC
Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC
STANDARD
Safety Standard	Design refer t o 1950,TUV EN60950
EMC Standard	Design refer to EN55022 (CISPR22), EN61000-3-2,-3，EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024
OTHERS
Dimension	19911050mm(LWH)
Weight	0.82Kg
Packing	16pcs/14.2Kg/0.95CUFT
NOTE
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation. 4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
