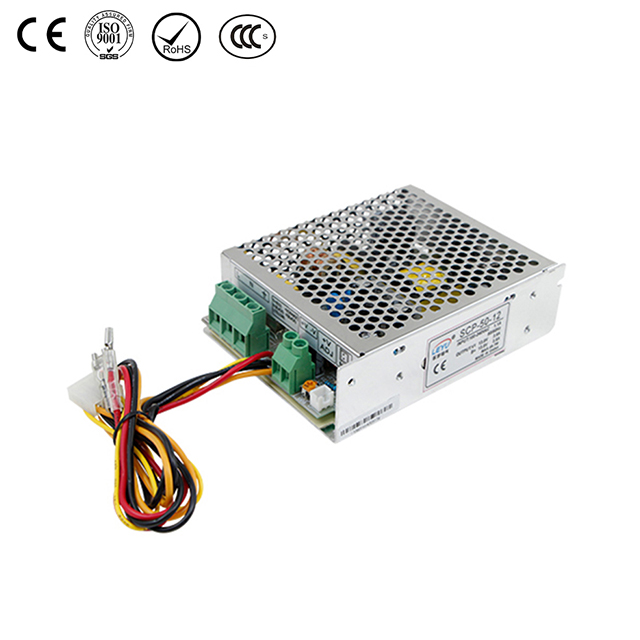

SCP-50 Industrial UPS Power Supply | 24V/10A DC & UL1778 Certified

OUTPUT

Model

SCP-50-12

SCP-50-24

DC Voltage

13.8V

27.6V

Rated Current

3.6A

1.8A

Current Range

0-3.6A

0-1.8A

Rated Power

49.7W

49.7W

Ripple & Noise

120mVp-p

200mVp-p

Voltage Adj. Range

+15,-5%

+15,-5%

Voltage Tolerance

±2%

±1%

Inlet Stability

±1%

±1%

Load Stability

±2%

±1%

Setup, Rise

500ms,30ms/230VAC  1200ms,30ms/115VAC at full load

Hold Up Time

50ms/230VAC           16ms/115VAC at full load

INPUT

Voltage   Range

85~264VAC   120-370VDC

Frequency   Range

47-63Hz

AC Current

1.1A/115VAC     0.65A/230VAC

Efficiency

81%

85%

Inrush Current

Cold-start 45A

Leakage Current

<2mA/240VAC

PROTECTION

Over Load

4.3A~5.8A rated output power

2.2A~2.9A rated output power

Protection type: hiccup mode,recovers automatically   after fault condition is removed

Over Voltage

16.6~19.3V

33.1~38.5V

Protection type: shut down o/p voltage, re-power on to   recover

ENVIRONMENT

Working Temp., Humidity

-20℃~+60℃(Refer to output derating curve),20%~90%RH

Storage Temp., Humidity

-40℃~+85℃, 10%~95%RH

Temp. Coefficient

±0.03%/℃(0~45℃)

Vibration

10~500Hz,2G 10min,/1cycle,Period for 60min,Each along   X.Y.Z axes

SAFETY

Withstand Voltage

I/P-O/P: 3KVAC   I/P-FG:   1.5KVAC   O/P-FG: 0.5KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC

STANDARD

Safety Standard

UL60950-1,CCC,CE

EMC Standard

EN55022,CLASS B

OTHERS

Dimension

129*98*38mm(L*W*H)

Net Weight

375.7g

Packing

450g/pc  30pcs/carton
