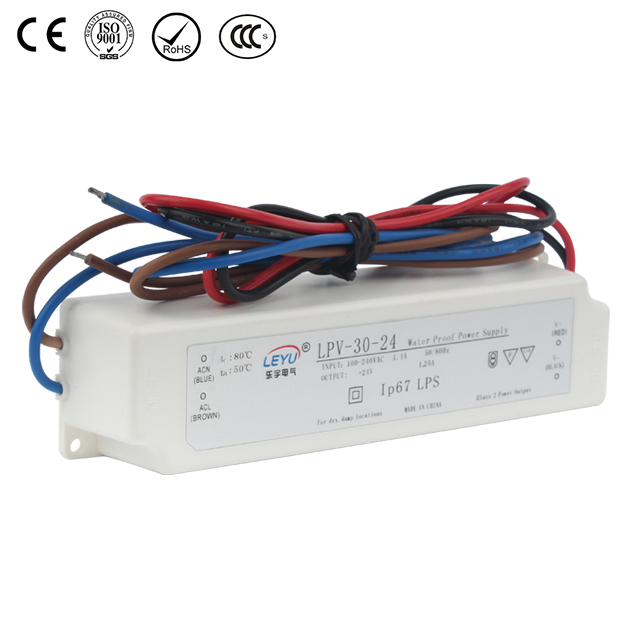

LPV-30: The Superior Waterproof Power Supply

Model

LPV-30-12

LPV-30-24

Output

DC   voltage

12V

24V

Current   range

0~2.5A

0~1.25A

Ripple&noise

100mvp-p

100mvp-p

Voltage   range

85-264VAC   120-370VDC，47-63Hz

Efficiency

78%

80%

Inrush   current

Cold   start current 30A/230VAC

Over   load

105%~150%   cut off the output,automatic recovery

Over   voltage

121%-142%   shut down O/P voltage, re-power on to recover

Environment

Working   temperature

-10℃~+50℃

Safety

Withstand   voltage

l/P-O/P:1.5KVAC   VP-FG:1.5KVAC O/P-FG:0.5KVAC 1minute

Lsolated   resistance

I/P-O/P,I/P-FG,O/P-FG:100M   ohms/500VDC

Other

Dimension

150*39*30mm(L*W*H)

Weigth/packing

0.25kg/80pcs/20kg/47*24*18.5cm

Note

1.All   parameters NOT specially mentioned are measured at 230VAC input, rated load   and 25C of ambient temperature.

2.Ripple   & noise are measured at 20MHz of bandwidth by using a 12" twisted   pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3.Tolerance   : includes set up tolerance, line regulation and load regulation.
