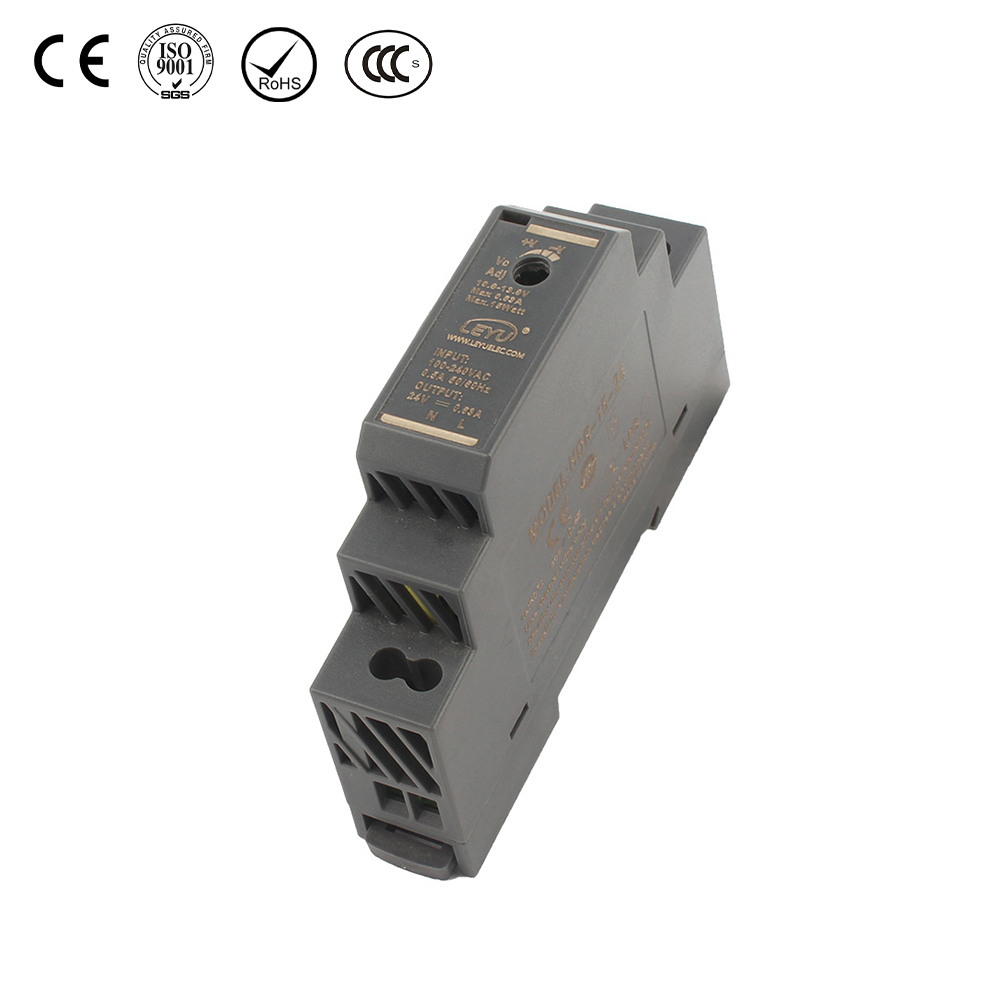

HDR-15 Din Rail Power Supply
LEYU
| Availability: | |
|---|---|
| Quantity: | |
SPECIFICATION | ||||
Model | HDR-15-5 | HDR-15-12 | HDR-15-15 | HDR-15-24 |
DC Voltage | 5V | 12V | 15V | 24V |
Rated Current | 2.4A | 1.25A | 1A | 0.63A |
Current Range | 0-2.4A | 0-1.25A | 0-1A | 0-0.63A |
Rated Power | 12W | 15W | 15W | 15.2W |
Ripple & Noise | 80mVp-p | 120mVp-p | 120mVp-p | 150mVp-p |
Voltage Adj. Range | 4.75-5.5V | 10.8-13.2V | 13.5-16.5V | 21.6-26.4V |
Voltage Tolerance | ±2% | ±1% | ±1% | ±1% |
Line regulation | ±1% | ±1% | ±1% | ±1% |
Load regulation | ±1% | ±1% | ±1% | ±1% |
Setup, Rise, Hold Up Time | 1000ms, 50ms/230VAC 1000ms, 50ms/115VAC at full load 70ms/230VAC 16ms/115VAC at full load | |||
Voltage Range | 85 ~ 264VAC 120 ~ 370VDC | |||
AC Current | 0.88A/115VAC 0.48A/230VAC | |||
Efficiency | 77% | 84% | 83.50% | 85% |
Inrush Current | COLD START 35A/115VAC 65A/230VAC | |||
Over Load | 105%~160% rated output power | |||
Working Temp., Humidity | -20℃~+60℃; 20%~90% RH non-condensing | |||
Storage Temp., Humidity | -40℃~+85℃; 10%~95%RH non-condensing | |||
Temp. Coefficient | ±0.03%/℃(0~50℃) | |||
Vibration | 10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes, Mounting: Compliance to IE60068-2-6 | |||
Withstand Voltage | I/P-O/P: 3KVAC | |||
Isolation Resistance | I/P-O/P: 100M Ohms / 500VDC/ 25℃/ 70%RH | |||
EMC Standard | Design refer to EN55011,EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,EN55024,EN61000-6-2,EN61204-3, heavy industry level, criteria A | |||
Dimension | 17.5*54.5*90mm | |||
Weight | 0.1Kg | |||
Packing | 150pcs/13KG/0.82CUFT | |||
