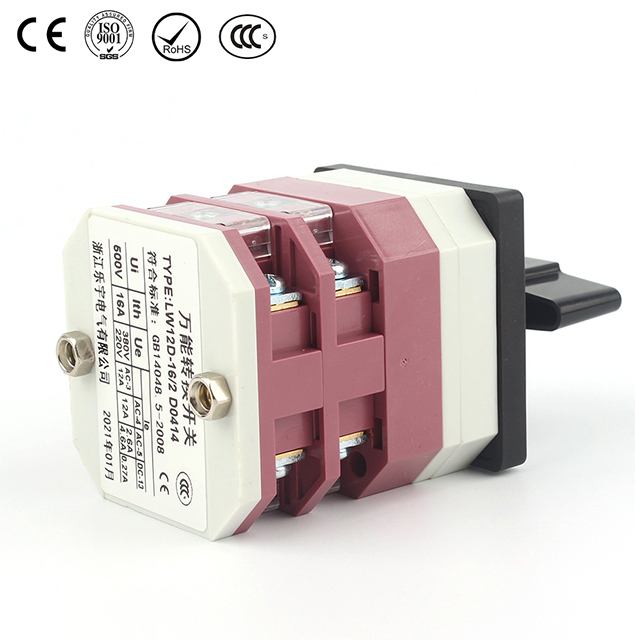

LW-12 Rotary Switch

CE-certified with a durable metal/plastic enclosure, waterproof options, and 30A/250V ratings.
Customizable poles (1-6) and positions (2-12) available.
Trusted by OEMs for reliable performance in harsh environments.
Fast shipping & bulk discounts.

Model:
LW-12 Rotary Switch
Brand:
LEYU

Availability:

Quantity:



Inquire Add to Basket

LW-12 Rotary Switch 12-position rotary switch industrial electrical switch CE-certified rotary switch multi-position selector switch

Product Description

l Introduction
LW12 apply to change over of circuits,also for control of electrical measuring in struments and control of motors.

l Technical parameters

Rated insulation current	Ui	V			500
Rated thermal current	ITH	A		16
Rated working voltage	Ue	V	220		380
Rted working current	Le
AC-15		A	4.6		2.6
DC-13		A	0.27
DC-3		A			12
DC-4		A			12

Mechnical life
Mechanical life without load:0.3×106times,operation frequency is 120 times/h.
Mechanical life with load:AC-150.1×106times operation frequency is 300 times/h.
DC-13 is 0.1×106times operation frequency is 300 times/h.
AC-3 is 0.1×106times operation frequency is 300 times/h.
AC-4 is 0.1×106times operation frequency is 120 times/h.
