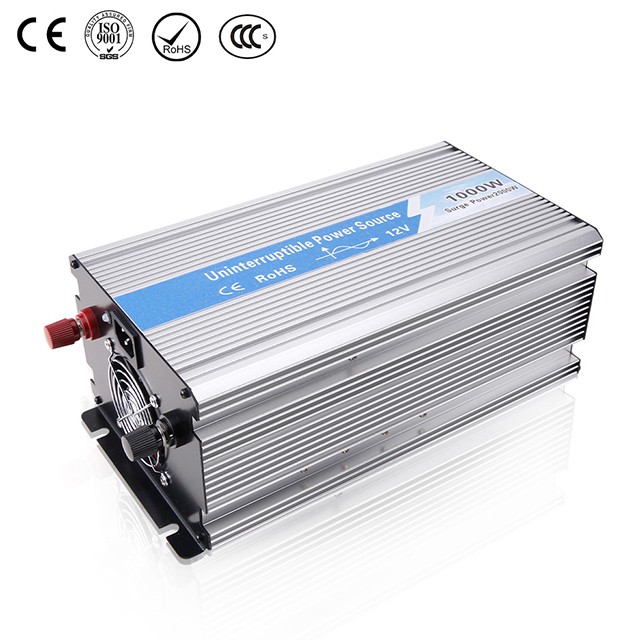

OPIP-1000C 1000W Pure Sine Wave Solar Inverter | 12V DC to AC Power Converter

Model:
OPIP-C Series Inverter with Charger->OPIP-1000C
Brand:
LEYU

Availability:

Quantity:



Inquire Add to Basket

SiC-Based High-Efficiency Inverter Charger portable inverter with charger EU Certified 3KW Inverter Charger for Home Use Hybrid Inverter with Charger power inverter with charger

Product Specifications

OPIP-1000C

Pure Sine Wave Inverter
Pure Sine Wave Inverter
Rated Power:	1000W	Frequency:	50Hz / 60Hz
Peak Power:	2000W	Unit Size:	280170120mm
Waveform:	Pure Sine Wave	Unit Weight / G.W.:	3600g / 4310g
DC Input Voltage:	12V / 24V	Box Size:	430370460mm
AC output Voltage:	110V / 220V	Quantity/CTN:	4PCS

Technical parameters
Technical parameters
Model	OPIP-1000C-1	OPIP-1000C-1	OPIP-1000C-1	OPIP-1000C-2	OPIP-1000C-2		OPIP-1000C-2
Rated power	1000W
Peak power	2000W
Input voltage	DC12V	DC24V	DC48V	DC12V	DC24V		DC48V
Output voltage	100VAC or 110VAC or 120VAC±5%			220VAC or 230VAC or 240VAC±5%
Unload current less than	0.8A	0.5A	0.2A	0.8A	0.5A		0.2A
Charging current	20A	10A	/	20A	10A	/
Output frequency	50Hz±0.5Hz or 60Hz±0.5Hz
Output waveform	Pure Sine Wave
Waveform distortion	THD<3%(Linear load)
USB port	5V 1A
Max.efficiency	90%
Input voltage range	10-15.5V	20-31V	40-61V	10-15.5V	20-31V		40-61V
Low voltage alarm	10.5±0.5V	21±0.5V	42±1V	10.5±0.5V	21±0.5V		42±1V
Low voltage protection	10±0.5V	20±0.5V	40±15V	10±0.5V	20±0.5V		40±15V
Over voltage protection	15.5±0.5V	31±0.5V	61±1V	15.5±0.5V	31±0.5V		61±1V
Low voltage recover	13±0.5V	24±0.5V	48±1V	13±0.5V	24±0.5V		48±1V
Over voltage recover	14.8V±0.5V	29.5V±0.5V	59V±1V	14.8V±0.5V	29.5V±0.5V		59V±1V
Protection function	Low voltage		Alarm at first, voltage continously reduce. LED Red light on & shut sown.
	Over voltage		LED Red light on, shut down
	Over load		LED Red light on, shut down
	Over temperature		Alarm at first, tempurature continously rise.LED Red light on & shut sown
	Short circuit		LED Red light on
	Input reverse polarity		Fuse burn-out
Working temperature	-10°- +50°
Storage temperature	-30°- +70°
Dimension(mm)	280x170x120mm
Packing(mm)	410x220x170mm
Net./gross weight(g)	3600/4310g
QTY/Ctn	4 Pcs
Meas./Ctn(mm)	430x375x460mm
Gross weight/Ctn(g)	17900g
Warranty	2 years
Configuration	Standard
Cooling method	Intelligent air cooling
Note	Our products update constantly.The technical parameter is for reference only.Please refer to our real product.
