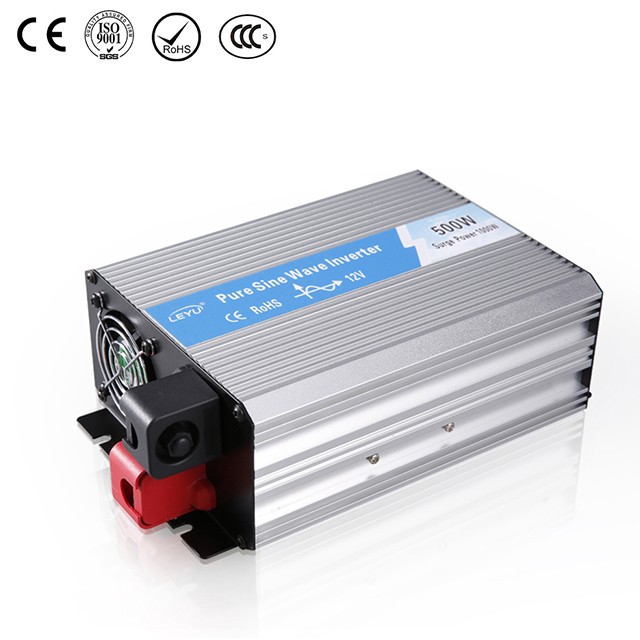

OPIP-500 | ||||
| ||||
Pure Sine Wave Inverter | ||||
Rated Power: | 500W | Frequency: | 50Hz / 60Hz | |
Peak Power: | 1000W | Unit Size: | 250*150*80mm | |
Waveform: | Pure Sine Wave | Unit Weight / G.W.: | 1740g / 2020g | |
DC Input Voltage: | 12V / 24V | Box Size: | 490*290*300mm | |
AC output Voltage: | 110V / 220V | Quantity/CTN: | 6PCS | |
Technical parameters | ||||||||||
Model | OPIP-0500-1 | OPIP-0500-1 | OPIP-0500-1 | OPIP-0500-2 | OPIP-0500-2 | OPIP-0500-2 | ||||
Rated power | 500W | |||||||||
Peak power | 1000W | |||||||||
Input voltage | DC12V | DC24V | DC48V | DC12V | DC24V | DC48V | ||||
Output voltage | 100VAC or 110VAC or 120VAC±5% | 220VAC or 230VAC or 240VAC±5% | ||||||||
Unload current less than | 0.6A | 0.4A | 0.3A | 0.6A | 0.4A | 0.3A | ||||
Output frequency | 50Hz±0.5Hz or 60Hz±0.5Hz | |||||||||
Output waveform | Pure Sine Wave | |||||||||
Waveform distortion | THD<3%(Linear load) | |||||||||
USB port | 5V 1A | |||||||||
Max.efficiency | 90% | |||||||||
Input voltage range | 10-15.5V | 20-31V | 40-61V | 10-15.5V | 20-31V | 40-61V | ||||
Low voltage alarm | 10.5±0.5V | 21±0.5V | 42±1V | 10.5±0.5V | 21±0.5V | 42±1V | ||||
Low voltage protection | 10±0.5V | 20±0.5V | 40±15V | 10±0.5V | 20±0.5V | 40±15V | ||||
Over voltage protection | 15.5±0.5V | 31±0.5V | 61±1V | 15.5±0.5V | 31±0.5V | 61±1V | ||||
Low voltage recover | 13±0.5V | 24±0.5V | 48±1V | 13±0.5V | 24±0.5V | 48±1V | ||||
Over voltage recover | 14.8V±0.5V | 29.5V±0.5V | 59V±1V | 14.8V±0.5V | 29.5V±0.5V | 59V±1V | ||||
Protection function | Low voltage | Alarm at first, voltage continously reduce. LED Red light on & shut sown. | ||||||||
Over voltage | LED Red light on, shut down | |||||||||
Over load | LED Red light on, shut down | |||||||||
Over temperature | Alarm at first, tempurature continously rise.LED Red light on & shut sown | |||||||||
Short circuit | LED Red light on | |||||||||
Input reverse polarity | Fuse burn-out | |||||||||
Working temperature | -10°- +50° | |||||||||
Storage temperature | -30°- +70° | |||||||||
Dimension(mm) | 250x150x80mm | |||||||||
Packing(mm) | 280x195x100mm | |||||||||
Net./gross weight(g) | 1740/2020g | |||||||||
QTY/Ctn | 6 Pcs | |||||||||
Meas./Ctn(mm) | 490x290x300mm | |||||||||
Gross weight/Ctn(g) | 14kg | |||||||||
Warranty | 2 years | |||||||||
Configuration | Standard | |||||||||
Cooling method | Intelligent air cooling | |||||||||
Note | Our products update constantly.The technical parameter is for reference only.Please refer to our real product. | |||||||||
