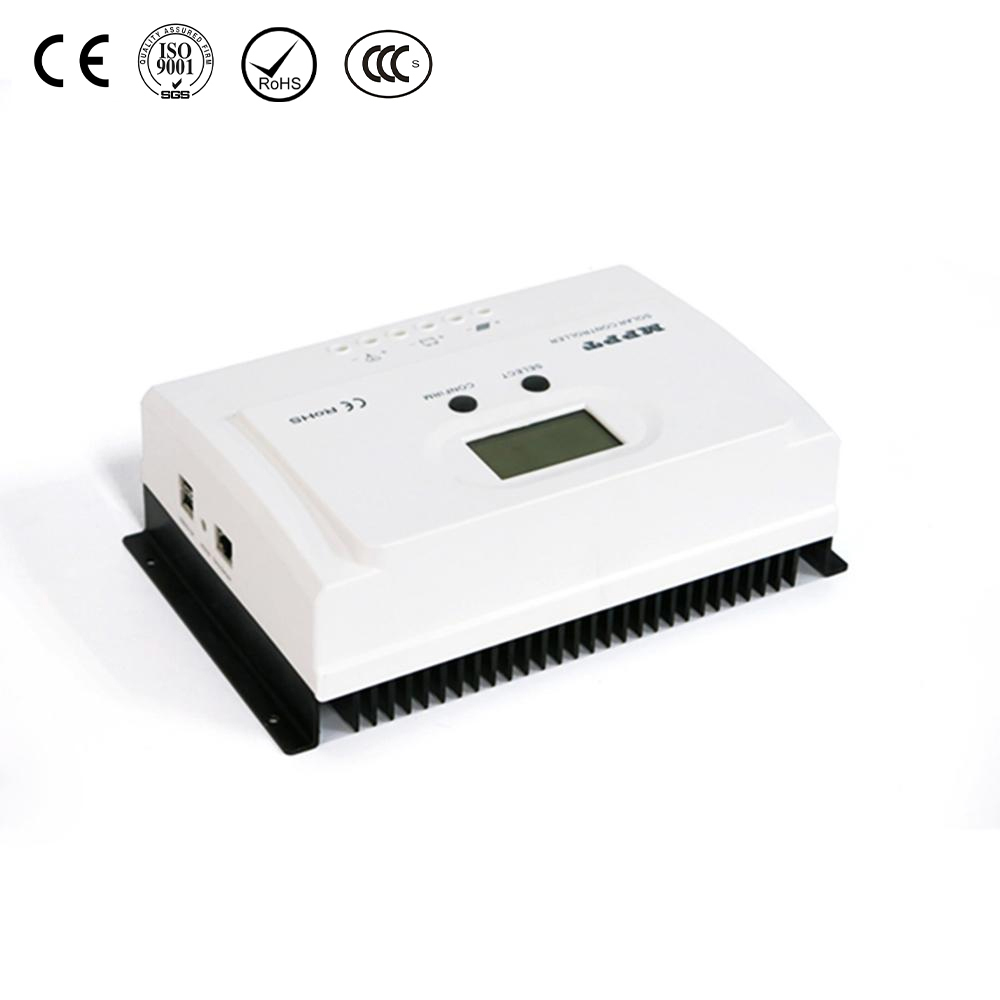

OPLC MPPT Solar Controller

OPL MPPT-12V/24V-Series

Charge mode

MPPT(maximum power point tracking)

MPPT efficiency

≥99.5%

System type

DC12V/24V system

Automatic Recognition

INPUT CHARACTERISTICS

PV Max PV input voltage（VOC）

12V/24V system

DC100V

DC150V

Start the charging voltage point

12V system

18V

24V system

32V

High input voltage protection point

12V/24V system

DC100V

DC150V

High input voltage recovery point

12V/24V system

DC95V

DC145V

Rated PV power

12V system

200W

260W

390W

520W

650W

24V system

400W

520W

780W

1040W

1300W

CHARGE CHRECTRESTICS

Selectable Battery Types

12V/24V system

Sealed lead-acid batteries, Vented batteries Gel, NiCd battery

(Other types of the batteries also can be defined)

Charge method

12V/24V system

Three stages charge: constant current(MPPT),constant voltage, floating charge

Charge rated current

12V/24V system

15A

20A

30A

40A

50A

OUTPUT DISCHARGE CHARACTERISTICS

USB (Total for 2 USB output)

DC5V 3A

LOAD output voltage

Based on battery voltage

Max. DC load current

30A

Output control mode

ON/OFF mode, PV voltage control mode

Output control set way

Controller button or PC software

DISPLAY

LCD Display

System type, PV voltage,charge voltage, charging current,charging power, temperature etc.

PC software

RS232

OTHER PARAMETERS

Protection function

Yes (Over voltage, low voltage, over temperature,over load, Short circuit protection etc.)

Cooling mode

Auto cool

Type of Mechanical Protection

IP 30

Measurement DxWxH (mm)

200*110*66

243*155*79

Packing DxWxH (mm)

249*144*105

289*189*113

N.W. (KG)

0.9

1.8

G.W. (KG)

1.3

2.2
