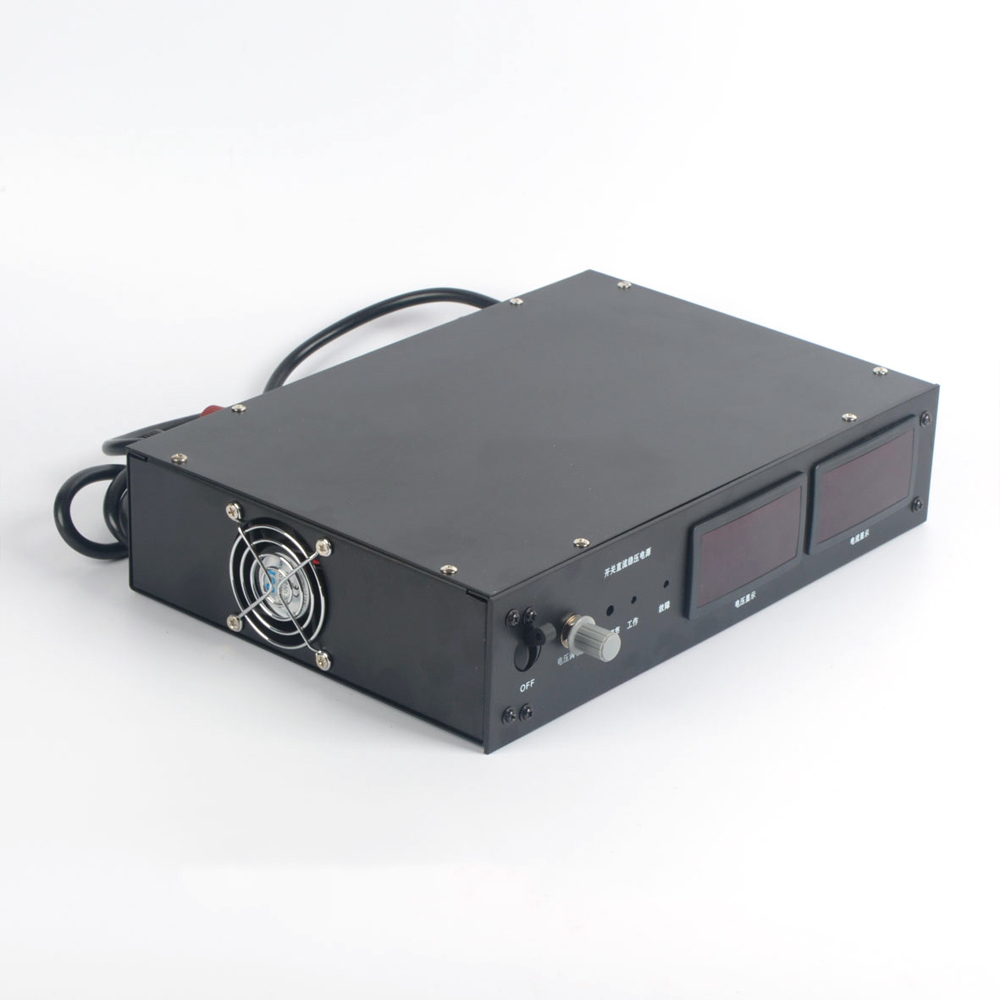

SV-1000 High Power Power Supply

Name: SV-1000 High Power Power Supply
Brand: LEYU
Rating: 5.0 (63 reviews)

Features:
High efficiency, high reliability

100% full load burn-in test
Protection: Short circuit/ Over load / Over voltage
1 year warranty
Dimensions:260*145*115(mm)

Product Description

乐清市乐宇自动化电气有限

Yueqing Leyu Electric Automation Co., Ltd.

1000W Single Output switching power supply SV-1000 series

Features:

·High efficiency, high reliability

100% full load burn-in test

Protection: Short circuit/ Over load / Over voltage

1 year warranty

Dimensions:260*145*115(mm)

SPECIFICATIONS
OUTPUT
Model	SV- 1000-12	SV- 1000-15	SV- 1000-24	SV- 1000-30	SV-1000-48	SV- 1000-110
DC Voltage	0~15V	0~15V	0~30V	0~30V	48V	110V
Rated Current	83.3A	66.6A	41.6A	33.3A	20.8A	9.0A
Current Range	0-83.3A	0-66.6A	0-41.6A	0-33.3A	0-20.8A	0-9.0A
Ripple & Noise	160mV	180mV	190mV	320mV	400mV	900mV
Voltage Adj. Range	0.50%	0.50%	0.50%	0.50%	0.50%	0.50%
Setup&Rise Time	100ms,50ms at full load
Hold Up Time	20ms at full load
INPUT
Voltage Range	AC220V±20% 47～63HZ
AC Current	3.2A/115V 1.6A/230V
Efficiency	86%	86%	87%	87%	89%	89%
Inrush Current	40A/230V
Leakage Current	<0.5MA/230VAC
PROTECTION
Over Load	110～150%
Over Load	Protection type: Shut down o/p voltage, re-power on to recover
Over Voltage	110～150%
Over Voltage	Protection type: Shut down o/p voltage, re-power on to recover
SAFETY
Withstand Voltage	I/P-O/P:1.5KVAC/1min I/P-F/G:1.5KVAC/1min
Isolation Resistance	O/P-F/G:0.5KVAC /1min
NOTE
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation 4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
