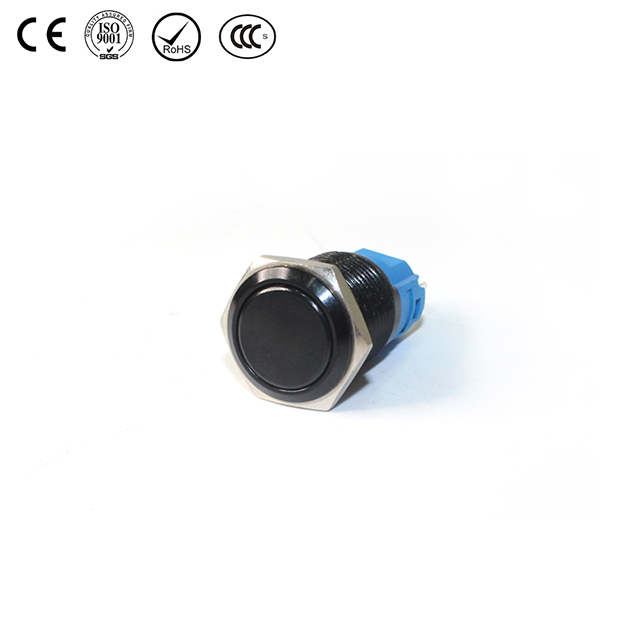

ZMBS-22 Push Button Switch

1.Ultra short length , only 21.3mm.
2.Optional connector,To ensure contact performance,reduce waste of labor;
3.With both flat and spherical design,operation is more convenient;
4.With super metal texture and high-end of appearance design,improve the ability to resist welding deformation;
5.Waterproof and dustproof grade up to IP65;
6.Mechanical life: up to 600,000times,it can work at -20℃~55℃;
7.It has applied of many patents ,RoHS,CE approve

Model:
ZMBS-22 Push Button Switch
Brand:
LEYU

Availability:

Quantity:



Inquire Add to Basket

anti-vibration push button switch ZMBS-12 dual-color LED industrial switch 50A hazardous area ATEX certified switch marine-grade waterproof push button custom automotive ignition switch

Product Description

Product Name	Push Button Switch
Model	B
Mounting Hole	22 mm
Operation Type	Self-locking & reset
Input voltage range	(3-6V) 12V 24V
Switch Combination	1NO 1NC
Head Type	Flat round head
Terminal type	4 5 6 Pin Terminals
Light Color	Red\ Yellow \Blue
Illuminated or not	NO
Housing Color	Silver
Material	Alloy\ Nickel plated brass\stainless steel
Delivery Days	1-7 days
Contact Resistance	50 mΩ max
Insulation Resistance	1000MΩ Min
Operating Temperature	-20°C ~+55°C
Wire Soldering	Acceptable and with fast shipping
Accessories	Nut, Rubber Gasket
More size	7MM 8MM 12MM 16MM 19MM 22MM 25MM 28MM 30MM 44MM
The number of life	Over 50000 times
Single gross weight:	0.022 kg
