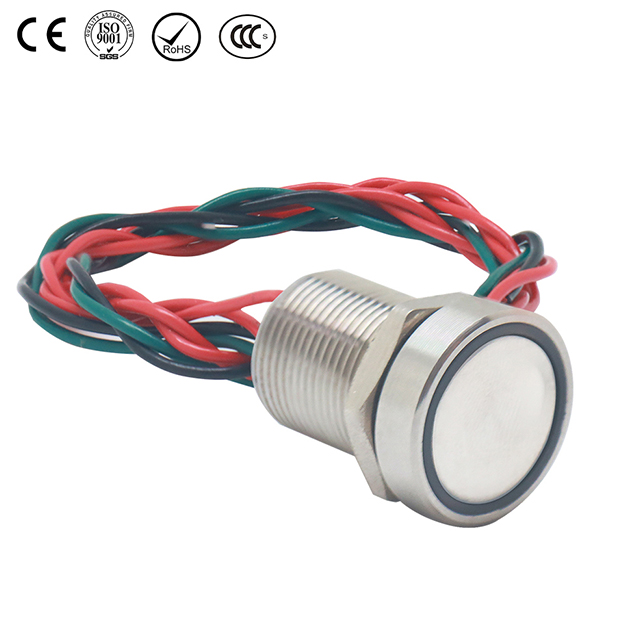

ZMPS-16A Piezo Switch

Features:
A variety of styles to choose from:Flat/Chamfer/Concave
Glued Package IP68 waterproof pure copper wire,good conductivity
Waterproof,dustproof,flame retardant head waterproof and dustproof flame retardant plastic parts
LED high light wicks,LED life can reach 30,000 hours bright color,soft bright,long life
The LED indicators are available in a variety of colors

Model:
ZMPS-16A Piezo Switch
Brand:
LEYU

Availability:

Quantity:



Inquire Add to Basket

piezo button switch piezo pressure switch piezoelectric resistive switch convert piezo to switch push button piezo igniter switch

Product Description

Product Name	IP68 Waterproof Piezo Switch
Model	ZMPS16A-F10M		ZMPS16A-F10M/D	ZMPS16A-F10M/R
Mounting Hole Size	16mm
Operation Types	Momentary (Reset)
Switch Combination	1NO
Actuator Shape	Flat/Chamfer/Concave/High Flat
Terminal type	Wired lead
Illuminated or not	Yes or NO
Led Voltage	3-24V
Led Color	Blue (Red,Green, Yellow,White,Orange,Purple available)
Illuminated Type	Ring/Dot
Enclosure Material	Stainless Steel/ Aluminum
Rated Current	2A
Contact Resistance	50 mn max
Operating Force	6 to 15N
Dielectric Intensity	2000VAC
Operating Temperature	-40°C to +75°C
Accessories	Nut, Rubber Waterproof O-ring
Customized symbol,colored housing or Connector		Acceptable and with fast shipping
Choose 2/3 colors from two-color/three-color light combination (above colors)
