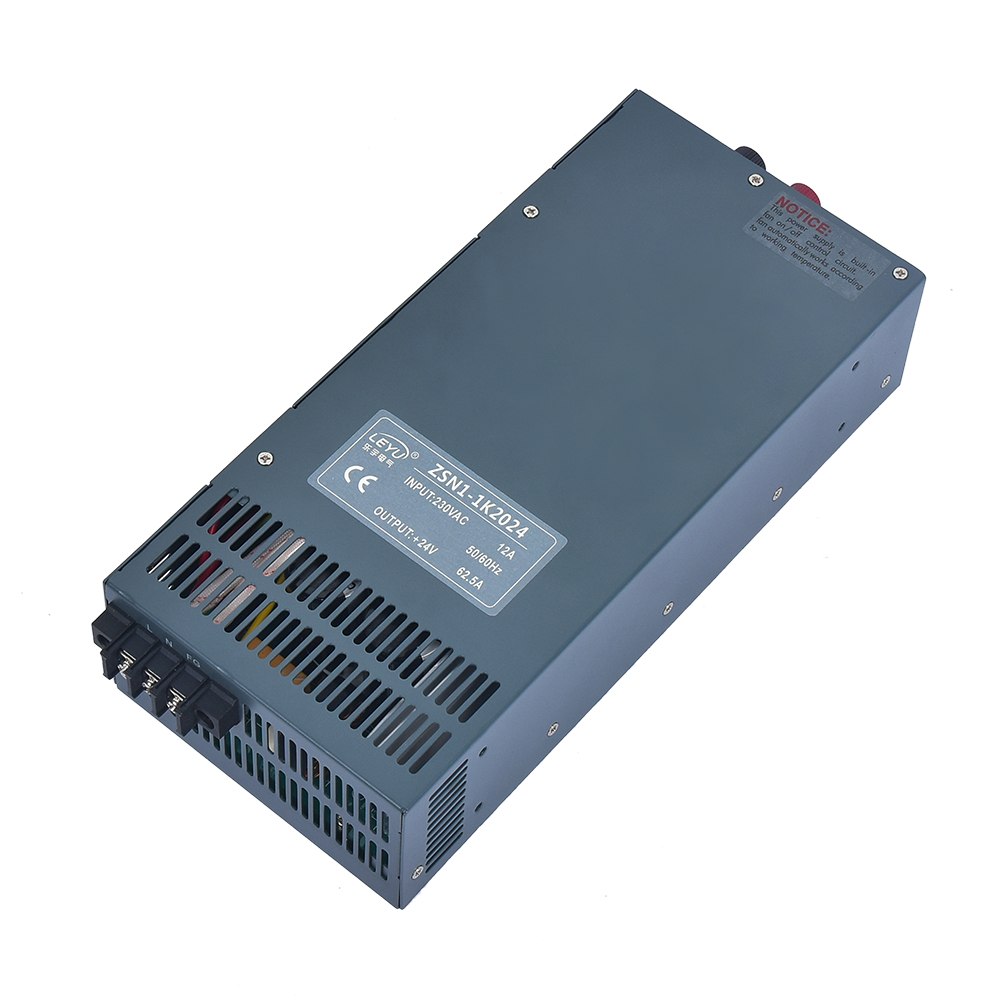

ZSN1-1K0 High Power Power Supply

1. All parameters are measured at 230VAC input, rated load and 25°C unless otherwise specified.

2. RIPPLE AND NOISE VOLTAGES ARE MEASURED AT 20UMHz bandwidth oscilloscope with 0.1 μ and 47 μ capacitance at the end of a 12-inch twisted pair cable, measured at 20MHZ bandwidth.

3. Accuracy: including setting error, linear regulation and load regulation.

4. If the input voltage is low, the output needs to be derated, please refer to the static characteristic curve for details.

5. The start-up time is measured when the machine is cool-in, and frequent switching on and off may increase the start-up time.

Model:
ZSN1-1K0 High Power Power Supply
Brand:
LEYU

Availability:

Quantity:



Inquire Add to Basket

high voltage low current power supply high current pedal power supply starlink high performance power supply high voltage dc-dc power supply high power dc supply

Product Description

SPECIFICATIONS
OUTPUT
Model	ZSN1-1K0-12	ZSN1-1K0-15	ZSN1-1K0-24	ZSN1-1K0-27	ZSN1-1K0-48
DC Voltage	12V	15V	24V	27V	48V
Rated Current	80A	67A	40A	24A	20A
Current Range	0-80A	0-67A	0-40A	0-37A	0-20A
Rated Power	960W	1005W	960W	999W	960W
Ripple & Noise	200mVp-p	200mVp-p	240mVp-p	240mVp-p	300mVp-p
Voltage Adj. Range	10~13.2V	13.5~18V	20~26.4V	24~30V	41~56V
Voltage Tolerance	±10%	±10%	±5%	±5%	±5%
Inlet Stability	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
Load Stability	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
Setup, Rise, Hold Up Time	1.5s,50ms,20ms at full load

INPUT
Voltage Range	180~264VAC 47~63Hz
AC Current	10A/230V
Efficiency	84%	83%	85%	86%	87%
Inrush Current	Cold-start current 60A 230V
Leakage Current	<3.5mA/240VAC

PROTECTION
Over Load	105%~135%
Over Load	Protection type: plusing hiccup shutdown Reset:Fecycle AC ON/OFF
Over Temp.	RTH≥80℃ output shutdown
Over Temp.

ENVIRONMENT
Working Temp., Humidity	-10℃~+60℃(Refer to output derating curve),20%~90%RH
Storage Temp., Humidity	-20℃~+85℃, 10%~95%RH
Temp. Coefficient	±0.03%/℃(0~50℃)
Vibration	10~500Hz,2G 10min,/1cycle,Period for 60min,Each axes

OTHERS
Dimension	29113268mm(LWH)
Weight	2.5Kg
