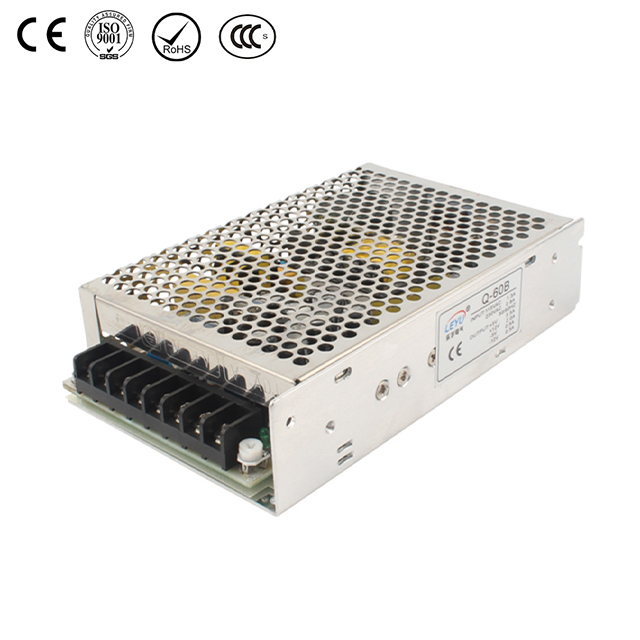

Q-60 Multiple Output Power Supply

OUTPUT

Model

Q-60B

Q-60C

Q-60D

Output number

CH1

CH2

CH3

CH4

CH1

CH2

CH3

CH4

CH1

CH2

CH3

CH4

DC Voltage

5V

12V

-5V

-12V

5V

15V

-5V

-15V

5V

12V

24V

-12V

Rated Current

5.5A

2A

0.5A

0.5A

5.5A

1.5A

0.5A

0.5A

4A

1A

1A

0.5A

Current Range

0.5-8A

0.1-3A

0-1A

0-1A

0.5-8A

0.1-3A

0-1A

0-1A

0.5-8A

0.1-3A

0.1-1.5A

0-1A

Rated Power

60W

60W

60W

60W

60W

60W

60W

60W

60W

62W

62W

62W

Ripple & Noise

100mVp-p

120mVp-p

100mVp-p

120mVp-p

100mVp-p

120mVp-p

100mVp-p

120mVp-p

100mVp-p

120mVp-p

150mVp-p

120mVp-p

Voltage Adj. Range

CH1: -5%, +10%

CH1: -5%, +10%

CH1: -5%, +10%

Voltage Tolerance

±2%

±6%

±5%

±5%

±2%

+8%
  -4%

±5%

±5%

±2%

±6%

+8%
  -4%

±5%

Setup, Rise, Hold Up Time

1600ms,20ms,12ms/115VAC   800ms,20ms, 60ms/230VAC at full load

INPUT

Voltage Range

85~264VAC   47-63Hz;   120~370VDC

AC Current

2A/115V   0.8A/230V

Efficiency

70%

72%

75%

Inrush Current

Cold start 18A/115V     36A/230V

Leakage Current

<1mA/240VAC

PROTECTION

Over Load

105%~150%/115VAC

Protection type: Shut down o/p voltage, recovers   automatically after fault condition is removed

Over Voltage

5V:115%~135%

Protection type: Hiccup mode, recovers automatically   after fault condition is removed

ENVIRONMENT

Working Temp., Humidity

-10℃~+60℃; 20%~90%RH

Storage Temp., Humidity

-20℃~+85℃; 10%~95%RH

Vibration

10~500Hz, 2G 10min./1cycle, period for 60min, each   along X, Y, Z axes

SAFETY

Withstand Voltage

I/P-O/P: 3KVAC   I/P-FG:   1.5KVAC   O/P-FG: 0.5KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC

STANDARD

Safety Standard

Design refer to UL60950

EMC Standard

Design refer to EN55022,EN61000-3-2,-3,   EN61000-4-2,3,4,5,6,8,11; ENV50204

OTHERS

Dimension

159*97*38mm(L*W*H)

Weight

0.56Kg

Packing

24pcs/14.4Kg/0.75CUFT

NOTE

1.All parameters NOT specially mentioned are measured   at 230VAC input, rated load and 25℃ of ambient temperature.

2.Ripple & noise are measured at 20MHz of bandwidth   by using a 12” twisted pair-wire terminated with a 0.1μ & 47μ parallel   capacitor.

3.Tolerance: includes set up tolerance, line regulation   and load regulation.

4.The power supply is considered a component which will   be installed into a final equipment. The final equipment must be re-confirmed   that it still meets EMC directives.
