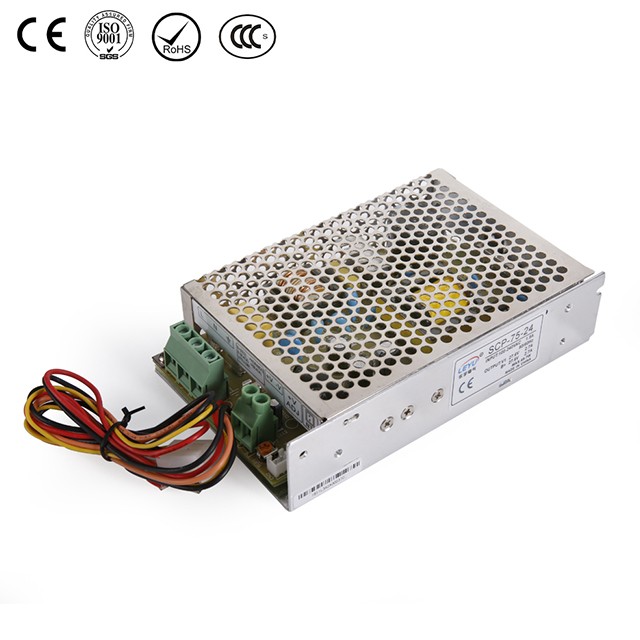

SCP-75 Industrial UPS Power Supply | 24V/10A DC & LEYU

OUTPUT

Model

SCP-75-12

SCP-75-24

DC Voltage

13.8V

27.6V

Rated Current

5.4A

2.7A

Current Range

0-5.4A

0-2.7A

Rated Power

74.5W

74.5W

Ripple & Noise

120mVp-p

200mVp-p

Voltage Adj. Range

+15,-5%

+15,-5%

Voltage Tolerance

±2%

±1%

Inlet Stability

±1%

±1%

Load Stability

±2%

±1%

Setup, Rise, Hold Up Time

500ms,30ms/230VAC  1200ms,30ms/115VAC at full load

INPUT

Voltage   Range

85~264VAC   120-370VDC

Frequency   Range

47-63Hz

AC Current

0.7A/115V     0.5A/230VAC

Efficiency

80%

84%

Inrush Current

Cold-start 45A

Leakage Current

<2mA/240VAC

PROTECTION

Over Load

6.5A~8.7A rated output power

3.2A~4.3A rated output power

Protection type: hiccup mode,recovers automatically   after fault condition is removed

Over Voltage

16.6~19.3V

33.1~38.5V

Protection type: shut down o/p voltage, re-power on to   recover

ENVIRONMENT

Working Temp., Humidity

-20℃~+60℃(Refer to output derating curve),20%~90%RH

Storage Temp., Humidity

-40℃~+85℃, 10%~95%RH

Temp. Coefficient

±0.05%/℃(0~45℃)

Vibration

10~500Hz,2G 10min,/1cycle,Period for 60min,Each along   X.Y.Z axes

SAFETY

Withstand Voltage

I/P-O/P: 3KVAC   I/P-FG:   2KVAC   O/P-FG: 0.5KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC

STANDARD

Safety Standard

UL60950-1,CCC,CE

EMC Standard

Design refer to   EN55022(CLSPR22),EN61000-3-2,-3,

EN61000-4-2,3,4,5,6,8,11;   ENV50204, EN55024

OTHERS

Dimension

159*97*38mm(L*W*H)

Weight

0.5Kg/pc  30pcs/carton
