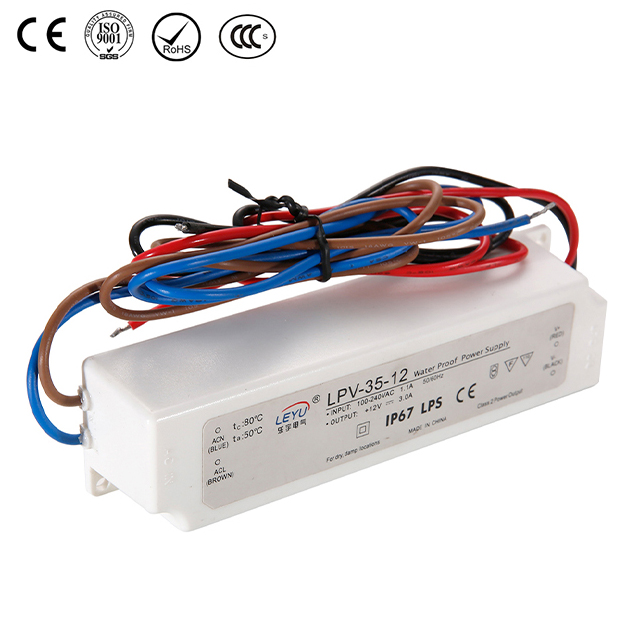

LPV-35 Waterproof Power Supply: IP67-Certified 30W AC/DC for Extreme Conditions

Features:
Constant voltage design
Universal AC input/Full range
Withstand 300VAC surge input for 5 seconds
Protections: short circuit/ over load/ over voltage
Cooling by free air convection
Small and compact size
Fully encapsulated with IP67 level
Fully isolated plastic case
Class II power unit, no FG
Class 2 power unit
Pass LPS
Suitable for LED lighting and moving sign applications
100% full load burn-in test
Low cost, high reliability
2 year warranty

Model:
LPV Series Waterproof Power Supply->LPV-35
Brand:
LEYU

Availability:

Quantity:



Inquire Add to Basket

Outdoor Rated Power Converter Tech Specifications Waterproof Emergency Power Source Water-Resistant Power Supply Function & Application-Based

Product Specifications

SPECIFICATION
OUTPUT
Model	LPV-35-5	LPV-35-12	LPV-35-15	LPV-35-24		LPV-35-36
DC Voltage	5V	12V	15V	24V		36V
Rated Current	5A	3A	2.4A	1.5A		1A
Current Range	0 ~ 6A	0 ~ 3A	0 ~ 2.4A	0 ~ 1.5A		0 ~ 1A
Rated Power	30W	36W	36W	36W		36W
Ripple & Noise	80mVp-p	120mVp-p	120mVp-p	150mVp-p		150mVp-p
Voltage Tolerance	±6.0%	±5.0%
Line Regulation	±1.0%
Load Regulation	±4.0%	±2.0%
Setup, Rise Time	500ms, 20ms/230VAC 500ms, 20ms/115VAC at full load
Hold Up Time	50ms/230VAC 16ms/115VAC at full load

INPUT
Voltage Range	90 ~ 264VAC 127 ~ 370VDC
Frequency Range	47 ~ 63Hz
Efficiency	77%	84%	84%	85%		85%
AC Current	1.1A/115VAC 0.57A/230VAC
Inrush Current	Cold Start 55A at 230VAC
Leakage Current	0.25mA / 240VAC

PROTECTION
Over Load	110 ~ 150% rated output power
	Protection type: Hiccup mode, recovers automatically after fault condition is removed
Over Voltage	5.75~6.75V	13.8~16.2V	17.25~20.25V		27.6~32.4V	41.4~48.6V
	Protection type: Shut down o/p voltage, re-power on to recover

ENVIRONMENT
Working Temp.	-30 ~ +65℃ (Refer to “Derating Curve”)
Working Humidity	20 ~ 90% RH non-condensing
Storage Temp., Humidity	-40 ~ +80℃, 10 ~ 95% RH
Temp. Coefficient	±0.03%/℃ (0 ~ 45℃)
Vibration	10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC
Safety Standards	UL1310 class 2,CAN/CSA No.223-M91,CB IEC61347-2-13, IP67 approved, design refer to TUV EN60950-1
Withstand Voltage	I/P-O/P:3KVAC
Isolation Resistance	I/P-O/P>100M Ohms / 500VDC / 25℃ / 70% RH
EMC Emission	Compliance to EN55022 (CISPR22) Class B, EN61000-3-2 Class A,EN61000-3-3
EMC Immunity	Compliance to EN61000-4-2, 3, 4, 5, 6, 8,11, EN55024, light industry level, criteria A

OTHERS
Dimension	1484030mm (LWH)
Weight	0.34Kg
Packing	40pcs/14.6Kg/0.63CUFT

NOTE
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance: includes set up tolerance, line regulation and load regulation. 4.Derating may not be needed under low input voltage. Please check the static characteristics for more details.
