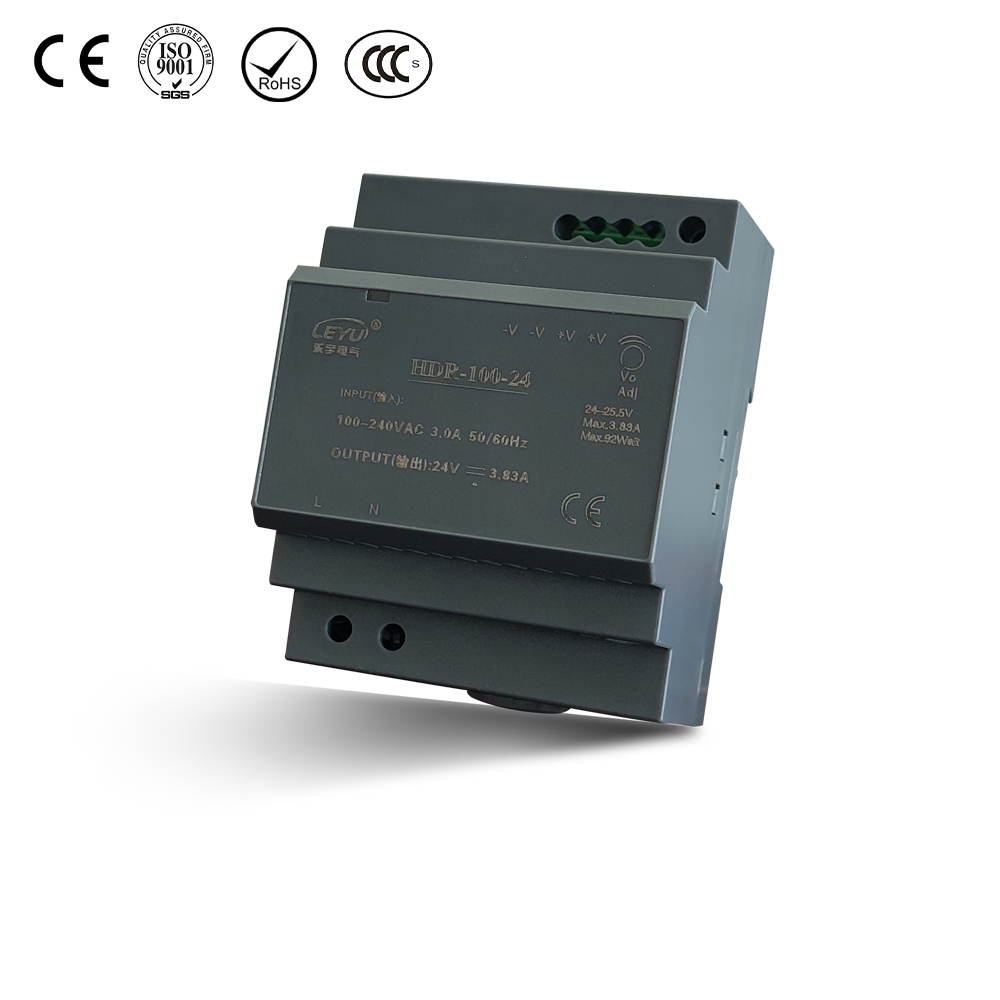

HDR-100 Din Rail power supply

Name: HDR-100 Din Rail power supply
Brand: LEYU
Rating: 5.0 (63 reviews)

Features
Universal AC input/ full range
Universal input 85～264VAC(277VAC operational)
No load power consumption<0.3W
Isolation class Ⅱ
Protections: Short circuit/ Over load/ Over voltage/ Over temperature
DC output voltage adjustable
Cooling by free air convection (working temperature:-30~+70°C)
DIN rail TS-35/7.5 or 15 mountable
LED indicator for power on
2 years warranty

Model:
HDR-100 Din Rail power supply
Brand:
LEYU

Availability:

Quantity:



Inquire Add to Basket

100w Din Rail Power Supply Din Rail power supply Din Rail Power Supply supplier Din Rail Power Supply manufacturer wholesale Din Rail Power Supply

Product Description

Model		HDR-100-12	HDR-100-15	HDR-100-24	HDR-100-48
Dc Voltage		12V	15V	24V	48V
Rated Current		7.1A	6.13A	3.83A	1.92A
Current Range		0 ~ 7.1A	0 ~ 6.13A	0 ~ 3.83A	0 ~1.92A
Rated Power		85.2W	92W	92W	92.2W
Ripple & Noise (Max.)		120mVp-p	120mVp-p	150mVp-p	240mVp-p
Voltage Adj. Range	Pass LPS	12 ~ 13V	15 ~ 17V	24 ~ 25.5V	48 ~ 48.7V
	Non LPS	12~ 13.8V	13.5 ~ 18V	21.6 ~ 29V	43.2 ~ 55.2V
Voltage Tolerance		±2.0%	±1.0%	±1.0%	±1.0%
Line Regulation		±1.0%	±1.0%	±1.0%	±1.0%
Load Regulation		±1.0%	±1.0%	±1.0%	±1.0%
Setup, Rise Time		500ms, 60ms/230VAC 500ms, 60ms/115VAC at full load
Hold Up Time		30ms/230VAC 12ms/115VAC at full load
Voltage Range		85 ~ 264VAC (277VAC operational ) 120 ~ 370VDC (390VDC operational )
Frequency Range		47 ~ 63Hz
Efficiency		88%	89%	90%	90%
Ac Current		3A/115VAC 1.6A/230VAC
Inrush Current		COLD START 35A/115VAC 70A/230VAC
Overload		HDR-100 : 102 ~ 110% rated output power ; HDR-100-xxN : 105 ~ 150% rated output power
		Hiccup mode when output voltage <50%, recovers automatically after fault condition is removed Constant current limiting within 50% ～100% rated output voltage, recovers automatically after fault condition is removed
Over voltage		14.2 ~ 16.2V	18.8 ~ 22.5V	30 ~ 36V	56.5 ~ 64.8V
		Protection type : Shut down o/p voltage, re-power on to recover
Working Temp.		-30 ~ +70℃ (Refer to "Derating Curve")
Working Humidity		20 ~ 90% RH non-condensing
Storage Temp., Humidity		-40 ~ +85℃, 10 ~ 95% RH non-condensing
Temp. Coefficient		±0.03%/℃ (0 ~ 50℃) RH non-condensing
Vibration		10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
Operating Altitude		2000 meters
Withstand Voltage		I/P-O/P:4KVAC
Isolation Resistance		I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
Dimension		709054.5mm (WHD)
Packing		48pcs/13.74Kg/0.96CUFT
NOTE		1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μf & 47μf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. Harmonic current test at 90% load
