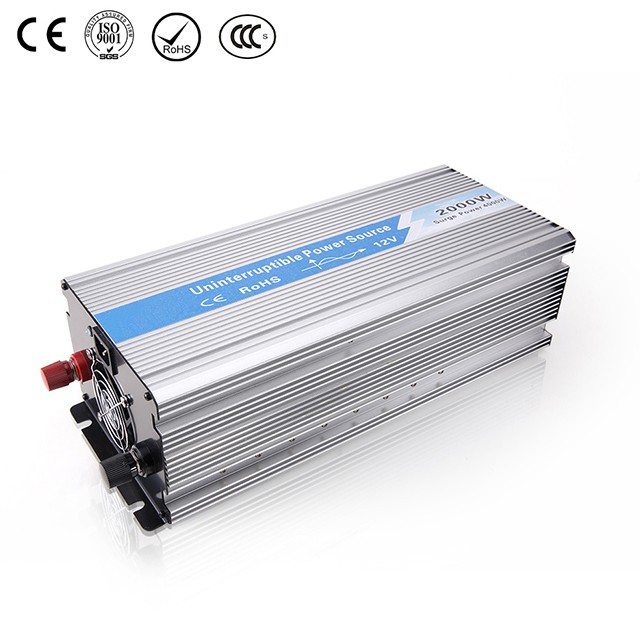

OPIP-2000C | ||||
| ||||
Pure Sine Wave Inverter | ||||
Rated Power: | 2000W | Frequency: | 50Hz / 60Hz | |
Peak Power: | 4000W | Unit Size: | 410*170*120mm | |
Waveform: | Pure Sine Wave | Unit Weight / G.W.: | 5880g / 7160g | |
DC Input Voltage: | 12V / 24V | Box Size: | 530*360*465mm | |
AC output Voltage: | 110V / 220V | Quantity/CTN: | 2PCS | |
Technical parameters | |||||||
Model | OPIP-2000C-1 | OPIP-2000C-1 | OPIP-2000C-1 | OPIP-2000C-2 | OPIP-2000C-2 | OPIP-2000C-2 | |
Rated power | 2000W | ||||||
Peak power | 4000W | ||||||
Input voltage | DC12V | DC24V | DC48V | DC12V | DC24V | DC48V | |
Output voltage | 100VAC or 110VAC or 120VAC±5% | 220VAC or 230VAC or 240VAC±5% | |||||
Unload current less than | 0.8A | 0.5A | 0.2A | 0.8A | 0.5A | 0.2A | |
Charging current | 20A | 10A | / | 20A | 10A | / | |
Output frequency | 50Hz±0.5Hz or 60Hz±0.5Hz | ||||||
Output waveform | Pure Sine Wave | ||||||
Waveform distortion | THD<3%(Linear load) | ||||||
USB port | 5V 1A | ||||||
Max.efficiency | 90% | ||||||
Input voltage range | 10-15.5V | 20-31V | 40-61V | 10-15.5V | 20-31V | 40-61V | |
Low voltage alarm | 10.5±0.5V | 21±0.5V | 42±1V | 10.5±0.5V | 21±0.5V | 42±1V | |
Low voltage protection | 10±0.5V | 20±0.5V | 40±15V | 10±0.5V | 20±0.5V | 40±15V | |
Over voltage protection | 15.5±0.5V | 31±0.5V | 61±1V | 15.5±0.5V | 31±0.5V | 61±1V | |
Low voltage recover | 13±0.5V | 24±0.5V | 48±1V | 13±0.5V | 24±0.5V | 48±1V | |
Over voltage recover | 14.8V±0.5V | 29.5V±0.5V | 59V±1V | 14.8V±0.5V | 29.5V±0.5V | 59V±1V | |
Protection function | Low voltage | Alarm at first, voltage continously reduce. LED Red light on & shut sown. | |||||
Over voltage | LED Red light on, shut down | ||||||
Over load | LED Red light on, shut down | ||||||
Over temperature | Alarm at first, tempurature continously rise.LED Red light on & shut sown | ||||||
Short circuit | LED Red light on | ||||||
Input reverse polarity | Fuse burn-out | ||||||
Working temperature | -10°- +50° | ||||||
Storage temperature | -30°- +70° | ||||||
Dimension(mm) | 410×170×120mm | ||||||
Packing(mm) | 510×210×180mm | ||||||
Net./gross weight(g) | 5880/7160g | ||||||
QTY/Ctn | 4 Pcs | ||||||
Meas./Ctn(mm) | 530×360×465mm | ||||||
Gross weight/Ctn(g) | 19000g | ||||||
Warranty | 2 years | ||||||
Configuration | Standard | ||||||
Cooling method | Intelligent air cooling | ||||||
Note | Our products update constantly.The technical parameter is for reference only.Please refer to our real product. | ||||||
