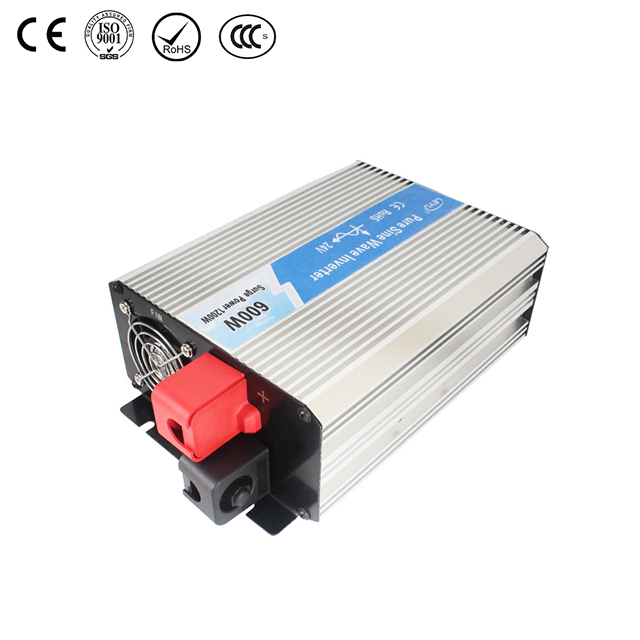

OPIP-600 High Efficiency Pure Sine Wave Inverter | 24V DC to AC

Model:
OPIP Series Pure Sine Wave Inverter->OPIP-600
Brand:
LEYU

Availability:

Quantity:



Inquire Add to Basket

pure sine wave inverter for car 2000 watt pure sine wave inverter 5000W Pure Sine Power Inverter dc pure sine wave inverter Off-Grid Solar Power Inverter 5000W

Product Specifications

OPIP-600

Pure Sine Wave Inverter
Pure Sine Wave Inverter
Rated Power:	600W	Frequency:	50Hz / 60Hz
Peak Power:	1200W	Unit Size:	25015080mm
Waveform:	Pure Sine Wave	Unit Weight / G.W.:	1740g / 2020g
DC Input Voltage:	12V / 24V	Box Size:	490290300mm
AC output Voltage:	110V / 220V	Quantity/CTN:	6PCS

Technical parameters

Model		OPIP-0600-1	OPIP-0600-1			OPIP-0600-1		OPIP-0600-2	OPIP-0600-2	OPIP-0600-2
Rated power		600W
Peak power		1200W
Input voltage		DC12V		DC24V		DC48V		DC12V	DC24V	DC48V
Output voltage		100VAC or 110VAC or 120VAC±5%						220VAC or 230VAC or 240VAC±5%
Unload current less than		0.6A		0.4A	0.3A			0.6A	0.4A	0.3A
Output frequency		50Hz±0.5Hz or 60Hz±0.5Hz
Output waveform		Pure Sine Wave
	Waveform distortion	THD<3%(Linear load)
	USB port	5V 1A
	Max.efficiency	90%
	Input voltage range	10-15.5V		20-31V			40-61V	10-15.5V	20-31V	40-61V
	Low voltage alarm	10.5±0.5V		21±0.5V			42±1V	10.5±0.5V	21±0.5V	42±1V
	Low voltage protection	10±0.5V		20±0.5V			40±15V	10±0.5V	20±0.5V	40±15V
	Over voltage protection	15.5±0.5V		31±0.5V			61±1V	15.5±0.5V	31±0.5V	61±1V
	Low voltage recover	13±0.5V		24±0.5V			48±1V	13±0.5V	24±0.5V	48±1V
	Over voltage recover	14.8V±0.5V		29.5V±0.5V			59V±1V	14.8V±0.5V	29.5V±0.5V	59V±1V
	Protection function	Low voltage					Alarm at first, voltage continously reduce. LED Red light on & shut sown.
		Over voltage					LED Red light on, shut down
		Over load					LED Red light on, shut down
		Over temperature					Alarm at first, tempurature continously rise.LED Red light on & shut sown
		Short circuit					LED Red light on
		Input reverse polarity					Fuse burn-out
	Working temperature	-10°- +50°
	Storage temperature	-30°- +70°
	Dimension(mm)	250x150x80mm
	Packing(mm)	280x195x100mm
	Net./gross weight(g)	1740/2020g
	QTY/Ctn	6 Pcs
	Meas./Ctn(mm)	490x290x300mm
	Gross weight/Ctn(g)	14kg
	Warranty	2 years
	Configuration	Standard
	Cooling method	Intelligent air cooling
	Note	Our products update constantly.The technical parameter is for reference only.Please refer to our real product.
