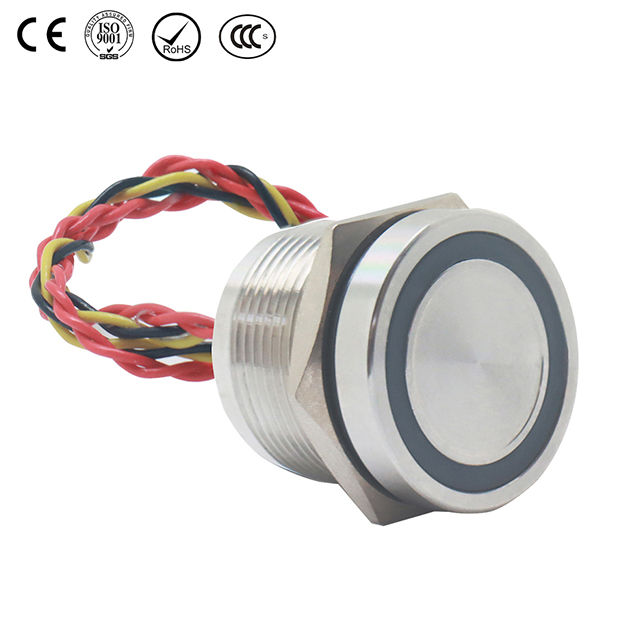

ZMPS-25A Piezo Switch

Features:
· A variety of styles to choose from:Flat/Chamfer/Concave
· Glued Package IP68 waterproof pure copper wire,good conductivity
. Waterproof,dustproof,flame retardant head waterproof and dustproof flame retardant plastic parts
· LED high light wicks,LED life can reach 30,000 hours bright color,soft bright,long life
• The LED indicators are available in a variety of colors

Model:
ZMPS-25A Piezo Switch
Brand:
LEYU

Availability:

Quantity:



Inquire Add to Basket

piezo wireless wall switch piezoelectric light switch state switched piezoelectric switch piezo switch circuit piezo switch

Product Description

Product Name	IP68 Waterproof Piezo Switch
Model	ZMPS25A-H1OM		ZMPS25A-H10M/D	ZMPS25A-D10M/R
Mounting Hole Size	25mm
Operation Types	Momentary (Reset)
Switch Combination	1NO
Actuator Shape	Flat/Chamfer/Concave/High Flat
Terminal type	Wired lead
Illuminated or not	Yes or NO
Led Voltage	3-24V
Led Color	Blue (Red,Green, Yellow,White,Orange,Purple available)
Illuminated Type	Ring/Dot
Enclosure Material	Stainless Steel/ Aluminum
Rated Current	2A
Contact Resistance	50 mn max
Operating Force	6 to 15N
Dielectric Intensity	2000VAC
Operating Temperature	-40°C to +75°C
Accessories	Nut, Rubber Waterproof O-ring
Customized symbol,colored housing or Connector		Acceptable and with fast shipping
Choose 2/3 colors from two-color/three-color light combination (above colors)
