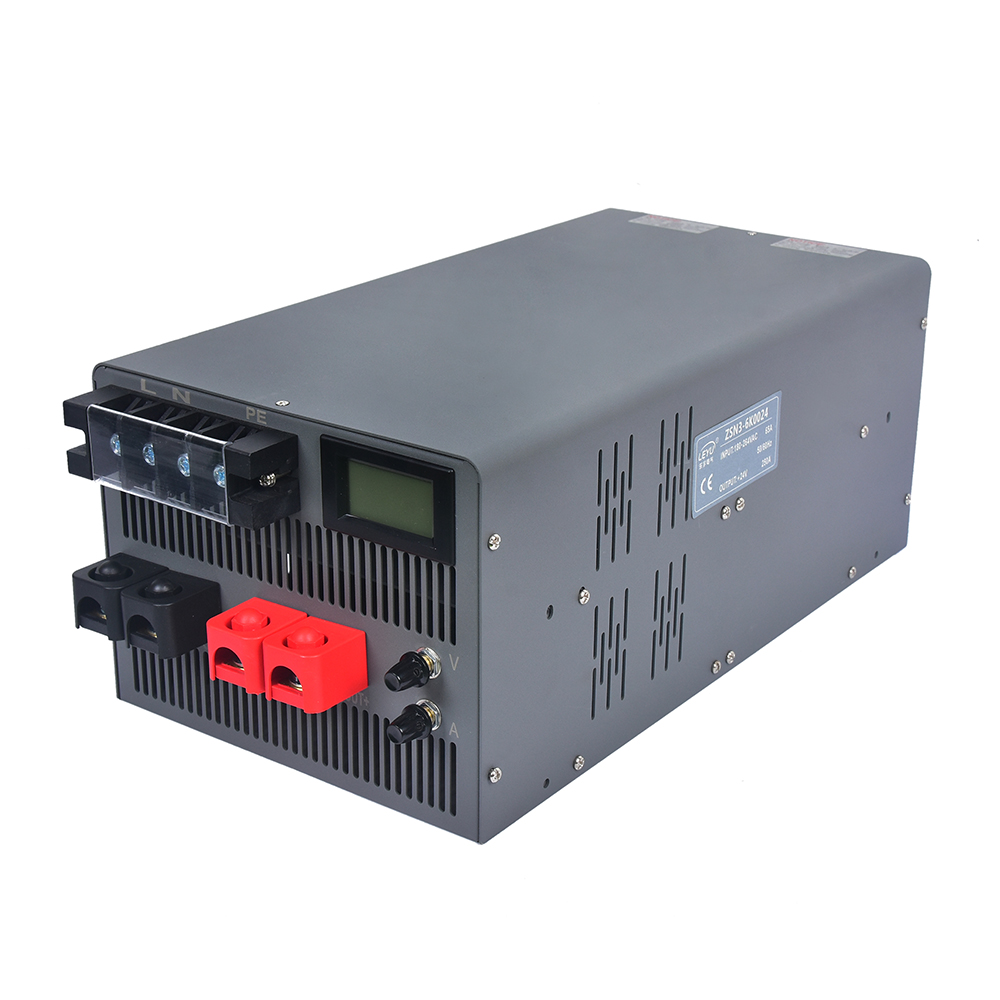

ZSN3-6K0 High Power Power Supply

1. All parameters are measured at 230VAC input, rated load and 25°C unless otherwise specified.

2. RIPPLE AND NOISE VOLTAGES ARE MEASURED AT 20UMHz bandwidth oscilloscope with 0.1 μ and 47 μ capacitance at the end of a 12-inch twisted pair cable, measured at 20MHZ bandwidth.

3. Accuracy: including setting error, linear regulation and load regulation.

4. If the input voltage is low, the output needs to be derated, please refer to the static characteristic curve for details.

5. The start-up time is measured when the machine is cool-in, and frequent switching on and off may increase the start-up time.

Model:
ZSN3-6K0 High Power Power Supply
Brand:
LEYU

Availability:

Quantity:



Inquire Add to Basket

dc power supply high voltage power supply high power dc high power supply high voltage switching power supply high power power supply

Product Description

ZSN3-6K0 智能工业电源

Model			ZSN3-6K0-24	ZSN3-6K0-36	ZSN3-6K0-48	ZSN3-6K0-72	ZSN3-6K0-96	ZSN3-6K0-110	ZSN3-6K0-150	ZSN3-6K0-220
OUTPUT		DC Voltage	24V	36V	48V	72V	96V	110V	150V	220V
Rated Current	225A	150A	112.5A	75A	57A	49A	36A	25A
Current Range	0 - 225A	0 - 150A	0 - 112.5A	0 - 75A	0 - 57A	0 - 49A	0 - 36A	0 - 25A
Rated Power	5000W
Ripple	380mV	450mV	500mV	500mV	600mV	850mV	900mV	1000mV
Optimal Range of Constant Current	12 - 24V	18 - 36V	24 - 48V	36 - 72V	48 - 96V	55 - 110V	75 - 150V	110 - 220V
voltage accuracy	± 1.0%
linear adjustment rate	± 1.0%
load regulation	± 1.0%
Setup, Rise, Hold Up Time	1500mS，100mS/230VAC(at full load）
INPUT	Voltage Range		180 - 264VAC / 245 - 370VDC
	Frequency Range		45Hz - 65Hz
	power factor		PF≧0.6/230VAC(at full load)
	Efficiency		86 %	87 %	89 %	90 %	90 %	90 %	91 %	91 %
	AC Current		＜ 53A
	Leakage Current		＜ 3.0mA / 240VAC
PROTECTION	short circuit		Enter a constant current
PROTECTION	Over Temp		The output is turned off, and it automatically resumes or restarts when the temperature drops

FUNCTION	output voltage adjustment	0 - 26.4V	0 - 39.6V	0 - 52.8V	0 - 79.2V	0 - 105.6V	0 - 121V	0 - 165V	0 - 242V
	constant current output adjustment	0 - 225A	0 - 150A	0 - 112.5A	0 - 75A	0 - 75A	0 - 49A	0 - 36A	0 - 25A
	External potentiometer	External potentiometer control (voltage, current) can be customized
	voltage current adjustable	Through the knob
	Analog voltage control	Voltage, current (customizable)
	remote control switch	Default power on, high level shutdown (3V-12V) can be customized
ENVIRONMENT	Working Temp	-20 - +60℃
	Working Humidity	-20 - 90% RH No condensation
	Storage Temp., Humidity	-40 - +85℃, 10 - 95% RH No condensation
	vibration resistance	10 - 500Hz, 2G 10 min/cycle, 60 minutes each in X, Y, and Z axes
SAFETY	Insulation resistance	Input-to-output:100Mhms/500VDC/25℃/70%RH
	Withstand Voltage	I/P-O/P :1.2KVAC I/P-FG:1.2KVAC O/P-FG:0.5KVAC
OTHERS	Dimension	340.5188.8148.2mm（LWH）
	Weight	5 KG
REMARK	1. All parameters are measured at 230VAC input, rated load and 25°C unless otherwise specified. 2. RIPPLE AND NOISE VOLTAGES ARE MEASURED AT 20UMHz bandwidth oscilloscope with 0.1 μ and 47 μ capacitance at the end of a 12-inch twisted pair cable, measured at 20MHZ bandwidth. 3. Accuracy: including setting error, linear regulation and load regulation. 4. If the input voltage is low, the output needs to be derated, please refer to the static characteristic curve for details. 5. The start-up time is measured when the machine is cool-in, and frequent switching on and off may increase the start-up time.
