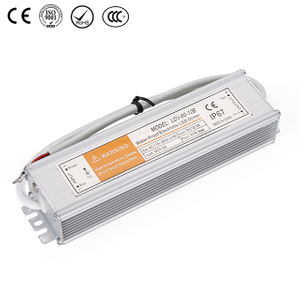

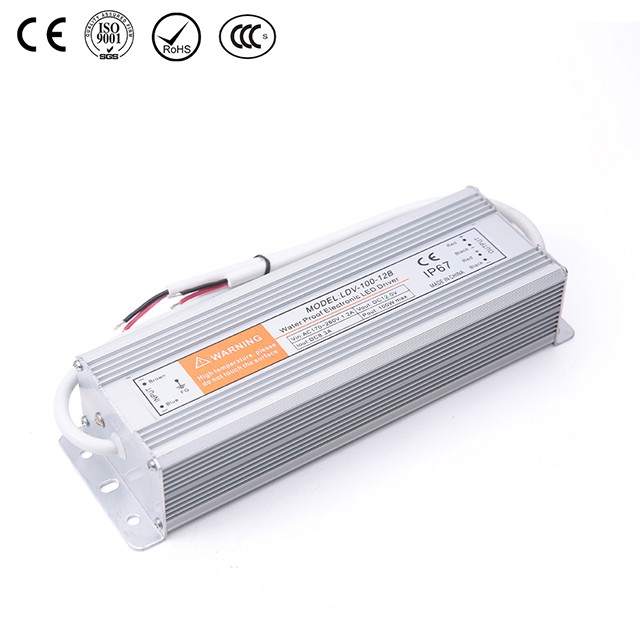

LDV-100 IP67 Waterproof Power Supply | AC/DC Converter for Outdoor & Industrial Use

Features:
High efficiency, High reliability, Low cost
Protections: Short circuit/Over load/Over voltage/High temperature
Waterproof grade: IP67
Suitable for LED lighten and moving sign applications.
2 years warranty

Model:
LDV Series Waterproof Power Supply->LDV-100
Brand:
LEYU

Availability:

Quantity:



Inquire Add to Basket

Waterproof vs Weatherproof Power Supply Differences Durable Waterproof Power Supply for Marine Use Industrial NEMA 4X Power Supply Compact Waterproof AC/DC Supply Waterproof Emergency Power Source

Product Specifications

SPECIFICATION
OUTPUT
Model	LDV-100-12		LDV-100-24
DC Voltage	12V		24V
Rated Current	8.3A		4.2A
Current Range	0-8.3A		0-4.2A
Rated Power	100W		100W
Ripple & Noise	120mVp-p		120mVp-p
Voltage Adj. Range	±10%		±10%
Voltage Tolerance	±1%		±1%
Inlet Stability	±0.5%		±0.5%
Load Stability	±0.5%		±0.5%
Setup, Rise, Hold Up Time	800s,50ms,10ms/115VAC 300ms,50ms,80ms/230VAC

INPUT
Voltage Range	176~264VAC
AC Current	2A/115V 1A/230V
Efficiency	76%	79%
Inrush Current	Cold-start current 30A/115V 60A/230V

PROTECTION
Over Load	105%~150%
	Plusing hiccup shutdown Reset: auto recovery

ENVIRONMENT
Working Temp., Humidity	-10℃~+60℃(Refer to output derating curve),20%~90%RH
Storage Temp., Humidity	-20℃~+85℃, 10%~95%RH
Temp. Coefficient	±0.03%/℃(0-50℃)
Vibration	10-500Hz,2G 10min,/1cycle,Period for 60min,Each axes

SAFETY
Withstand Voltage	I/P-O/P: 3KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC
Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC

STANDARD
Safety Standard	UL1012TUV EN60950(IEC950,UL1950)、IP67
EMC Standard	CLSPR22(EN55022),IEC801-2,3,4,IEC555-2 Verification

OTHERS
Dimension	2206710mm(LWH)
Weight	1.3Kg
