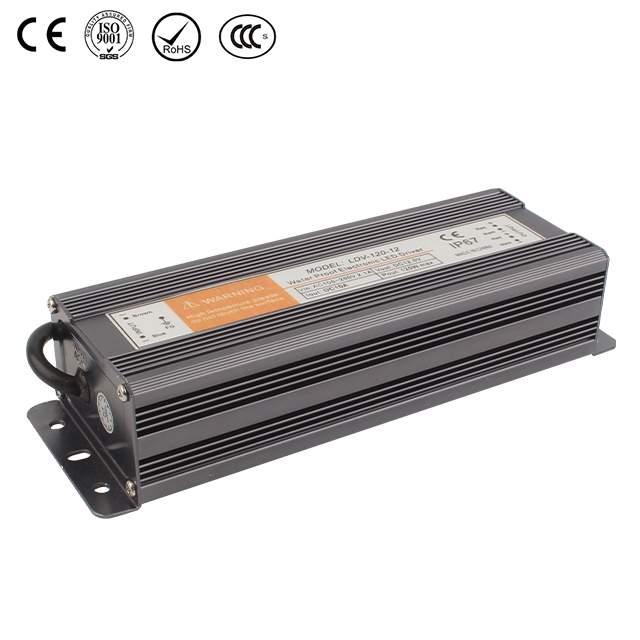

LDV Series Waterproof Power Supply->LDV-120
LEYU
Availability: | |
---|---|
Quantity: | |
SPECIFICATION | |||
OUTPUT | |||
Model | LDV-120-12 | LDV-120-24 | LDV-120-36 |
DC Voltage | 12V | 24V | 36V |
Rated Current | 10A | 5A | 3.3A |
Current Range | 0-10A | 0-5A | 0-3.3A |
Rated Power | 120W | 120W | 119W |
Ripple & Noise | 100mVp-p | 150mVp-p | 150mVp-p |
Voltage Tolerance | ±1% | ±1% | ±1% |
Inlet Stability | ±0.5% | ±0.5% | ±0.5% |
Load Stability | ±0.5% | ±0.5% | ±0.5% |
Setup, Rise, Hold Up Time | 80ms,36ms,20ms/230VAC | ||
INPUT | |||
Voltage Range | 180~264 VAC 47~63Hz;255~373VDC | ||
AC Current | 1.5A/230VAC | ||
Efficiency | 82% | 84% | 85% |
Inrush Current | Cold-start current 40A/230VAC | ||
PROTECTION | |||
Over Load | 105%~135% | ||
Protection:Hiccup mode, recovers automatically after fault condition is removed | |||
ENVIRONMENT | |||
Working Temp., Humidity | -10℃~+60℃,20%~90%RH | ||
Storage Temp., Humidity | -20℃~+85℃, 10%~95%RH | ||
Temp. Coefficient | ±0.03%/℃(0-50℃) | ||
Vibration | 10-500Hz,2G 10min,/1cycle,Period for 60min,Each axes | ||
SAFETY | |||
Withstand Voltage | I/P-O/P: 3KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC | ||
Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC | ||
STANDARD | |||
Safety Standard | EN61347-1 EN61347-2-13 IP67 | ||
EMC Standard | EN55015 EN61547 EN61000-3.4 CLASSB | ||
OTHERS | |||
Dimension | 215*69*43(L*W*H) | ||
Weight | 1.3Kg |
Download:LDV-120.doc
In today's world, where electronic devices are used in a wide range of environments, having a reliable waterproof power supply is crucial. The LDV-120 Waterproof Power Supply is here to meet all your power needs, whether it's for indoor or outdoor applications.
The LDV-120 is IP67 waterproof, which means it offers excellent protection against dust and water. It can withstand being submerged in water for a certain period, making it perfect for outdoor LED lighting projects, security cameras, and other electrical devices that are exposed to harsh weather conditions. This high level of waterproofing ensures that your devices keep running smoothly, without any disruptions due to water damage.
This power supply also features AC to DC conversion capabilities. It efficiently converts alternating current (AC) from the main power source to direct current (DC), which is required by most electronic devices. This AC to DC conversion process is not only efficient but also helps in reducing energy consumption, making it an environmentally friendly choice.
One of the key advantages of the LDV-120 Waterproof Power Supply is its versatility. It is a part of the larger category of power supplies, and its design allows it to be used in multiple scenarios. It can be used to power a variety of supplies waterproof applications, from small LED strips to larger electrical equipment.
The LDV-120 comes with a range of safety features. It is protected against short circuits, overloads, overvoltage, and overtemperature. This ensures that the power supply and the connected devices are safe from potential damage. For example, in case of a sudden increase in voltage, the overvoltage protection kicks in to prevent any harm to the connected devices.
In terms of performance, the LDV-120 offers a stable power output. It provides consistent voltage to the connected devices, which helps in preserving the lifespan of the devices. Whether you are using it for a long-term project or a short-term application, you can rely on the LDV-120 to deliver reliable power.
When it comes to installation, the LDV-120 is designed for ease of use. It has a simple plug-and-play connection, allowing you to quickly set it up and start using it. Additionally, it has a wide working temperature range, from [specific low temperature] to [specific high temperature], enabling it to be used in various industrial and outdoor environments.
In conclusion, the LDV-120 Waterproof Power Supply is a top-of-the-line product that combines reliability, performance, and versatility. With its IP67 waterproof rating, AC to DC conversion capabilities, and advanced safety features, it is the ideal choice for anyone in need of a waterproof power supply. Whether you are a professional installer or a DIY enthusiast, the LDV-120 is sure to meet and exceed your expectations. So, don't compromise on the power supply for your valuable electronic devices. Choose the LDV-120 Waterproof Power Supply and enjoy seamless power supply in any environment.
