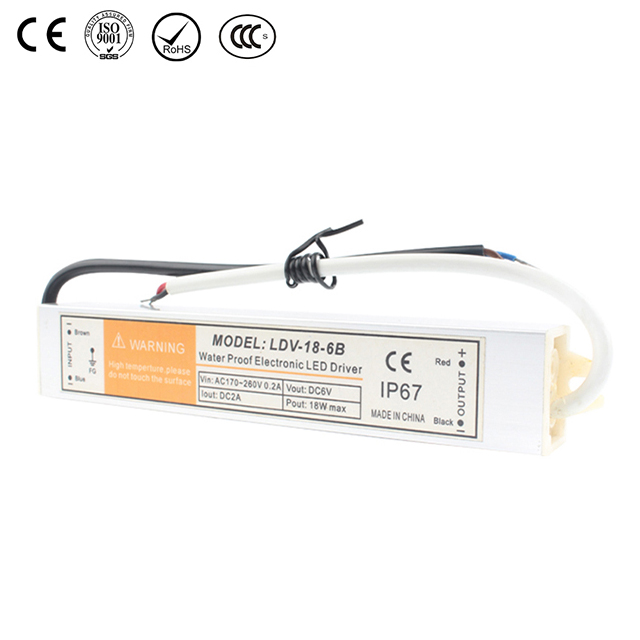

LDV-18 Waterproof Power Supply: Compact & Rugged for Extreme Conditions

OUTPUT

Model

LDV-18-12

LDV-18-24

DC Voltage

12V

24V

Rated Current

1.5A

0.75A

Current Range

0-1.5A

0-0.75A

Rated Power

18W

18W

Ripple & Noise

100mVp-p

100mVp-p

Voltage Adj. Range

±10%

±10%

Voltage Tolerance

±1%

±1%

Inlet Stability

±0.5%

±0.5%

Load Stability

±0.5%

±0.5%

Setup, Rise, Hold Up Time

800ms,50ms,10ms/115VAC     300ms,50ms,80ms/230VAC

INPUT

Voltage Range

176~264VAC     47~63Hz

AC Current

0.7A/115V   0.3A/230V

Efficiency

76%/115VAC

80%/115VAC

Inrush Current

Cold-start current 15A/115V   30A/230V

Leakage Current

<0.75mA/240VAC

PROTECTION

Over Load

105%~150%

Protection type: plusing hiccup shutdown Reset:auto   recovery

ENVIRONMENT

Working Temp., Humidity

-10℃~+60℃(Refer to output derating curve),20%~90%RH

Storage Temp., Humidity

-20℃~+85℃, 10%~95%RH

Temp. Coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz,2G 10min,/1cycle,Period for 60min,Each axes

SAFETY

Withstand Voltage

I/P-O/P: 1.5KVAC     I/P-FG: 1.5KVAC   O/P-FG:   0.5KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC

STANDARD

Safety Standard

ApprovedIP67

EMC Standard

CLSPR22(EN55022),IEC801-2,3,4,IEC555-2 Verification

OTHERS

Dimension

161*28*19mm(L*W*H)

Weight

0.2Kg
