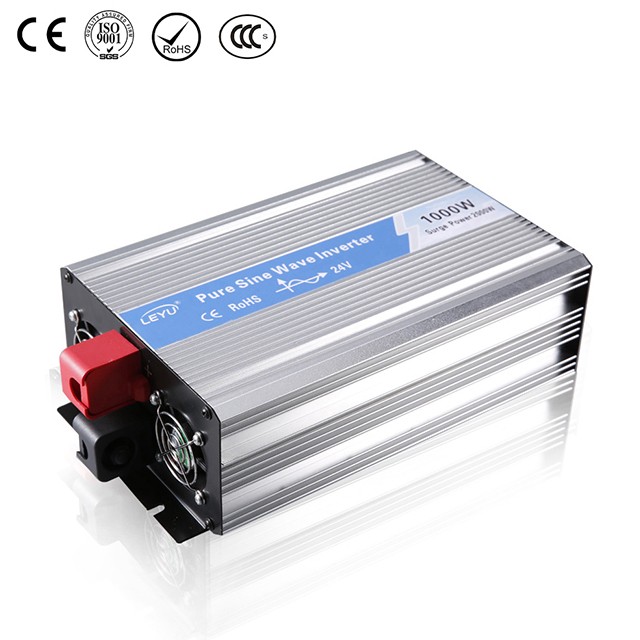

OPIP-1000 | ||||
| ||||
Pure Sine Wave Inverter | ||||
Rated Power: | 1000W | Frequency: | 50Hz / 60Hz | |
Peak Power: | 2000W | Unit Size: | 310*165*90mm | |
Waveform: | Pure Sine Wave | Unit Weight / G.W.: | 2820g / 3260g | |
DC Input Voltage: | 12V / 24V | Box Size: | 440*350*330mm | |
AC output Voltage: | 110V / 220V | Quantity/CTN: | 6PCS | |
Technical parameters | ||||||||||||
Model | OPIP-1K-1 | OPIP-1K-1 | OPIP-1K-1 | OPIP-1K-2 | OPIP-1K-2 | OPIP-1K-2 | ||||||
Rated power | 1000W | |||||||||||
Peak power | 2000W | |||||||||||
Input voltage | DC12V | DC24V | DC48V | DC12V | DC24V | DC48V | ||||||
Output voltage | 100VAC or 110VAC or 120VAC±5% | 220VAC or 230VAC or 240VAC±5% | ||||||||||
Unload current less than | 0.8A | 0.5A | 0.3A | 0.8A | 0.5A | 0.3A | ||||||
Output frequency | 50Hz±0.5Hz or 60Hz±0.5Hz | |||||||||||
Output waveform | Pure Sine Wave | |||||||||||
Waveform distortion | THD<3%(Linear load) | |||||||||||
USB port | 5V 1A | |||||||||||
Max.efficiency | 90% | |||||||||||
Input voltage range | 10-15.5V | 20-31V | 40-61V | 10-15.5V | 20-31V | 40-61V | ||||||
Low voltage alarm | 10.5±0.5V | 21±0.5V | 42±1V | 10.5±0.5V | 21±0.5V | 42±1V | ||||||
Low voltage protection | 10±0.5V | 20±0.5V | 40±15V | 10±0.5V | 20±0.5V | 40±15V | ||||||
Over voltage protection | 15.5±0.5V | 31±0.5V | 61±1V | 15.5±0.5V | 31±0.5V | 61±1V | ||||||
Low voltage recover | 13±0.5V | 24±0.5V | 48±1V | 13±0.5V | 24±0.5V | 48±1V | ||||||
Over voltage recover | 14.8V±0.5V | 29.5V±0.5V | 59V±1V | 14.8V±0.5V | 29.5V±0.5V | 59V±1V | ||||||
Protection function | Low voltage | Alarm at first, voltage continously reduce. LED Red light on & shut sown. | ||||||||||
Over voltage | LED Red light on, shut down | |||||||||||
Over load | LED Red light on, shut down | |||||||||||
Over temperature | Alarm at first, tempurature continously rise.LED Red light on & shut sown | |||||||||||
Short circuit | LED Red light on | |||||||||||
Input reverse polarity | Fuse burn-out | |||||||||||
Working temperature | -10°- +50° | |||||||||||
Storage temperature | -30°- +70° | |||||||||||
Dimension(mm) | 310x165x90mm | |||||||||||
Packing(mm) | 330x215x105mm | |||||||||||
Net./gross weight(g) | 2820/3260g | |||||||||||
QTY/Ctn | 6 Pcs | |||||||||||
Meas./Ctn(mm) | 440x350x330mm | |||||||||||
Gross weight/Ctn(g) | 3260g | |||||||||||
Warranty | 1 years | |||||||||||
Configuration | Standard | |||||||||||
Cooling method | Intelligent air cooling | |||||||||||
Note | Our products update constantly.The technical parameter is for reference only.Please refer to our real product. | |||||||||||
