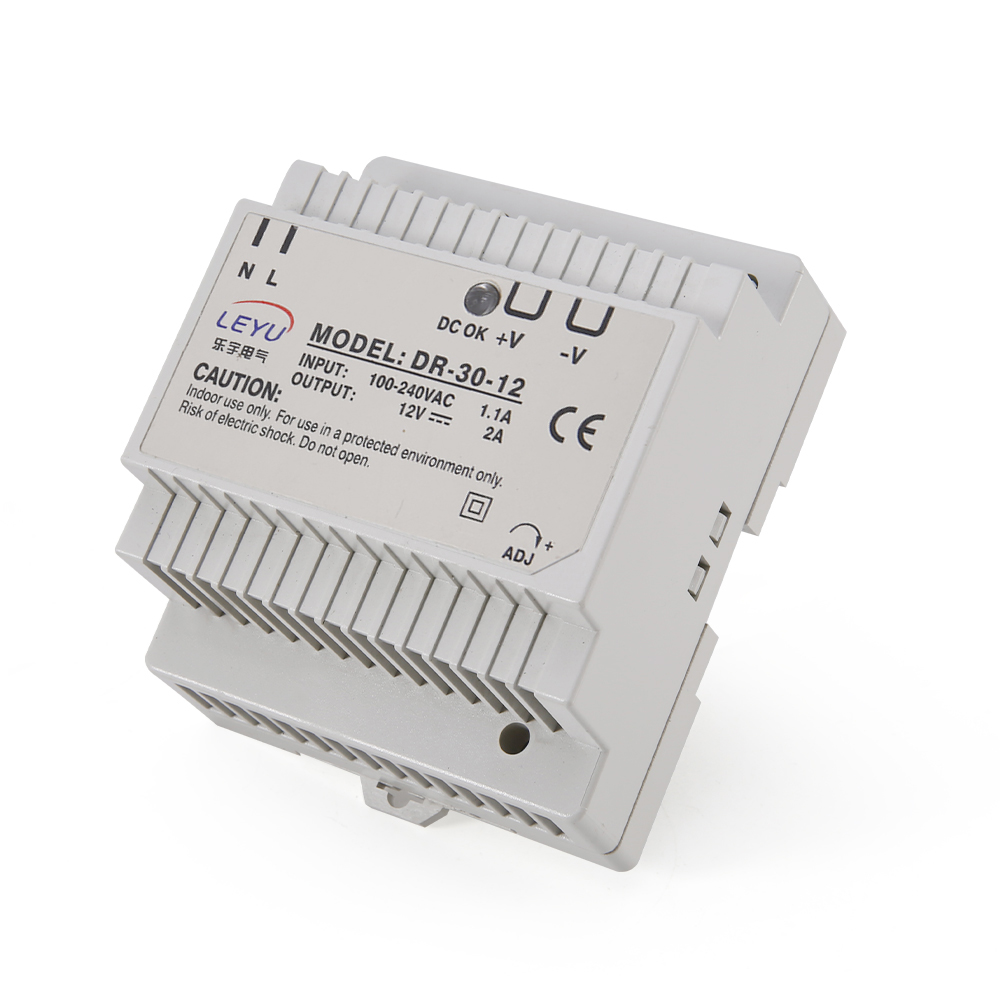

30W Single Output Industrial DIN Rail Power Supply DR-30 series
SPECIFICATIONS | ||||
OUTPUT | ||||
Model | DR-30-5 | DR-30-12 | DR-30-15 | DR-30-24 |
DC Voltage | 5V | 12V | 15V | 24V |
Rated Current | 3A | 2A | 2A | 1.5A |
Current Range | 0-3A | 0-2.5A | 0-2A | 0-1.5A |
Rated Power | 15W | 24W | 30W | 36W |
Ripple & Noise | 80mVp-p | 120mVp-p | 120mVp-p | 150mVp-p |
Voltage Adj. Range | 4.75-5.5V | 10.8-13.2V | 13.5-16.5V | 21.6-26.4V |
Voltage Tolerance | ±2% | ±1% | ±1% | ±1% |
Line regulation | ±1% | ±1% | ±1% | ±1% |
Load regulation | ±1% | ±1% | ±1% | ±1% |
Setup, Rise, Hold Up Time | 100ms,30ms/230VAC 100ms,30ms/115VAC at full load 100ms/230VAC 21ms/115VAC at full load | |||
INPUT | ||||
Voltage Range | 85~264VAC 47~63Hz; 120~370VDC | |||
AC Current | 0.88A/115V 0.48A/230V | |||
Efficiency | 74% | 81% | 82% | 83% |
Inrush Current | Cold start 15A/115V 30A/230V | |||
PROTECTION | ||||
Over Load | 105%~160% rated output power | |||
Protection type: Constant current limiting, recovers automatically after fault condition is removed | ||||
Over Voltage | 5.75-6.75V | 13.8-16.2V | 17.25-20.25V | 27.6-32.4V |
Protection type: Shut down o/p voltage, re-power on to recover | ||||
ENVIRONMENT | ||||
Working Temp., Humidity | -20℃~+60℃; 20%~90% RH non-condensing | |||
Storage Temp., Humidity | -40℃~+85℃; 10%~95%RH | |||
Temp. Coefficient | ±0.03%/℃(0~50℃) | |||
Vibration | 10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 | |||
SAFETY | ||||
Withstand Voltage | I/P-O/P: 3KVAC | |||
Isolation Resistance | I/P-O/P: 100M Ohms / 500VDC/25℃/70% RH | |||
STANDARD | ||||
Safety Standard | Design refer to EN60950/UL60950 | |||
EMC Standard | Design refer to ENIEC 61558-1:2019/EN61558-2-16:2009+A1:2013 EN62368-1:2020+A11:2020 EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A2:2019+A14:2019/EN62233:2008 , heavy industry level, criteria A | |||
OTHERS | ||||
Dimension | 78*93*56mm(W*H*D) | |||
Weight | 0.27Kg | |||
Packing | 48pcs/14Kg/1.02CUFT | |||
NOTE | ||||
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation. 4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. | ||||
Downloads：
DR-30.doc
Industrial automation:
Provide stable power supply for PLC, sensors, actuators and other equipment.
Intelligent building control system:
Provide power support for various intelligent equipment, monitoring systems, etc.
Traffic control:
Equipment power supply in industries such as railways and electricity.
Robot system:
Provide power support for industrial robot control systems.
Measurement and detection equipment:
Provide stable power supply for measuring instruments and detection equipment.
In the medical field, reliable power supply is crucial for life-saving and diagnostic devices. The DR-30 Din Rail Power Supply is designed to provide stable and efficient power to a wide range of medical monitoring equipment. It ensures uninterrupted operation for bed monitoring devices, blood pressure monitors, electrocardiographs (ECGs), ventilators, and other critical medical instruments. With its compact 30W design, the DR-30 Power Supply offers a reliable and space-saving solution, ensuring that these devices function accurately and continuously, thereby supporting the highest standards of patient care.
For advanced medical diagnostic equipment such as CT scanners and MRI machines, the DR-30 Din Rail Power Supply plays a vital role in powering their control systems and imaging systems. These high-precision devices require a stable and efficient power source to ensure accurate diagnostic results and uninterrupted operation. The DR-30 Power Supply, with its robust design and compact form factor, provides a reliable power and energy distribution solution, helping medical facilities maintain the highest level of diagnostic accuracy and efficiency.
