SPECIFICATIONS | ||
OUTPUT | ||

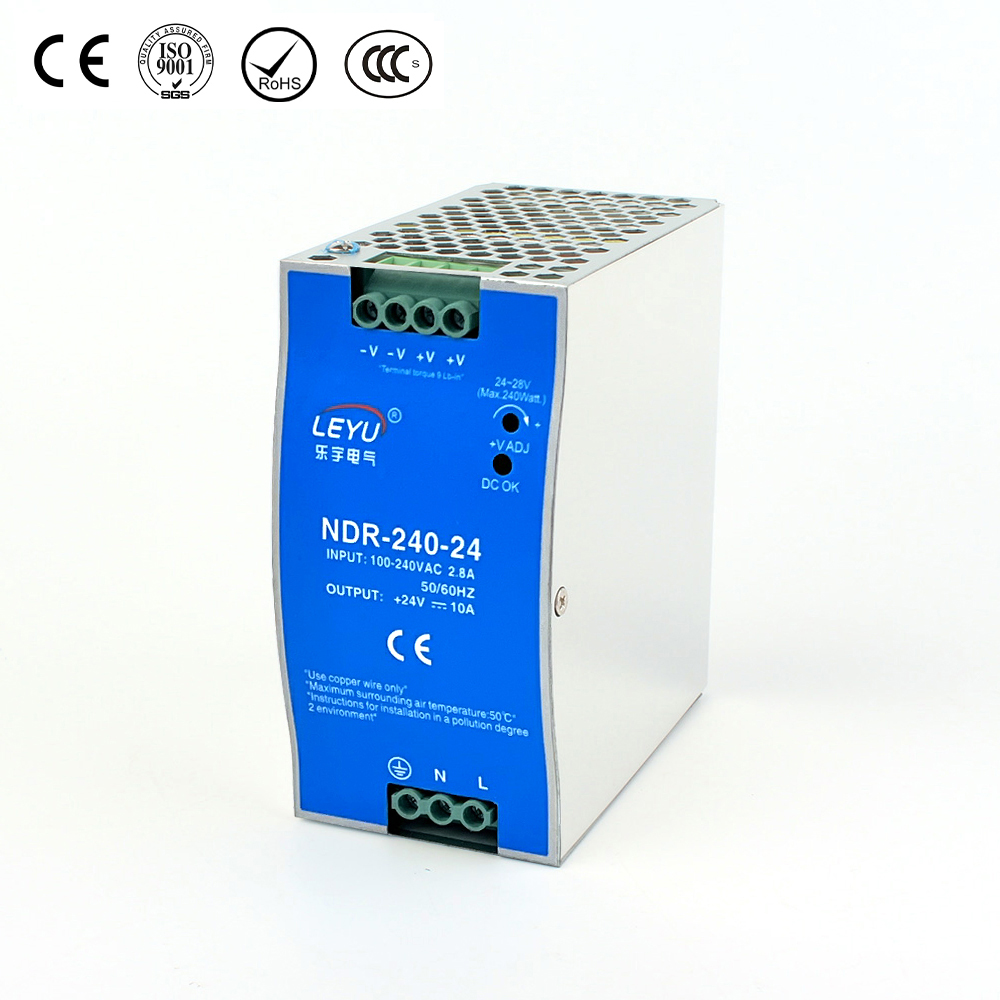

Model | NDR-240-24 | NDR-240-48 |
DC Voltage | 24V | 48V |
Rated Current | 10A | 5A |
Current Range | 0-10A | 0-5A |
Rated Power | 240W | 240W |
Ripple & Noise | 150mVp-p | 150mVp-p |
Voltage Adj. Range | 24-28V | 48-55V |
Voltage Tolerance | ±1% | ±1% |
Setup, Rise Time | 1500ms,100ms/230VAC 3000ms,100ms/115VAC at full load | |
Hold Up Time | 28ms/230VAC 22ms/115VAC at full load | |
INPUT | ||
Voltage Range | 90~264VAC 47~63Hz; 127~370VDC | |
AC Current | 2.5A/115V 1.3A/230V | |
Efficiency | 84% | 85% |
Inrush Current | Cold start 20A/115V 35A/230V | |
Leakage Current | <1mA/240VAC | |
PROTECTION | ||
Over Load | 105%~130% | |
Protection type: Constant current limiting, recovers automatically after fault condition is removed | ||
Over Voltage | 29-33V | 56-65V |
Protection type: Shut down o/p voltage, re-power on to recover | ||
Over Temp. | 100℃±5℃(TSW1) | |
Protection type: Shut down o/p voltage, recovers automatically after temperature goes down | ||
ENVIRONMENT | ||
Working Temp., Humidity | -10℃~+70℃; 20%~90%RH | |
Storage Temp., Humidity | -20℃~+85℃; 10%~95%RH | |
Vibration | 10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes | |
SAFETY | ||
Withstand Voltage | I/P-O/P: 3KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC | |
Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC | |
STANDARD | ||
Safety Standard | Design refer to UL508,UL60950-1, TUV EN60950-1 | |
EMC Standard | EN55011,EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,ENV50204,EN55024,EN61000-6-2(EN50082-2) | |
OTHERS | ||
Dimension | 125.5*125.2*100mm(L*W*H) | |
Weight | 1.3Kg | |
Packing | 12pcs/15.5Kg/1.2CUFT | |
NOTE | ||
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor. 3 .Tolerance: includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. 5 . Derating may be needed under low input voltages. Please check the derating curve for more details. | ||
Downloads：
NDR-240.doc
Factory automation control
Industrial robot power supply
Intelligent building system
Monitoring system and security equipment
Elevator control system
Instrumentation equipment
We offer comprehensive consulting services to our customers, focusing on technical support related to the Reliable & Efficient NDR-240 Din Rail Power Supply. Our team of experts is dedicated to answering any questions customers may have during the usage process, helping them gain a deeper understanding and more effective utilization of this high-performance industrial power supply. Whether it's about installation, configuration, or troubleshooting, we are here to provide detailed guidance and solutions.
In addition to consulting services, we also provide remote assistance to help customers resolve common issues. Through remote control software or online guidance, our technicians can assist with software installation, configuration adjustments, and troubleshooting. This remote support not only saves time and resources but also ensures a seamless experience for customers using the NDR-240.
When the voltage regulation control circuit inside the power supply malfunctions, issues such as damaged or degraded components—including sampling resistors, error amplifiers, optocouplers, or power control chips—can occur. These faults may cause the output voltage to become excessively high or low.
The aging, failure, or reduced capacity of filter capacitors can increase the ripple component in the DC voltage output by the power supply. This may disrupt the normal operation of connected load equipment.
If the guide rail power supply's installation dimensions do not align with the equipment’s guide rail, or if it is improperly secured during installation, the power supply may not be firmly fixed. This can compromise both the safety and stability of the system.
