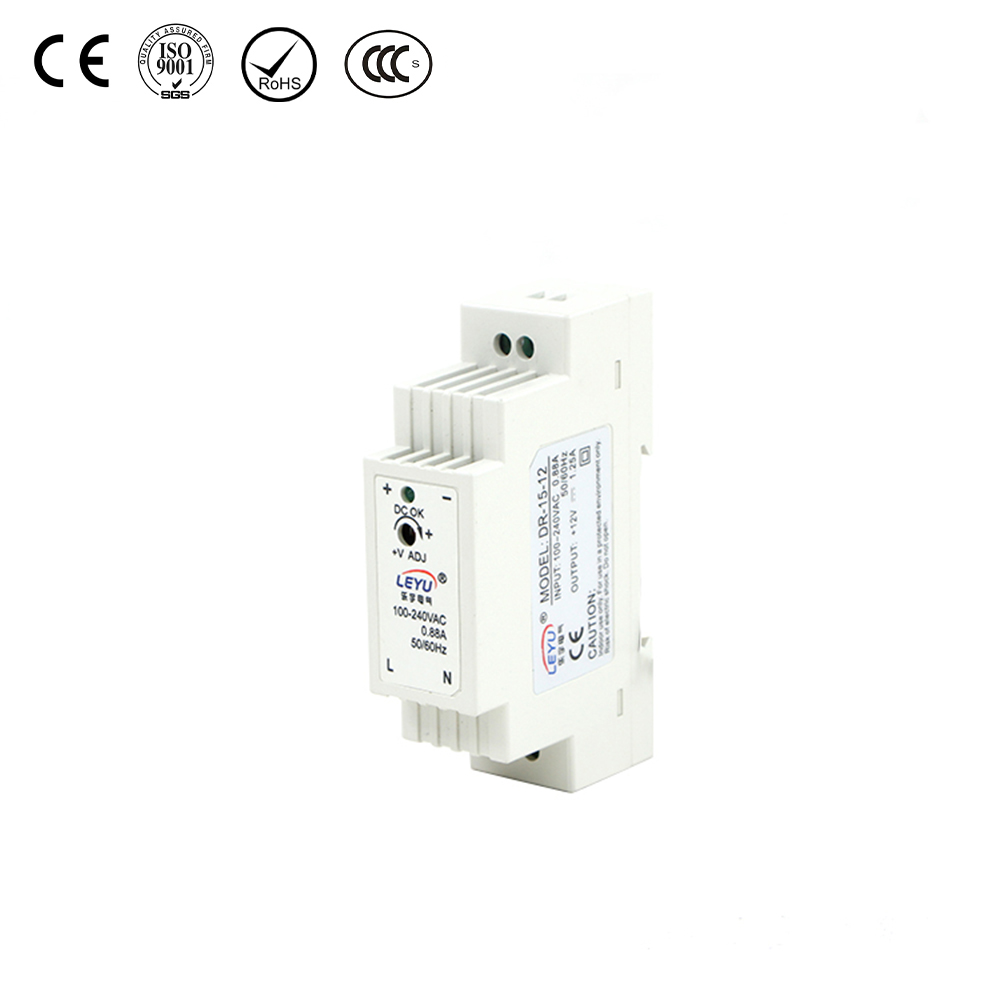

15W Single Output Industrial DIN Rail Power Supply DR-15 series
SPECIFICATIONS | ||||
OUTPUT | ||||
Model | DR-15-5 | DR15-12 | DR-15-15 | DR-15-24 |
DC Voltage | 5V | 12V | 15V | 24V |
Rated Current | 2.4A | 1.25A | 1A | 0.63A |
Current Range | 0-2.4A | 0-1.25A | 0-1A | 0-0.63A |
Rated Power | 12W | 15W | 15W | 15.2W |
Ripple & Noise | 80mVp-p | 120mVp-p | 120mVp-p | 150mVp-p |
Voltage Adj. Range | 4.75-5.5V | 10.8-13.2V | 13.5-16.5V | 21.6-26.4V |
Voltage Tolerance | ±2% | ±1% | ±1% | ±1% |
Line regulation | ±1% | ±1% | ±1% | ±1% |
Load regulation | ±1% | ±1% | ±1% | ±1% |
Setup, Rise, Hold Up Time | 1000ms, 50ms/230VAC 1000ms, 50ms/115VAC at full load 70ms/230VAC 16ms/115VAC at full load | |||
INPUT | ||||
Voltage Range | 85 ~ 264VAC 120 ~ 370VDC | |||
AC Current | 0.88A/115VAC 0.48A/230VAC | |||
Efficiency | 77% | 84% | 83.5% | 85% |
Inrush Current | COLD START 35A/115VAC 65A/230VAC | |||
PROTECTION | ||||
Over Load | 105%~160% rated output power | |||
Protection type: Constant current limiting, recovers automatically after fault condition is removed | ||||
Over Voltage | 5.75-6.75V | 13.8-16.2V | 17.25-20.25V | 27.6-32.4V |
Protection type: Shut off o/p voltage, clamping by zener diode | ||||
ENVIRONMENT | ||||
Working Temp., Humidity | -20℃~+60℃; 20%~90% RH non-condensing | |||
Storage Temp., Humidity | -40℃~+85℃; 10%~95%RH | |||
Temp. Coefficient | ±0.03%/℃(0~50℃) | |||
Vibration | 10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes, Mounting: Compliance to IE60068-2-6 | |||
SAFETY | ||||
Withstand Voltage | I/P-O/P: 3KVAC | |||
Isolation Resistance | I/P-O/P: 100M Ohms / 500VDC/ 25℃/ 70%RH | |||
STANDARD | ||||
Safety Standard | Design refer to EN60950/UL60950 | |||
EMC Standard | ENIEC 61558-1:2019/EN61558-2-16:2009+A1:2013 EN62368-1:2020+A11:2020 EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A2:2019+A14:2019/EN62233:2008 , heavy industry level, criteria A | |||
OTHERS | ||||
Dimension | 25*93*56mm(W*H*D) | |||
Weight | 0.1Kg | |||
Packing | 140pcs/15KG/0.92CUFT | |||
NOTE | ||||
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor. 3. Tolerance: includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into final equipment. The final equipment must be re-confirmed that it still meets EMC directives. | ||||
Downloads：
DR-15.doc
In the realm of industrial automation, the DR-15 Power Supply is a compact 15W solution specifically designed for industrial systems. It provides a stable power supply to PLCs (Programmable Logic Controllers), sensors, actuators, and other critical equipment. Whether deployed in complex production lines or precision automation systems, the DR-15 Power Supply ensures that devices maintain high efficiency and reliability over long-term operation. This enhances overall production efficiency, reduces equipment failure rates, and ensures the continuity of industrial processes.
For intelligent building control systems, the DR-15 Power Supply serves as a reliable power source for various intelligent devices and monitoring systems. It supports the seamless operation of smart lighting, HVAC (Heating, Ventilation, and Air Conditioning) controls, security systems, and other building automation components. By delivering a consistent and stable power supply, the DR-15 Power Supply helps maintain the reliability and efficiency of these systems, contributing to energy savings and enhanced building management.
In the field of traffic control, the DR-15 Power Supply is utilized to provide reliable power to equipment in industries such as railways and traffic management systems. It ensures that critical devices, such as traffic signals, surveillance cameras, and railway control systems, operate continuously and without interruption. This is crucial for maintaining traffic flow, ensuring safety, and supporting the efficient functioning of transportation infrastructure.
Measurement and detection equipment:
Provide stable power supply for measuring instruments and detection equipment.
Medical equipmentMedical equipment:
Medical monitoring equipment:
Provide stable power for bed monitoring equipment, blood pressure monitors, electrocardiographs, ventilators, etc.
Diagnostic equipment:
Medical diagnostic equipment such as CT and MRI usually use rail power supplies to power their control systems and imaging systems.Power and energy distribution systems.
Smart home systems:
Smart home controller: Power supply can provide power support for various sensors, lighting control, temperature control systems, etc. in smart homes.
Smart locks, smart doorbells: provide power support for smart access control, smart monitoring equipment, etc.
Consulting Services Purpose:
Provide customers with expert technical guidance to help them understand and maximize the benefits of Endpoint Detection and Response (EDR) products.
Key Responsibilities:
Deliver product-related technical consultations tailored to individual customer requirements. Address customer inquiries regarding the use and functionality of EDR products. Facilitate a deeper understanding of product features, enabling customers to utilize the software effectively and efficiently.
Remote Assistance Purpose:
Offer hands-on support to resolve technical challenges and ensure seamless product operation. Key Responsibilities: Provide assistance with software installation and setup through remote control tools or online guidance. Support customers in making configuration adjustments for optimized performance. Diagnose and troubleshoot common issues to resolve them promptly during usage.
Abnormal Output Voltage
A malfunction in the voltage regulation control circuit within the power supply can result in issues caused by damaged or degraded components, such as sampling resistors, error amplifiers, optocouplers, or power control chips. These faults may cause the output voltage to deviate significantly, either becoming excessively high or too low, which can negatively impact system performance.
Excessive Ripple
The aging, failure, or reduced capacity of filter capacitors can lead to an increase in the ripple component of the DC voltage output. This excessive ripple may disrupt the proper functioning of connected load equipment, thereby reducing reliability and performance.
Installation Issues
If the installation dimensions of the guide rail power supply are not compatible with the equipment’s guide rail, or if it is improperly secured during installation, the power supply may become unstable. Such misalignment can compromise both the safety and stability of the system.
