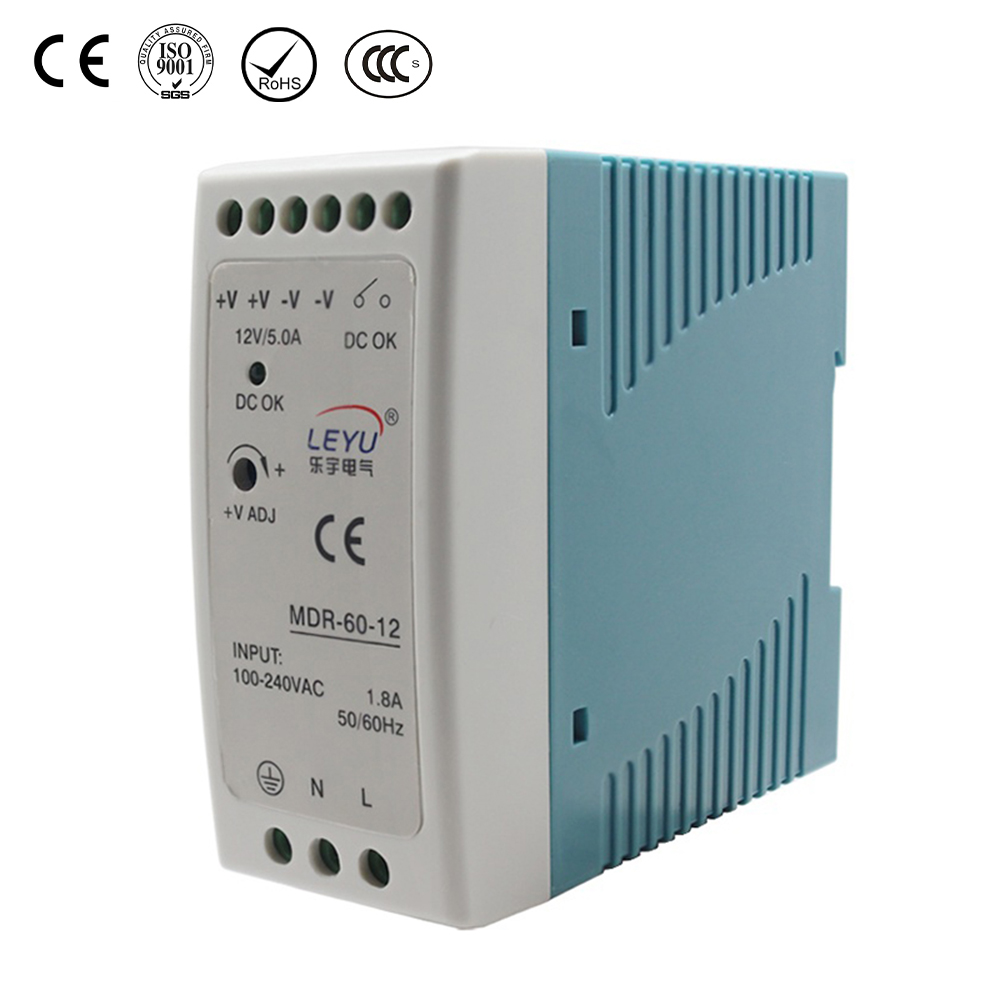

MDR-60 Power Supply - Stable 60W Output for Industrial Use

Features:
Universal AC input/ full range
Protections:

Short circuit/ Over load/ Over voltage
Cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15
isolation classⅡ
LED indicator for power on
100% full load burn-in test
2 years warranty

Model:
MDR Series Din Rail Power Supply->MDR-60
Brand:
LEYU

Availability:

Quantity:



Inquire Add to Basket

Stable 60W Output Power Supply for Industrial Use 60W Output Power Supply for Industrial Use 60W Output Power Supply Industrial Use 60W Output Power Supply Industrial 60W Output Power Supply Industrial Use 60W Power Supply

Product Specifications

Usage scenarios

After-sales service

FAQ

60W Single Output DIN Rail Power Supply MDR-60 series

SPECIFICATIONS

OUTPUT
Model	MDR-60-5	MDR-60-12	MDR-60-24	MDR-60-48
DC Voltage	5V	12V	24V	48V
Rated Current	10A	5A	2.5A	1.25A
Current Range	0-10A	0-5A	0-2.5A	0-1.25A
Rated Power	50W	60W	60W	60W
Ripple & Noise	80mVp-p	120mVp-p	150mVp-p	200mVp-p
Voltage Tolerance	±2%	±1%	±1%	±1%
Line regulation	±1.0%	±1.0%	±1.0%	±1.0%
Load regulation	±1.0%	±1.0%	±1.0%	±1.0%
Setup, Rise Time	500ms,30ms/230VAC 200ms,30ms/115VAC at full load
Hold Up Time	50ms/230VAC 20ms/115VAC at full load
INPUT
Voltage Range	85~264VAC 47~63Hz; 120~370VDC
AC Current	1.8A/115VAC 1A/ 230VAC
Efficiency	78%	86%	88%	87%
Inrush Current	Cold start 30A/115VAC 60A/230VAC
Leakage Current	<1mA/240VAC
PROTECTION
Over Load	105%~150% rated output power
	Protection type: Constant current limiting, recovers automatically after fault condition is removed
Over Voltage	6.25-7.25V	15.6-18V	31.2-36V	57.6-64.8V
	Protection type: Shut down o/p voltage, re-power on to recover
ENVIRONMENT
Working Temp., Humidity	-20℃~+70℃; 20%~90% RH non-condensing
Storage Temp., Humidity	-40℃~+85℃; 10%~95%RH
Temp. Coefficient	±0.03%/℃(0~50℃)
Vibration	10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes
SAFETY
Withstand Voltage	I/P-O/P: 3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Isolation Resistance	I/P-O/P, I/P-FG, O/P-F/G: >100M Ohms / 500VDC/25℃/70% RH
STANDARD
Safety Standard	Design refer to UL508, UL60950-1,TUV EN60950-1,EN50178
EMC Standard	Design refer to EN55011,EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,EN55024,EN61000-6-2，EN61204-3, heavy industry level, criteria A
OTHERS
Dimension	4090100mm(WHD)
Weight	0.33Kg
Packing	42pcs/carton/14.8kg/0.82CUFT
NOTE
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation. 4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.

MDR-60-SPEC-2 Downloads：MDR-60.doc

Industrial automation system
Light industrial machinery
Home smart devices
Small monitoring and security systems
Power supply for experimental equipment or sensors
Industrial instruments and test equipment

Consulting Services Purpose:

To provide customers with expert technical guidance, helping them fully understand and maximize the capabilities of Endpoint Detection and Response (EDR) products. The goal is to ensure that customers can effectively leverage EDR solutions to enhance their cybersecurity posture, detect threats in real-time, and respond swiftly to incidents.

Key Responsibilities:

Tailored Technical Consultations: Offer personalized consultations to address specific customer requirements and challenges, ensuring that the advice provided is relevant and actionable.
Customer Support: Respond promptly to customer inquiries about the usage, functionality, and best practices for EDR products, providing clear and comprehensive answers.
Feature Education: Enhance customer understanding of advanced product features, such as threat detection algorithms, incident response workflows, and integration capabilities, enabling them to utilize the software more effectively and efficiently.
Implementation Guidance: Assist customers in planning and executing the deployment of EDR solutions, including system configuration, policy setup, and integration with existing infrastructure.
Continuous Improvement: Regularly update customers on new features, updates, and best practices to help them stay ahead of evolving threats and optimize their use of the EDR platform.

Remote Assistance Purpose:

Provide practical support to resolve technical issues and ensure smooth product operation. Key Responsibilities: Guide customers through software installation and setup using remote control tools or online support. Assist with configuration adjustments to optimize system performance. Troubleshoot and resolve common technical problems quickly to minimize downtime.

Abnormal Output Voltage When the voltage regulation control circuit inside the power supply malfunctions, issues such as damaged or degraded components—including sampling resistors, error amplifiers, optocouplers, or power control chips—can occur. These faults may cause the output voltage to become excessively high or low.

Excessive Ripple The aging, failure, or reduced capacity of filter capacitors can increase the ripple component in the DC voltage output by the power supply. This may disrupt the normal operation of connected load equipment.

Installation Issues If the guide rail power supply's installation dimensions do not align with the equipment’s guide rail, or if it is improperly secured during installation, the power supply may not be firmly fixed. This can compromise both the safety and stability of the system.
