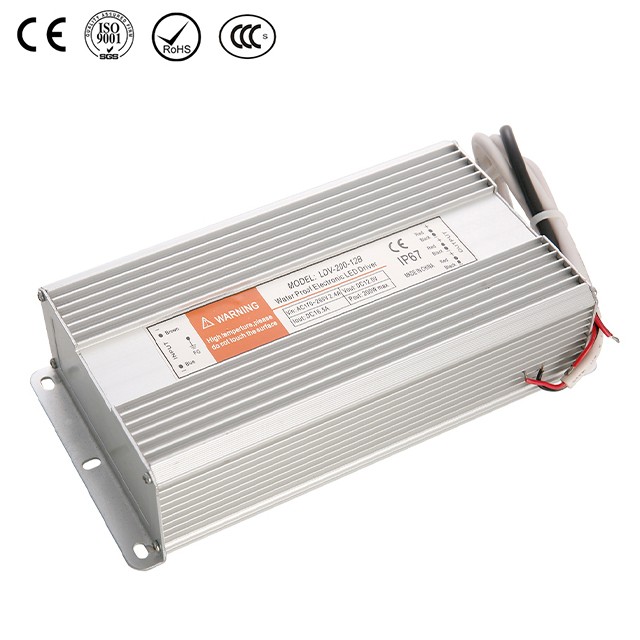

LDV-200 Waterproof Power Supply - 200W AC/DC Converter for Harsh Industrial Environments

Features:
High efficiency, High reliability, Low cost
Protections: Short circuit/Over load/Over voltage/High temperature
Waterproof grade: IP67
Working Frequency: 65 KHz
Suitable for LED lighten and moving sign applications.
2 years warranty

Model:
LDV Series Waterproof Power Supply->LDV-200
Brand:
LEYU

Availability:

Quantity:



Inquire Add to Basket

12V/24V Waterproof PSU Marine/Outdoor Outdoor Waterproof Power Solutions Waterproof AC/DC Power Supply Waterproof Generator Power Supply

Product Specifications

SPECIFICATION
OUTPUT
Model	LDV-200-12		LDV-200-24	LDV-200-36
DC Voltage	12V		24V	36V
Rated Current	16.5A		8.3A	5.5A
Current Range	0-16.5A		0-8.3A	0-5.5A
Rated Power	198W		199W	198W
Ripple & Noise	150mVp-p		200mVp-p	200mVp-p
Voltage Tolerance	±1%		±1%	±1%
Inlet Stability	±0.5%		±0.5%	±0.5%
Load Stability	±0.5%		±0.5%	±0.5%
Setup, Rise, Hold Up Time	200ms,20ms,30ms/230VAC

INPUT
Voltage Range	180～264 VAC 47～63Hz；255～373VDC
AC Current	1.5A/230VAC
Efficiency	82%		84%	85%
Inrush Current	Cold-start current 40A/230VAC

PROTECTION
Over Load	105%~135%
	Protection：Hiccup mode, recovers automatically after fault condition is removed
Over Voltage	15~17V	30~32V			42~44V
	Protection：Hiccup mode, recovers automatically after fault condition is removed
High Tem.	≥85℃
	Protection：cut off the output, recovers automatically after fault condition is removed

ENVIRONMENT
Working Temp., Humidity	-10℃~+60℃,20%~90%RH
Storage Temp., Humidity	-20℃~+85℃, 10%~95%RH
Temp. Coefficient	±0.03%/℃(0-50℃)
Vibration	10-500Hz,2G 10min,/1cycle,Period for 60min,Each axes

SAFETY
Withstand Voltage	I/P-O/P: 3KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC
Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC

STANDARD
Safety Standard	EN61347-1 EN61347-2-13 IP67
EMC Standard	EN55015 EN61547 EN61000-3.4 CLASSB

OTHERS
Dimension	2156943（LWH）
Weight	1.3Kg

NOTE	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance: includes set up tolerance, line regulation and load regulation.
