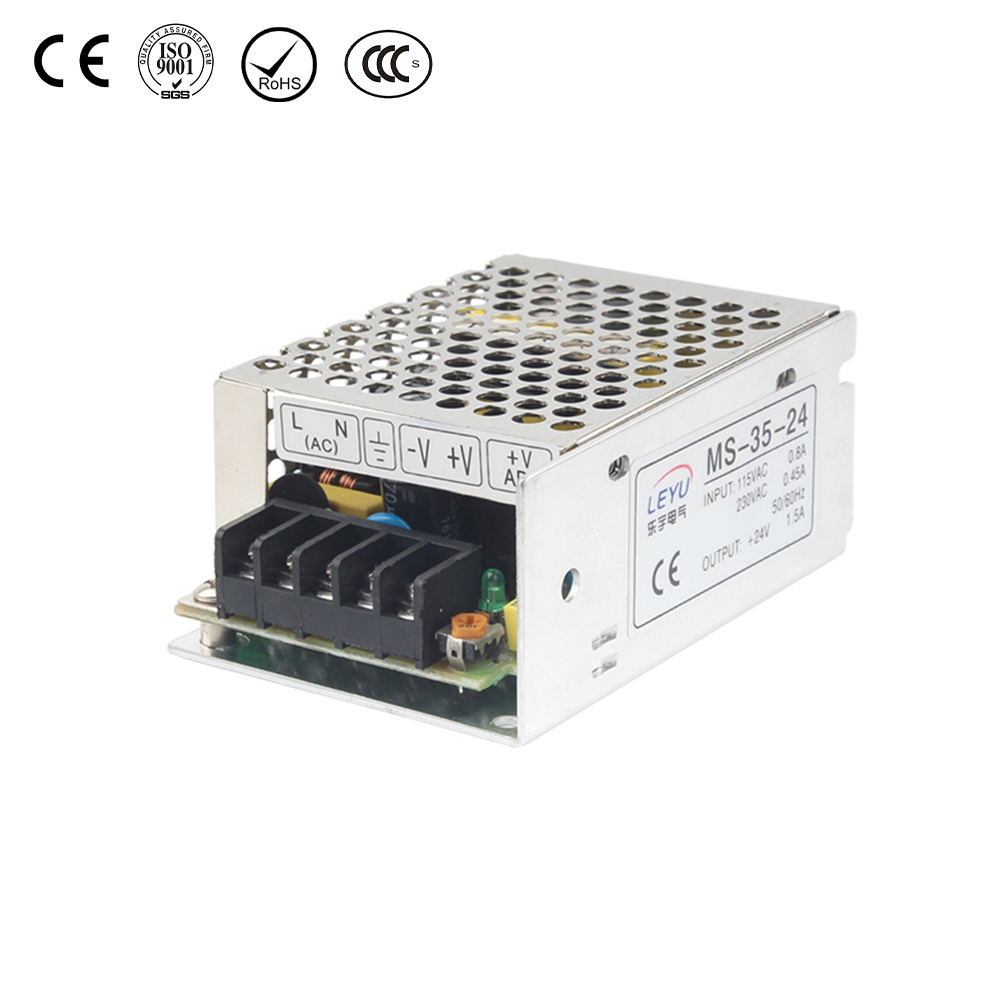

The CE MS-35 35W Single Output Power Supply is a reliable and versatile power solution. It accepts a wide input voltage range of 85-264VAC or 120-370VDC, with a frequency range of 47-63Hz, making it adaptable for different environments.
This power supply offers multiple output voltage options, including 5V, 12V, 15V, and 24V. The output current varies from 0 to 6A, depending on the selected voltage. With a power rating of 35W, it operates with an efficiency of up to 84%.
The unit features built-in protection functions, including short circuit, overload, and overvoltage protection. It works in a wide temperature range of -10°C to +50°C and can handle humidity levels between 20% and 90% RH.
The compact design measures 84mm x 58mm x 38mm and weighs only 0.22kg, making it easy to install and handle. The power supply is CE and ROHS certified and comes with a 2-year warranty.
SPECIFICATIONS | |||
OUTPUT | |||
Model | MS-35-5 | MS-35-12 | MS-35-24 |
DC Voltage | 5V | 12V | 24V |
Rated Current | 7A | 3A | 1.4A |
Current Range | 0-3A | 0-3A | 0-1.4A |
Rated Power | 35W | 36W | 33.6W |
Ripple & Noise | 50mVp-p | 50mVp-p | 100mVp-p |
Voltage Adj. Range | +10,-5% | ±10% | ±10% |
Voltage Tolerance | ±2% | ±1% | ±1% |
Inlet Stability | ±0.5% | ±0.5% | ±0.5% |
Load Stability | ±1% | ±0.5% | ±0.5% |
Setup, Rise, Hold Up Time | 200s,100ms,30ms at full load | ||
INPUT | |||
Voltage Range | 100~240VAC 47-63Hz; 240~370VDC | ||
AC Current | 0.5A/115V 0.25A/230V | ||
Efficiency | 65% | 68% | 72% |
Inrush Current | Cold-start current 15A/115V 30A/230V | ||
Leakage Current | <0.5mA/240VAC | ||
PROTECTION | |||
Over Load | 105%~150% | ||
Protection type: Fold back current limiting Reset: auto recovery | |||
ENVIRONMENT | |||
Working Temp., Humidity | -10℃~+60℃(Refer to output derating curve), 20%~90%RH | ||
Storage Temp., Humidity | -20℃~+85℃,10%~95%RH | ||
Temp. Coefficient | ±0.02%/℃(0~50%) | ||
Vibration | 10~500Hz,2G 10min,/1cycle,Period for 60min,each axes | ||
SAFETY | |||
Withstand Voltage | I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC | ||
Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC | ||
STANDARD | |||
Safety Standard | Meet UL1012 requirement(Not apply for the mark) | ||
EMC Standard | Meet FCC PART15 J Conduction class B | ||
OTHERS | |||
Dimension | 85*58*38mm(L*W*H) | ||
Weight | 0.4Kg | ||
NOTE | |||
1.The testing condition for the parameter above is: 230VAC input, rated load, 25℃ 70% RH.Humidity. 2.Error.include the setting error,line stability and load stability. 3.Wave test:adopting “A12”double wire for 20MHz,and 0.1UF&47UF capacitor short-circuit for interrupting. 4.Inlet voltage stability test:when is over load,the lowest voltage of inlet is up to the highest voltage. 5.Load stability test:the load is from 0% to 100%. | |||
Protection Features: Short-circuit protection and overload protection.
Voltage Regulation Range: ±10% voltage adjustment.
Insulation Resistance: I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC.
Safety Standards: Meets UL1012 requirements (certification mark not applied).
Electromagnetic Compatibility: Complies with FCC PART15 J Class B conducted standards.
Lightweight: Easy to transport and install.
Compact Size: Single-output power supply with a small form factor.
24V Power Supply: Suitable for CCTV equipment.
12V Power Supply: Works with various electronic devices.
CCTV Surveillance Equipment: Powers security systems reliably.
Industrial Equipment: Provides stable power for machinery.
Other Devices: Compatible with devices requiring 12V or 24V power.
1.What are the key features of the CE MS-35 35W MS-35 Single Output Power Supply?
The CE MS-35 power supply features short-circuit protection, overload protection, a ±10% voltage regulation range, insulation resistance of 100M Ohms/500VDC, and compliance with UL1012 and FCC PART15 J Class B standards.
2.What is the weight and size of the CE MS-35 35W power supply?
The CE MS-35 power supply is lightweight and compact, making it easy to transport and install in various settings.
3.What types of devices can the CE MS-35 power supply be used for?
The CE MS-35 is ideal for powering CCTV surveillance systems, industrial equipment, and any devices that require 12V or 24V power.
4.Does the CE MS-35 power supply meet safety standards?
Yes, the CE MS-35 meets UL1012 safety requirements, although it does not carry the certification mark.
5.How does the CE MS-35 ensure electromagnetic compatibility?
The CE MS-35 complies with the FCC PART15 J Class B conducted standards, ensuring minimal electromagnetic interference.
