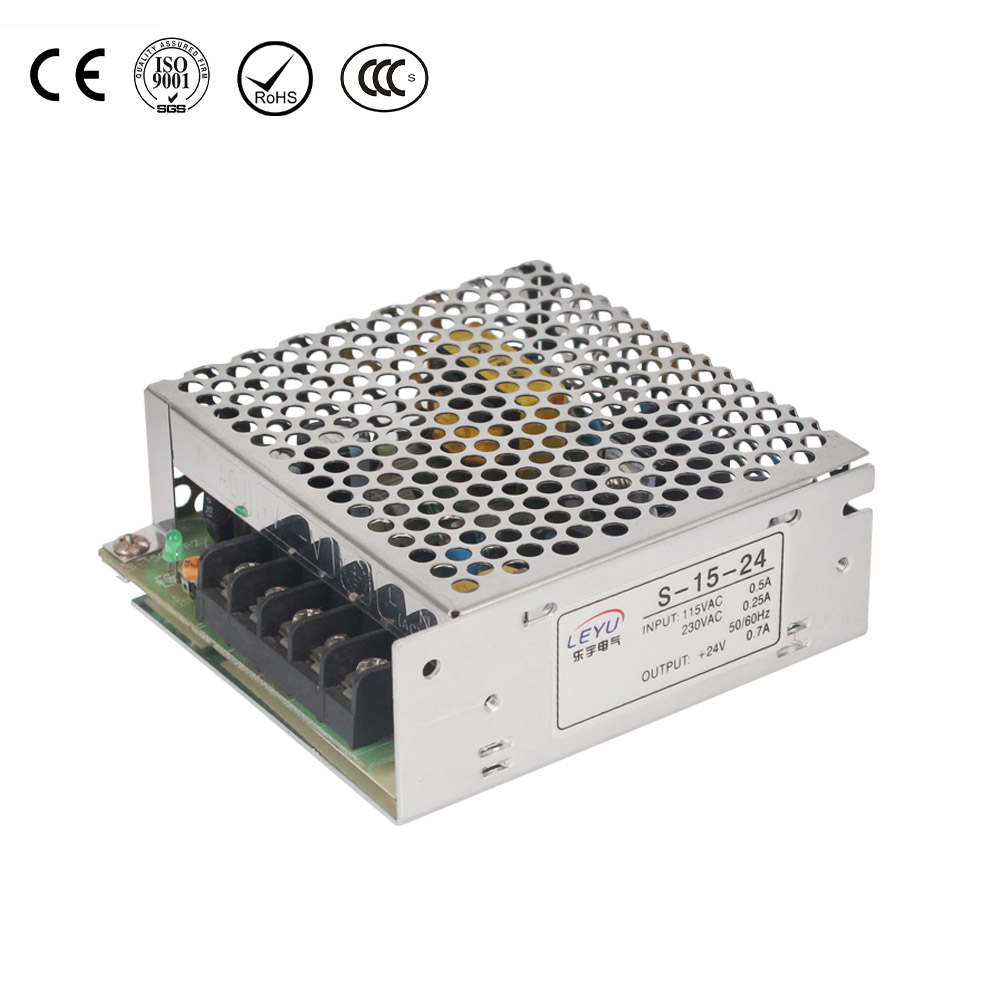

The Mini Size 12v S-15 Single Output Power Supply offers reliable performance in a compact design. This power supply is ideal for various applications requiring stable 12V output.
It operates on a wide voltage range. You can choose between 85-132VAC and 170-264VAC input, or use 240-370VDC.
With an output voltage of 12V and a current of 1.3A, it provides up to 15.6W of power. This power supply delivers a high efficiency of 68%.
The unit measures 99mm × 97mm × 35mm and weighs just 0.3kg.
It works in environments with temperatures from -10°C to +60°C. For storage, it can handle temperatures from -20°C to +85°C.
This product is certified with CE and comes with a 2-year warranty. It is designed for use in environments with 20% to 90% humidity (working) and 10% to 95% humidity (storage).
SPECIFICATIONS | |||
OUTPUT | |||
Model | S-15-5 | S-15-12 | S-15-24 |
DC Voltage | 5V | 12V | 24V |
Rated Current | 3A | 1.3A | 0.7A |
Current Range | 0-3A | 0-1.3A | 0-0.7A |
Rated Power | 15W | 15.6W | 16.8W |
Ripple & Noise | 50mVp-p | 50mVp-p | 100mVp-p |
Voltage Adj. Range | -5%,+10% | ±10% | ±10% |
Voltage Tolerance | ±2% | ±1% | ±1% |
Setup, Rise, Hold Up Time | 200ms,100ms,30ms at full load | ||
INPUT | |||
Voltage Range | 85~132VAC/170~264VAC selected by switch 47~63Hz; 240~370VDC | ||
AC Current | 0.5A/115V 0.25A/230V | ||
Efficiency | 65% | 68% | 72% |
Inrush Current | Cold start 15A/115VAC 30A/230VAC | ||
Leakage Current | <0.5mA/240VAC | ||
PROTECTION | |||
Over Load | 110%~160% | ||
Protection type: Fold back current limiting, recovers automatically after fault condition is removed | |||
ENVIRONMENT | |||
Working Temp., Humidity | -10℃~+60℃; 20%~90 %RH | ||
Storage Temp., Humidity | -20℃~+85℃; 10%~95 %RH | ||
Vibration | 10~500Hz, 2G 10min./1cycl, period for 60 min, each along X, Y, Z, axes | ||
SAFETY | |||
Withstand Voltage | I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC | ||
Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC | ||
STANDARD | |||
Safety Standard | Design refer to UL1012 | ||
EMC Standard | Design refer to FCC Part15 J Conduction Class B | ||
OTHERS | |||
Dimension | 99*97*36mm(L*W*H) | ||
Weight | 0.31Kg | ||
Packing | 45pcs/15Kg/0.9CUFT | ||
NOTE | |||
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation | |||
Wide Operating Temperature: Works within a temperature range of -10°C to +50°C, suitable for diverse environments.
High Humidity Tolerance: Operates effectively in humidity levels from 20% to 90% RH (non-condensing).
Low Ripple and Noise: Provides stable output with ripple and noise levels between 50mVp-p and 100mVp-p.
Certifications: CE and RoHS certified, ensuring compliance with international standards.
High Reliability: Uses 105°C capacitors for stable, long-term operation.
Global Compatibility: Supports a wide range of AC input voltages, making it suitable for various regions.
High Efficiency: Achieves up to 68% efficiency, ideal for energy-saving applications.
Protection Features: Includes short circuit and overload protection (auto-recovery at 105%~150% load).
Compact Design: Small size and lightweight, making installation easy.
Low Ripple: Output ripple voltage is 50mVp-p, suitable for devices with high power quality demands.
EMI Filter: Built-in EMI filter reduces electromagnetic interference.
Small Electronic Devices: Perfect for powering small electronics that require 12V DC input.
LED Lighting: Ideal for LED lights that operate on a 12V DC power supply.
Industrial Control Systems: Provides stable power for industrial equipment and control systems.
1.What is the input voltage range for the Mini Size 12v S-15 Single Output Power Supply?
The input voltage range is 85-132VAC, 170-264VAC (switchable), or 240-370VDC.
2.What is the output voltage of the Mini Size 12v S-15 Single Output Power Supply?
The output voltage is 12V, providing a stable power supply for various devices.
3.How much power does the Mini Size 12v S-15 Single Output Power Supply provide?
It provides a maximum output power of 15.6W.
4.What certifications does the Mini Size 12v S-15 Single Output Power Supply have?
This product is CE and RoHS certified, ensuring compliance with international standards.
5.What is the efficiency of the Mini Size 12v S-15 Single Output Power Supply?
The efficiency is 68%, making it suitable for energy-efficient applications.
