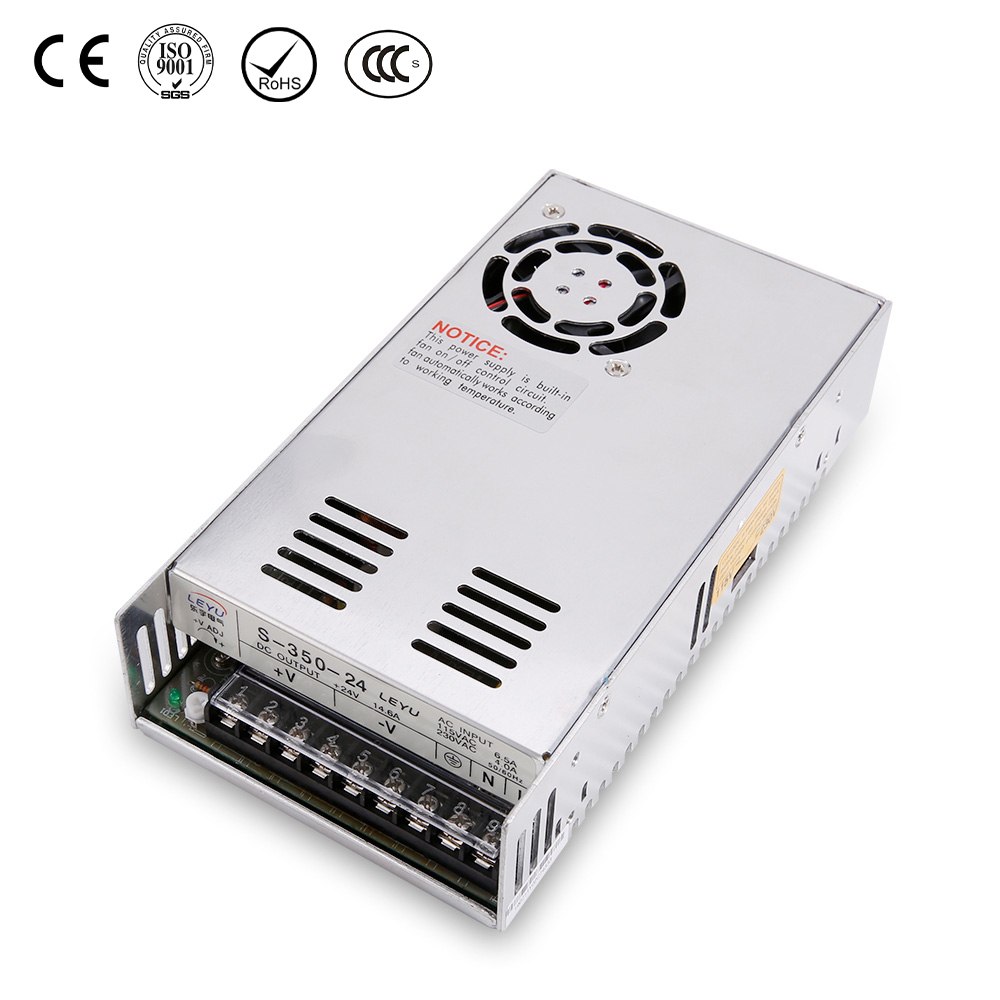

The S Series S-350 Single Output Power Supply is designed for efficient power delivery in various industrial applications. It offers stable DC output with multiple voltage options. The power supply features overload, overvoltage, and overtemperature protection to ensure safe operation. Its compact design and high efficiency make it ideal for powering industrial equipment, lighting systems, and electronic devices.
It also supports a wide input voltage range, ensuring reliable performance in different regions. Custom solutions are available for businesses needing specific configurations.
SPECIFICATIONS | |||||||||||
OUTPUT | |||||||||||
Model | S-350-5 | S-350-7.5 | S-350-12 | S-350-13.5 | S-350-15 | S-350-24 | S-350-27 | S-350-48 | |||
DC Voltage | 5V | 7.5V | 12V | 13.5V | 15V | 24V | 27V | 48V | |||
Rated Current | 50A | 40A | 30A | 25.8A | 23.2A | 14.6A | 13A | 7.3A | |||
Current Range | 0-50A | 0-40A | 0-30A | 0-25.8A | 0-23.2A | 0-14.6A | 0-13A | 0-7.3A | |||
Rated Power | 250W | 300W | 360W | 348.3W | 348W | 350.4W | 351W | 350.4W | |||
Ripple & Noise | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 200mVp-p | 240mVp-p | |||
Voltage Adj. Range | -10%,+12% | ±20% | -16%,+10% | -12%,+11% | -10%,+20% | -16%,10% | -4%,+18% | -15%,+17% | |||
Voltage Tolerance | ±2% | ±2% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | |||
Setup, Rise, Hold Up Time | 200ms,50ms,20ms at full load | ||||||||||
INPUT | |||||||||||
Voltage Range | 90~132VAC/180~264VAC selected by switch 47~63Hz; 254~370VDC | ||||||||||
AC Current | 6.5A/115V 4A/230V | ||||||||||
Efficiency | 73% | 76% | 74% | 79% | 78% | 81% | 82% | 83% | |||
Inrush Current | Cold start 50A/115V 50A/230V | ||||||||||
Leakage Current | <3.5mA/240VAC | ||||||||||
PROTECTION | |||||||||||
Over Load | 105%~135% | ||||||||||
Protection type: Fold back current limiting, recovers automatically after fault condition is removed. | |||||||||||
Over Voltage | 115%~135% | ||||||||||
Protection type: hiccup mode, recovers automatically after fault condition is removed. | |||||||||||
Over Temp. | RT3≥55℃ Fan On, ≤45℃ Fan Off, ≥80℃ Output Shutdown (5~7.5V) | ||||||||||
RT3≥65℃ Fan On, ≤55℃ Fan Off, ≥80℃ Output Shutdown (12~15V) | |||||||||||
RT3≥70℃ Fan On, ≤60℃ Fan Off, ≥85℃ Output Shutdown (24~48V) | |||||||||||
ENVIRONMENT | |||||||||||
Working Temp., Humidity | -10℃~+50℃; 20%~90%RH | ||||||||||
Storage Temp., Humidity | -20℃~+85℃; 10%~95%RH | ||||||||||
Vibration | 10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes | ||||||||||
SAFETY | |||||||||||
Withstand Voltage | I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC | ||||||||||
Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC | ||||||||||
STANDARD | |||||||||||
Safety Standard | Design refer to UL1950 | ||||||||||
EMC Standard | Design refer to EN55022, EN55024, EN61000 | ||||||||||
OTHERS | |||||||||||
Dimension | 215*115*50mm(L*W*H) | ||||||||||
Weight | 1Kg | ||||||||||
Packing | 20pcs/20Kg | ||||||||||
NOTE | |||||||||||
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation | |||||||||||
High Efficiency: With a conversion efficiency of over 90%, this power supply minimizes energy loss and maximizes operational output.
Compact Design: Its space-saving design is ideal for integration into compact setups, ensuring flexibility for various applications.
Durability: Built with robust components, it ensures long-lasting performance, making it suitable for harsh environments.
Overload Protection: The built-in protection mechanism prevents damage to your equipment, ensuring safety during operation.
Wide Input Range: Capable of handling a broad voltage range, it offers versatility across different regions.
Reliability: This power supply is built to provide a stable, consistent output, ensuring that connected devices receive the power they need for optimal operation.
Cost-Effective: With a focus on energy efficiency and longevity, this power supply minimizes operational costs.
Versatility: Suitable for a wide range of applications, it is an ideal choice for manufacturers, suppliers, and wholesalers looking for a reliable power source for various devices.
Custom Solutions: Whether you're a business needing specific configurations or power requirements, we offer custom solutions tailored to your needs.
Industrial Equipment: Ideal for powering factory machinery and production lines.
LED Lighting: Ensures stable power for energy-efficient LED lighting systems.
Security Systems: Perfect for powering surveillance cameras and alarm systems in security applications.
Consumer Electronics: Reliable for various consumer devices requiring stable and regulated power sources.
1.What is the output voltage of this power supply?
The output voltage of this single output power supply is customizable based on your requirements.
2.Can this power supply be used outdoors?
It is recommended for indoor use, but with the right enclosure, it can be adapted for outdoor applications.
3.Is this power supply suitable for heavy machinery?
Yes, the single output power supply is designed for industrial use and can handle heavy-duty machinery with ease.
4.Can I customize the output specifications?
Yes, we offer custom options to meet your specific voltage and current needs.
