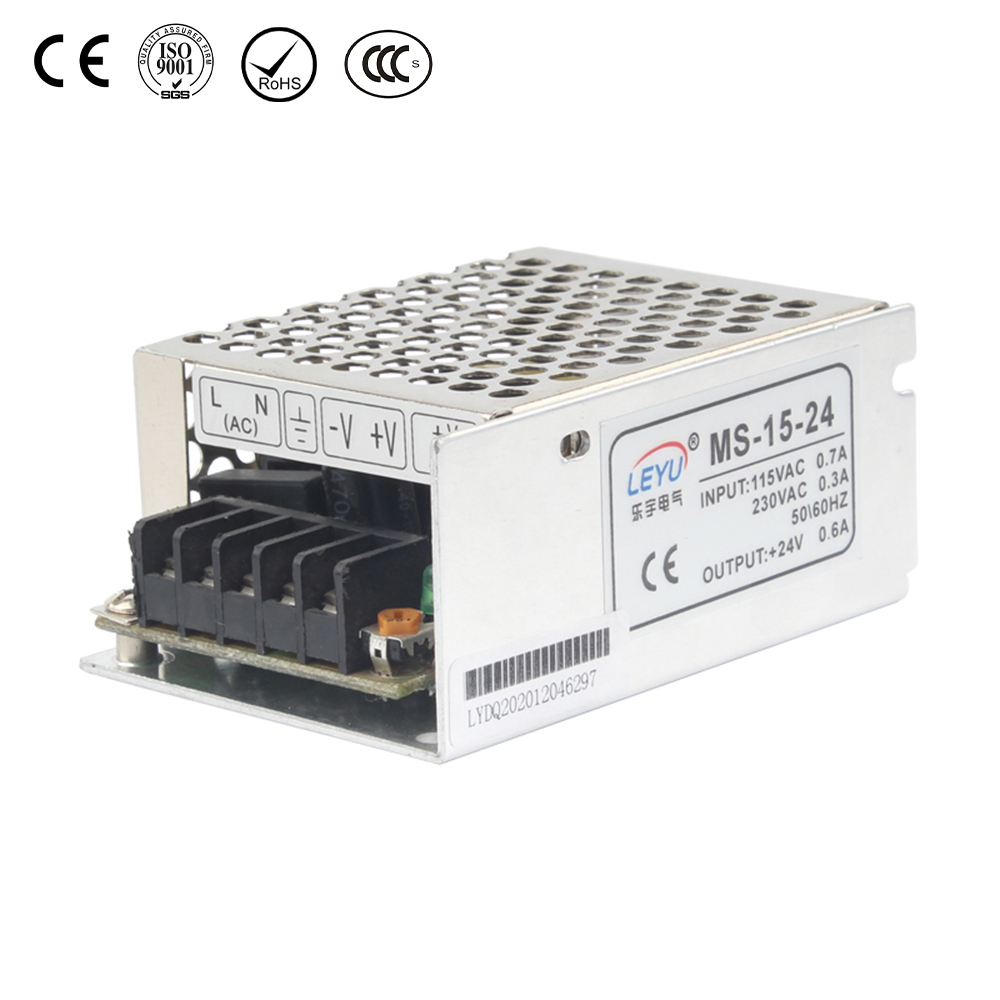

The Single Output Power Supply is a highly efficient and reliable solution designed to meet the power requirements of a wide range of applications. With a compact design and high performance, it ensures stable voltage output for sensitive electronics and devices. Whether for industrial machinery, CCTV systems, or general-purpose applications, this power supply is engineered to deliver consistent, high-quality power with built-in safety features.
This power supply is manufactured to meet the highest standards of performance and reliability, offering an excellent choice for businesses seeking bulk solutions. As a leading supplier and wholesaler, we offer customization options to fit specific needs, making it a versatile product for diverse sectors.
SPECIFICATIONS | |||
OUTPUT | |||
Model | MS-15-5 | MS-15-12 | MS-15-24 |
DC Voltage | 5V | 12V | 24V |
Rated Current | 3A | 1.3A | 0.7A |
Current Range | 0-3A | 0-1.3A | 0-0.7A |
Rated Power | 15W | 15.6W | 16.8W |
Ripple & Noise | 80mVp-p | 120mVp-p | 150mVp-p |
Voltage Adj. Range | -9%~+10% | ±10% | ±10% |
Voltage Tolerance | ±2% | ±1% | ±1% |
Inlet Stability | ±0.5% | ±0.5% | ±0.5% |
Load Stability | ±1% | ±0.5% | ±0.5% |
Setup, Rise, Hold Up Time | 200s,100ms,30ms at full load | ||
INPUT | |||
Voltage Range | 100~240VAC 47-63Hz; 240~370VDC | ||
AC Current | 0.5A/115V 0.25A/230V | ||
Efficiency | 76% | 78% | 80% |
Inrush Current | Cold-start current 15A/115V 30A/230V | ||
Leakage Current | <0.5mA/240VAC | ||
PROTECTION | |||
Over Load | 105%~150% rated output power | ||
Protection type: Fold back current limiting Reset: auto recovery | |||
Over Voltage | ………… | ||
Over Temp. | ………… | ||
ENVIRONMENT | |||
Working Temp., Humidity | -10℃~+60℃(Refer to output derating curve), 20%~90%RH | ||
Storage Temp., Humidity | -20℃~+85℃,10%~95% RH non-condensing | ||
Temp. Coefficient | ±0.02%/℃(0~50%) | ||
Vibration | 10~500Hz,2G 10min,/1cycle,Period for 60min,each axes | ||
SAFETY | |||
Withstand Voltage | I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC | ||
Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC | ||
STANDARD | |||
Safety Standard | Meet UL1012 requirement | ||
EMC Standard | Meet EN55022, class A | ||
OTHERS | |||
Dimension | 84*58*38mm(L*W*H) | ||
Weight | 0.2Kg | ||
NOTE | |||
1.The testing condition for the parameter above is: 230VAC input, rated load, 25℃ 70% RH.Humidity. 2.Error.include the setting error,line stability and load stability. 3.Wave test:adopting “A12”double wire for 20MHz,and 0.1UF & 47UF capacitor short-circuit for interrupting. 4.Inlet voltage stability test:when is over load,the lowest voltage of inlet is up to the highest voltage. 5.Load stability test:the load is from 0% to 100%. | |||
Stable Power Output: Delivers a single output voltage for smooth operation of various devices.
Short Circuit Protection: Automatically shuts down in the event of a short circuit to prevent damage.
Overload Protection: Safeguards connected equipment by stopping output when the load exceeds the rated capacity.
Compact and Lightweight: Small form factor for easy installation in tight spaces, saving valuable real estate.
Wide Voltage Regulation: ±10% regulation to adapt to voltage fluctuations and maintain a stable output.
High Insulation Resistance: Ensures optimal safety with resistance of 100M Ohms at 500VDC.
Electromagnetic Compatibility: Complies with industry standards to minimize electromagnetic interference (EMI).
Safety Compliance: Meets recognized international safety standards, ensuring reliability and durability for long-term use.
Versatile Power Solution: The single output power supply is ideal for powering a range of electronic devices, including industrial equipment, security systems, and consumer electronics.
Energy Efficiency: Designed for high efficiency, reducing energy consumption and heat generation, which extends the lifespan of both the power supply and connected devices.
Ease of Integration: The compact size and flexible output voltage make it easy to integrate into various systems, whether for new installations or as a replacement unit.
Durability and Reliability: With features like overload protection and short-circuit protection, this power supply ensures safe and reliable operation in demanding environments.
Customizable for Specific Needs: Available for custom orders to meet specific voltage, size, or application requirements, making it an ideal choice for businesses seeking tailored solutions.
Industrial Equipment: Provides stable and reliable power for industrial machines and systems, ensuring smooth operation in heavy-duty environments.
CCTV Systems: Powers security systems and surveillance cameras, ensuring continuous monitoring and safety.
Consumer Electronics: Can be used in a variety of home appliances and consumer electronics to ensure steady power supply for optimal performance.
Medical Equipment: Powers diagnostic tools and other medical devices, where precision and reliability are crucial.
Automation Systems: A reliable solution for automated systems that require consistent power for control panels, sensors, and other components.
1.What are the main features of this Single Output Power Supply?
This power supply features stable voltage output, short circuit protection, overload protection, and high insulation resistance. It also meets electromagnetic compatibility standards for minimal interference.
2.Can this power supply be used for CCTV systems?
Yes, this power supply is an excellent choice for CCTV systems. It provides the stable 12V or 24V power required for continuous surveillance operations.
3. Is it suitable for industrial applications?
Absolutely. This single output power supply is designed for industrial applications and can reliably power machinery and control systems.
4. Can I customize the output voltage for specific needs?
Yes, we offer custom solutions. The power supply can be tailored to meet specific voltage requirements, making it ideal for various applications.
5. Is it energy efficient?
Yes, this power supply is designed to be energy efficient, reducing overall energy consumption and lowering operational costs.
