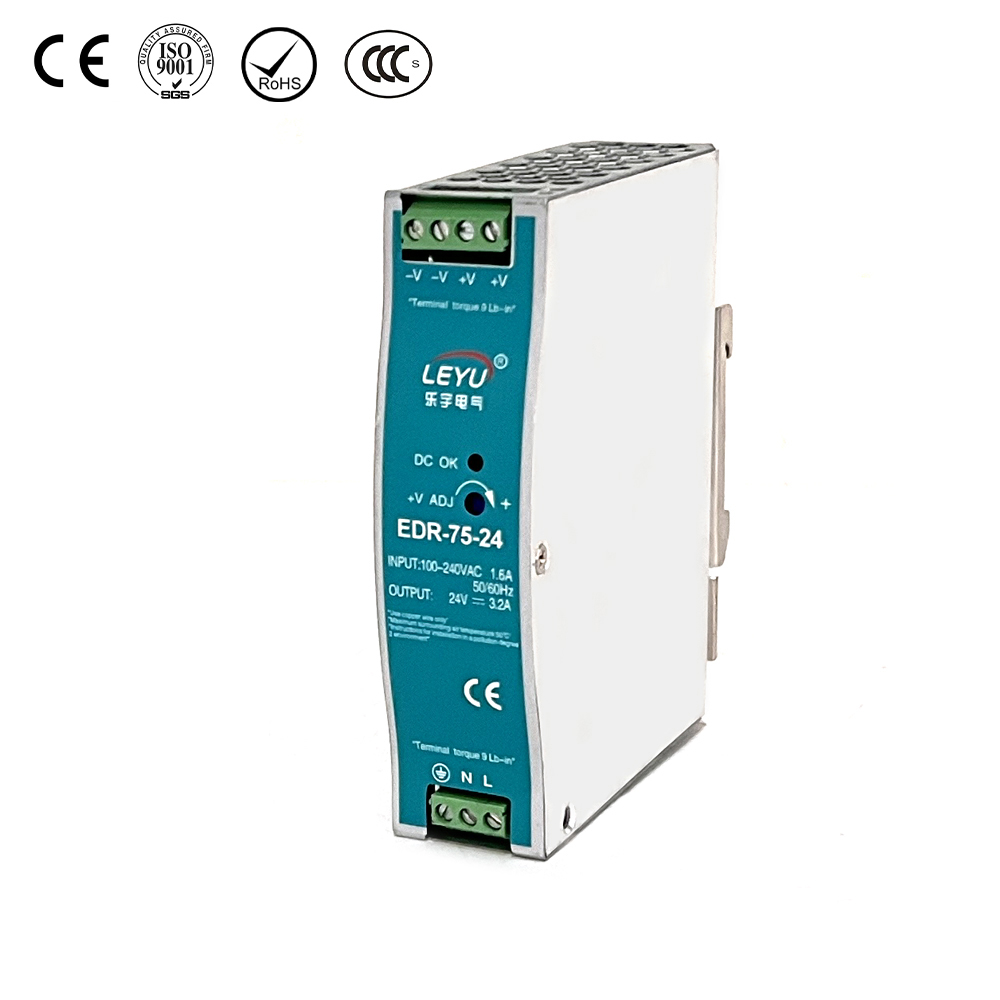

75W Single Output Industrial DIN Rail Power Supply EDR-75 series
SPECIFICATIONS | |||
OUTPUT | |||
Model | EDR-75-12 | EDR-75-24 | EDR-75-48 |
DC Voltage | 12V | 24V | 48V |
Rated Current | 6.3A | 3.2A | 1.6A |
Current Range | 0-6.3A | 0-3.2A | 0-1.6A |
Rated Power | 75.6W | 76.8W | 76.8W |
Ripple & Noise | 100mVp-p | 120mVp-p | 150mVp-p |
Voltage Adj. Range | 12-14V | 24-28V | 48-53V |
Voltage Tolerance | ±2% | ±1% | ±1% |
Setup, Rise Time | 1000ms,60ms/230VAC 1800ms,60ms/115VAC at full load | ||
Hold Up Time | 60ms/230VAC 12ms/115VAC at full load | ||
INPUT | |||
Voltage Range | 85~264VAC 47~63 Hz; 120~370VDC | ||
AC Current | 1.6A/115V 0.96A/230V | ||
Efficiency | 83% | 85% | 86% |
Inrush Current | Cold start 20A/115VAC 40A/230VAC | ||
Leakage Current | <1mA/240VAC | ||
PROTECTION | |||
Over Load | 105%~150% | ||
Protection type: Constant current limiting, recovers automatically after fault condition is removed | |||
Over Voltage | 120%~140% | ||
Protection type: Shut down o/p voltage, re-power on to recover | |||
Over Temp. | TSW1≥85℃±5℃ | ||
Protection type: Shut down o/p voltage, recovers automatically after temperature goes down | |||
ENVIRONMENT | |||
Working Temp., Humidity | -10℃~+60℃; 20%~90%RH | ||
Storage Temp., Humidity | -20℃~+85℃; 10%~95%RH | ||
Vibration | 10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes | ||
SAFETY | |||
Withstand Voltage | I/P-O/P: 3KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC | ||
Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC | ||
STANDARD | |||
EMC Standard | EN55011,EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,ENV50204,EN55024,EN61000-6-2 | ||
OTHERS | |||
Dimension | 32.5*102*125.2mm(L*W*H) | ||
Weight | 0.45Kg | ||
Packing | 30pcs/16Kg/1.1CUFT | ||
NOTE | |||
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation. 4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. | |||
Downloads：
EDR-75.doc
Automation equipment, scientific research equipment, automation equipment, building lighting, monitoring and security, lamps and lanterns
The EDR-75 75W Din Rail Power Supply is a versatile and reliable solution designed for a wide range of applications. It provides stable and efficient power to automation equipment, ensuring seamless operation in industrial settings. For scientific research, the power supply supports precision instruments, delivering consistent performance required for accurate results. In building lighting, the EDR-75 powers LED fixtures and emergency lighting systems, enhancing energy efficiency and reliability. It also supports monitoring and security systems, providing stable power to cameras and access control devices. Additionally, the EDR-75 is ideal for powering decorative lamps and lanterns, ensuring long-lasting and dependable illumination.
