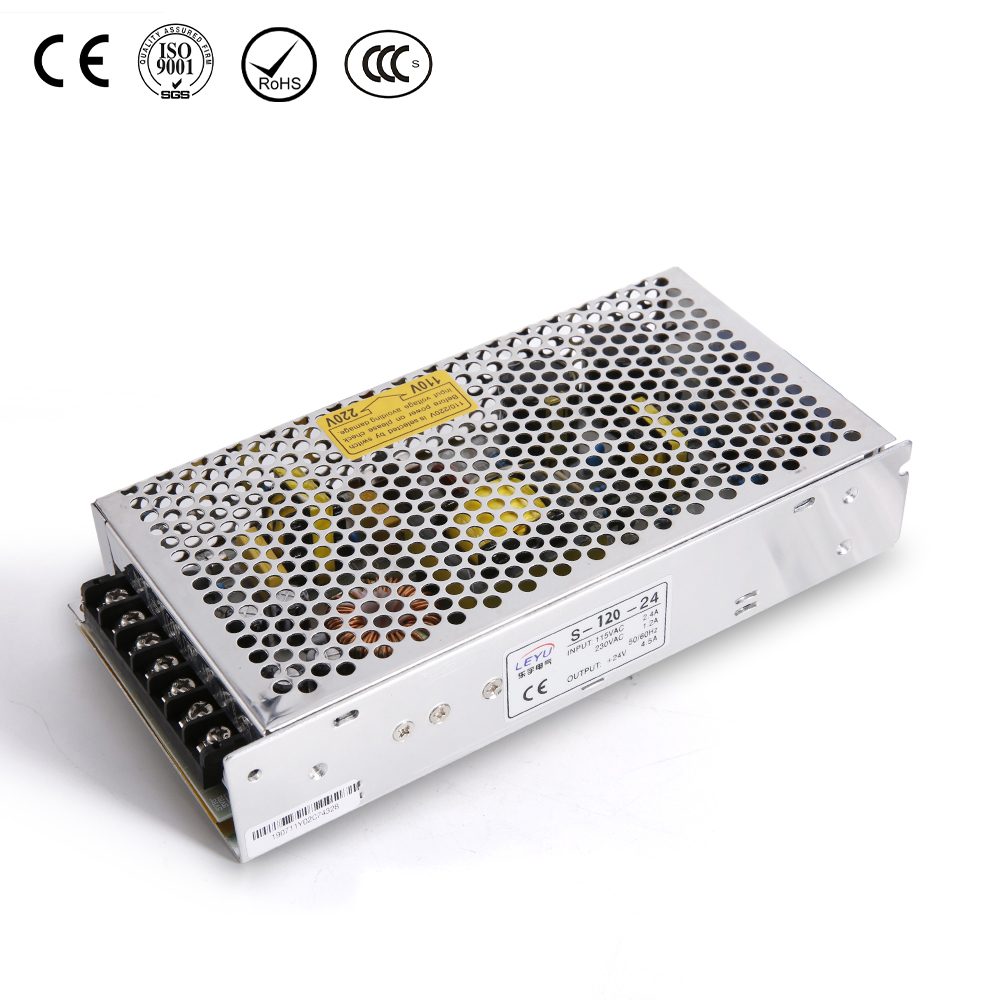

The Single Output Power Supply is an essential component designed for various industrial, commercial, and residential applications. It provides reliable and consistent power, ensuring smooth operation of electronic devices and equipment. This Single Output Power Supply is manufactured to meet international standards for quality and safety, providing a stable and efficient solution for powering machinery, automation systems, consumer electronics, and more. With versatile features and customization options, this product is ideal for businesses looking for bulk solutions and specific power requirements.
As a leading manufacturer and supplier of Single Output Power Supplies, we offer this product in wholesale quantities and provide custom solutions to meet the unique needs of your business.
SPECIFICATION | ||||||||
OUTPUT | ||||||||
Model | S-120-12 | S-120-13.8 | S-120-15 | S-120-24 | S-120-48 | |||
DC Voltage | 12V | 13.8V | 15V | 24V | 48V | |||
Rated Current | 10A | 8.7A | 8A | 5A | 2.5A | |||
Current Range | 0-10A | 0-8.7A | 0-8A | 0-5A | 0-2.5A | |||
Rated Power | 120W | 120W | 120W | 120W | 120W | |||
Ripple & Noise | 120mVp-p | 120mVp-p | 125mVp-p | 150mVp-p | 150mVp-p | |||
Voltage Adj. Range | ±10% | ±10% | ±10% | ±10% | ±10% | |||
Voltage Tolerance | ±1% | ±1% | ±1% | ±1% | ±1% | |||
Inlet Stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |||
Load Stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |||
Setup, Rise, Hold Up Time | 200s,50ms,20ms at full load | |||||||
INPUT | ||||||||
Voltage Range | 88~132VAC/180~264VAC selected by switch 47~63Hz; 255~370VDC | |||||||
AC Current | 2.6A/115V 1.3A/230V | |||||||
Efficiency | 80% | 81% | 83% | 84% | ||||
AC Inrush Current | Cold-start current 30A/115V 60A/230V | |||||||
Leakage Current | <1mA/240VAC | |||||||
PROTECTION | ||||||||
Over Load | 105%~150% | |||||||
Protection type: plusing hiccup shutdown Reset: auto recovery | ||||||||
ENVIRONMENT | ||||||||
Working Temp., Humidity | -10℃~+60℃(Refer to output derating curve),20%~90%RH | |||||||
Storage Temp., Humidity | -20℃~+85℃, 10%~95%RH | |||||||
Temp. Coefficient | ±0.03%/℃(0~50℃) | |||||||
Vibration | 10~500Hz,2G 10min,/1cycle,Period for 60min,Each axes | |||||||
SAFETY | ||||||||
Withstand Voltage | I/P-O/P: 3KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC | |||||||
Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC | |||||||
STANDARD | ||||||||
Safety Standard | Design refer to UL1012TUV EN60950(IEC950,UL1950) | |||||||
EMC Standard | CLSPR22(EN55022),IEC801-2,3,4,IEC555-2 Verification | |||||||
OTHERS | ||||||||
Dimension | 199*98*38mm(L*W*H) | |||||||
Weight | 0.66Kg | |||||||
Overload Protection: Safeguards the power supply and connected devices from damage caused by excessive load.
Compact Design: A small form factor makes it easy to integrate into different systems and tight spaces.
High Efficiency: Designed to minimize energy loss, offering a cost-effective power solution for a wide range of applications.
Wide Input Voltage Range: Compatible with different voltage levels, making it suitable for global use in diverse markets.
Electromagnetic Compatibility (EMC): Designed to comply with international EMC standards, reducing interference and ensuring smooth operation.
Safety Compliance: Meets international safety standards, providing peace of mind to users in various industries.
Reliable and Efficient: This Single Output Power Supply ensures a continuous, stable power output that improves the performance and lifespan of your electronic devices.
Versatile Applications: Suitable for use in a wide range of industries, from industrial machinery to consumer electronics, and even CCTV systems.
Energy Saving: High efficiency and low power loss mean this power supply reduces overall energy consumption, saving costs in the long run.
Customizable Solutions: Available for custom orders, allowing you to tailor the output voltage and specifications to your specific needs.
Durable Construction: Built to last, offering reliable performance over time in both light and heavy-duty environments.
Bulk Supply Options: Available in wholesale quantities, making it ideal for businesses and large-scale projects.
Industrial Equipment: Powers a wide range of industrial machinery, offering stable and reliable power to ensure uninterrupted operations.
Automation Systems: Provides essential power to automated control systems, sensors, and devices, ensuring smooth operations in manufacturing and other industrial sectors.
Consumer Electronics: Ideal for powering consumer electronics such as home appliances, gaming systems, and more.
Security Systems: Perfect for powering CCTV cameras and security devices, ensuring round-the-clock surveillance.
Medical Devices: Can be used to power medical equipment, where consistent and reliable power is critical for accurate diagnostics and treatments.
Communication Devices: Powers communication equipment, such as radios and telecommunication devices, ensuring continuous operation.
1.Can this Single Output Power Supply be used for industrial applications?
Yes, this power supply is designed for industrial environments. It is perfect for powering machinery, control systems, and other industrial equipment that require consistent and reliable power.
2.Is it suitable for powering CCTV systems?
Yes, this Single Output Power Supply is an excellent choice for CCTV systems. It provides stable and continuous power, ensuring reliable operation of security cameras and surveillance equipment.
3.Can I customize the output voltage for my specific needs?
Absolutely! We offer custom solutions, allowing you to tailor the output voltage and other specifications to meet your exact requirements.
4.How energy efficient is this Single Output Power Supply?
This Single Output Power Supply is designed to be highly efficient, minimizing energy loss and ensuring low operational costs. Its high efficiency translates to long-term savings on energy consumption.
5.What safety standards does this power supply meet?
This power supply complies with international safety standards, providing users with confidence in its reliability and performance.
