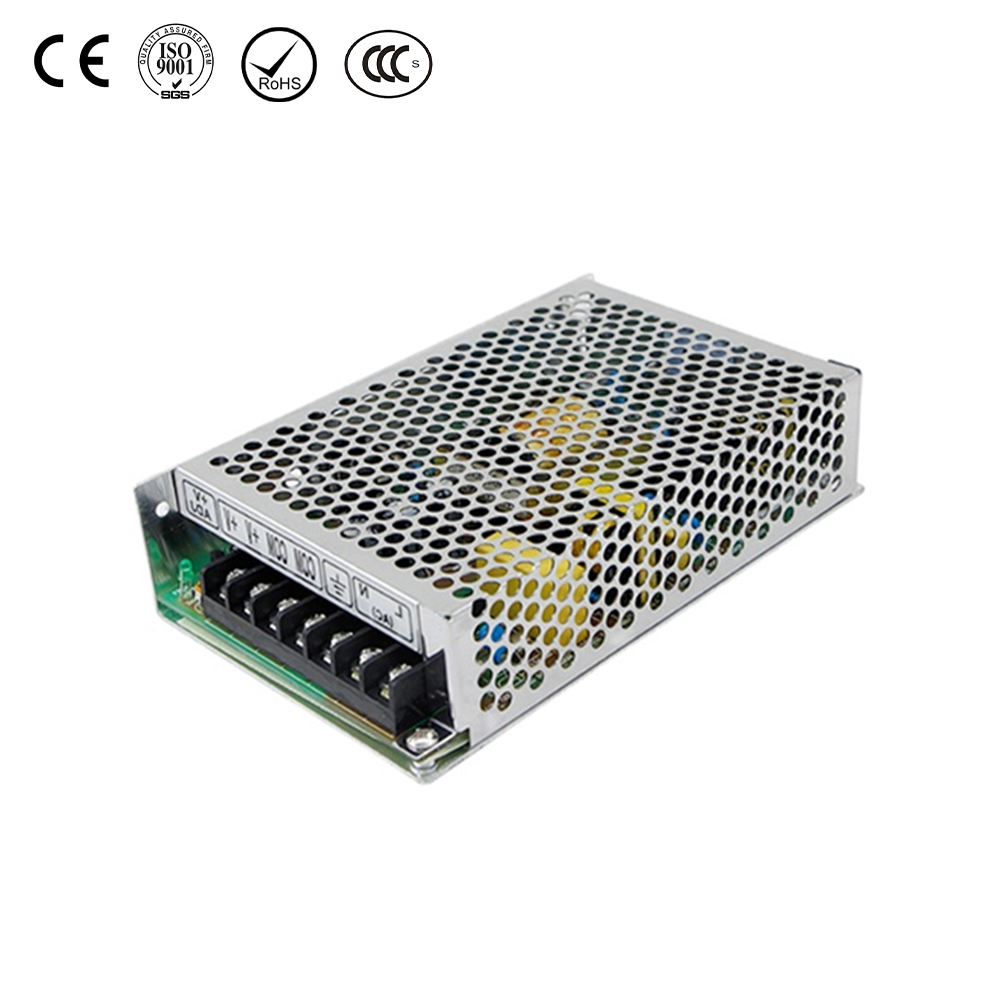

The Single Output Power Supply is an essential and reliable solution designed to deliver consistent and efficient power to a wide range of devices. This Single Output Power Supply is ideal for industrial, commercial, and residential applications, providing a stable and secure power source for equipment that requires a steady and continuous voltage supply. With a compact design and advanced safety features, it ensures efficient energy conversion while maintaining reliability in demanding environments. As a leading manufacturer and supplier, we offer wholesale options and custom solutions to meet specific voltage and application requirements.
SPECIFICATIONS | ||||
OUTPUT | ||||
Model | S-75-12 | S-75-15 | S-75-18 | S-75-24 |
DC Voltage | 12V | 15V | 18V | 24V |
Rated Current | 6.3A | 5.0A | 4.2A | 3.1A |
Current Range | 0-6.3A | 0-5.0A | 0-4.2A | 0-3.1A |
Rated Power | 74W | 74.1W | 74.2W | 74W |
Ripple & Noise | 120mVp-p | 150mVp-p | 150mVp-p | 150mVp-p |
Voltage Adj. Range | ±10% | ±10% | ±10% | ±10% |
Voltage Tolerance | ±1% | ±1% | ±1% | ±1% |
Inlet stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
Load stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
Setup, Rise, Hold Up Time | 800s,50ms,10ms/115VAC 300ms,50ms,80ms/230VAC at full load | |||
INPUT | ||||
Voltage Range | 88~132VAC/176~264VAC selected by switch 47~63Hz; 248~370VDC | |||
AC Current | 2.2A/115V 1.1A/230V | |||
Efficiency | 78% | 79% | 82% | 83% |
Inrush Current | Cold-start current 30A/115V 60A/230V | |||
Leakage Current | <1mA/240VAC | |||
PROTECTION | ||||
Over Load | 105%~150% | |||
Protection type: plusing hiccup shutdown Reset:auto recovery | ||||
ENVIRONMENT | ||||
Working Temp., Humidity | -10℃~+60℃(Refer to output derating curve), 20%~90%RH | |||
Storage Temp., Humidity | -20℃~+85℃, 10%~95%RH | |||
Temp. Coefficient | ±0.03%/℃(0~50℃) | |||
Vibration | 10~500Hz,2G 10min,/1cycle,Period for 60min,Each axes | |||
SAFETY | ||||
Withstand Voltage | I/P-O/P: 3KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC | |||
Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC | |||
STANDARD | ||||
Safety Standard | UL1012TUV EN60950(IEC950,UL1950)Approved | |||
EMC Standard | CLSPR22(EN55022),IEC801-2,3,4,IEC555-2 Verification | |||
OTHERS | ||||
Dimension | 159*97*38mm(L*W*H) | |||
Weight | 0.56Kg | |||
Overload Protection: The power supply limits current to 105%-150%, cutting off output when it reaches the undervoltage point. It resumes operation after rebooting.
Short-Circuit Protection: In case of a short circuit, the output voltage drops to the undervoltage point, effectively shutting down until reset.
Operating Environment: Functions in temperatures from -10°C to +50°C with a humidity range of 20% to 90% RH, ensuring reliable performance in various environments.
Storage Conditions: Safe for storage at temperatures between -20°C and +85°C with humidity ranging from 10% to 95% RH, offering flexibility in handling.
Insulation Voltage: Withstands 1.5kVac between input-output and input-chassis, and 0.5kVac between output-chassis, ensuring electrical safety during operation.
Leakage Current: When subjected to 1.5kVac input-output, the leakage current is limited to 5mA. At 220VAC input-output, leakage is less than 1mA, ensuring safety.
Insulation Resistance: Features an insulation resistance of 100MΩ at 500VDC, providing effective protection against electrical faults.
Efficient Conversion: The power supply features efficient power conversion, ensuring reliable and consistent output.
Low Ripple: It produces minimal ripple, maintaining stable voltage and reducing interference in connected systems.
Overload Protection: Provides automatic protection against overloads, preventing damage to both the power supply and connected devices.
LED Lighting: Ideal for powering LED lighting systems that require stable and efficient power for optimal performance.
Industrial Equipment: Suitable for a range of industrial devices, ensuring reliable power delivery for machinery and control systems.
1.What is the S-75 Single Output Power Supply used for?
The S-75 Single Output Power Supply is designed for industrial applications, providing reliable and efficient DC power to machinery, automation systems, and control devices.
2. What are the different models available for the S-75 Single Output Power Supply?
The S-75 power supply comes in four models with different output voltages: 12V, 15V, 18V, and 24V. Each model caters to specific power requirements.
3.How do I choose the right model for my equipment?
The choice of model depends on the voltage requirements of your equipment. For example, choose the 12V model for systems that require 12V, and so on. Ensure to match the voltage and current ratings with your device specifications.
4. What is the efficiency of the S-75 Single Output Power Supply?
The efficiency of the S-75 power supply varies by model. It ranges from 78% to 83%, ensuring optimal performance and energy savings.
5.Does the S-75 power supply have protection features?
Yes, the S-75 includes overload protection, short-circuit protection, and ensures safety during operation with built-in safety mechanisms such as insulation resistance and leakage current protection.
