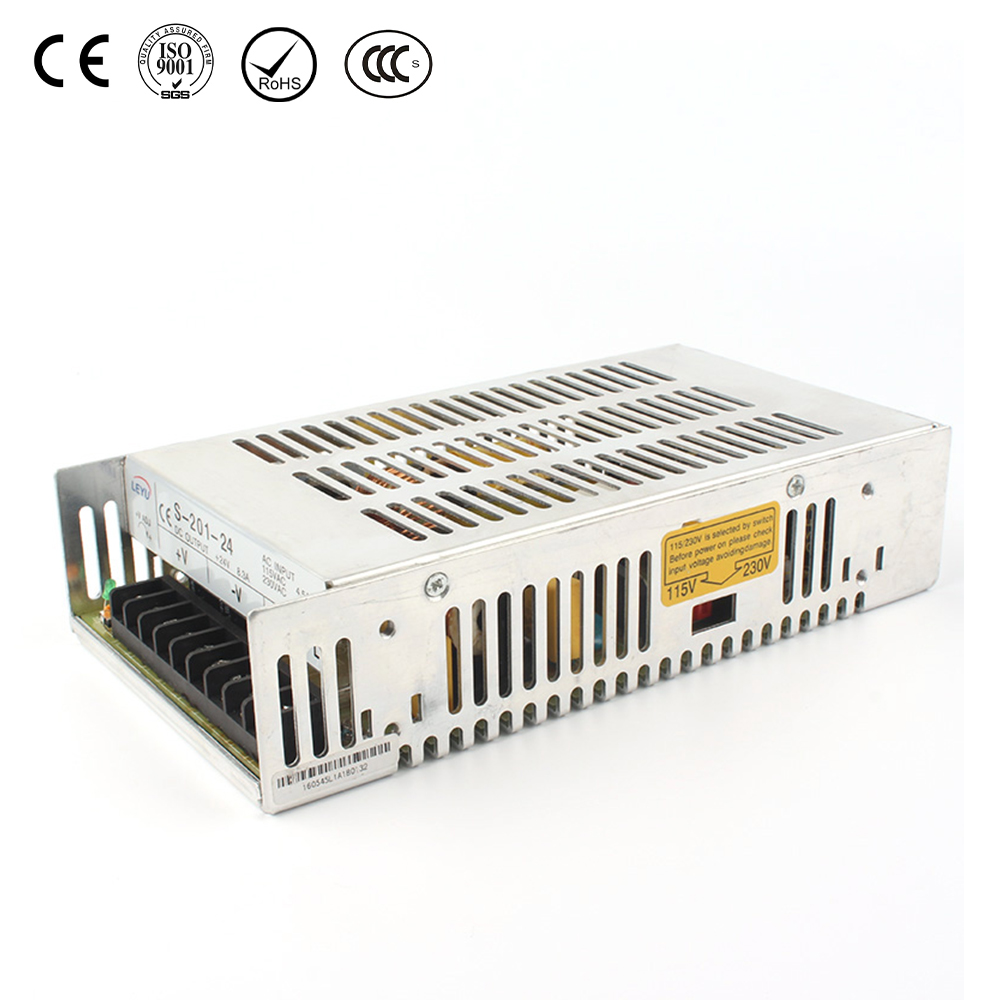

This industrial single output power supply provides reliable DC voltage in multiple models: 5V, 7.5V, 12V, 13.5V, 15V, 24V, 27V, and 48V. It delivers up to 40A of output current with a power rating of up to 200W. Featuring high efficiency (up to 84%) and multiple protections including overload, overvoltage, and over-temperature safeguards, it ensures safe and stable operation. The power supply operates in a wide input voltage range (90~264VAC) and is suitable for various industrial applications. Compact and durable, it is ideal for harsh environments, offering high reliability in performance.
SPECIFICATIONS | ||||||||||
OUTPUT | ||||||||||
Model | S-201-5 | S-201-7.5 | S-201-12 | S-201-13.5 | S-201-15 | S-201-24 | S-201-27 | S-201-48 | ||
DC Voltage | 5V | 7.5V | 12V | 13.5V | 15V | 24V | 27V | 48V | ||
Rated Current | 40A | 26.5A | 16.5A | 14.7A | 13A | 8.3A | 7.4A | 4.2A | ||
Current Range | 0-40A | 0-26.5A | 0-16.5A | 0-14.7A | 0-13A | 0-8.3A | 0-7.4A | 0-4.2A | ||
Rated Power | 200W | 198.75W | 198W | 198.45W | 198W | 199.2W | 199.8 | 201.6W | ||
Ripple & Noise | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 200mVp-p | 240mVp-p | ||
Voltage Adj. Range | -10%,+12% | ±20% | -16%,+10% | -12%,+11% | -10%,+20% | -16%,10% | -4%,+18% | -15%,+17% | ||
Voltage Tolerance | ±2% | ±2% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ||
Setup, Rise, Hold Up Time | 200ms,100ms,20ms at full load | |||||||||
INPUT | ||||||||||
Voltage Range | 90~132VAC/180~264VAC selected by switch 47~63Hz; 254~370VDC | |||||||||
AC Current | 4.5A/115V 2.5A/230V | |||||||||
Efficiency | 74% | 79% | 80% | 80% | 81% | 83% | 83% | 84% | ||
Inrush Current | 50A/115V 50A/230V | |||||||||
Leakage Current | <3.5mA/240VAC | |||||||||
PROTECTION | ||||||||||
Over Load | 115%~135% | |||||||||
Protection type: shut down o/p voltage, recovers automatically after fault condition is removed | ||||||||||
Over Voltage | 115%~135% | |||||||||
Protection: hiccup mode, recovers automatically after fault condition is removed | ||||||||||
Over Temp. | RTH3≥90℃, shut down o/p voltage, recovers automatically after temperature goes down | |||||||||
ENVIRONMENT | ||||||||||
Working Temp., Humidity | -10℃~+50℃; 20%~90%RH | |||||||||
Storage Temp., Humidity | -20℃~+85℃; 10%~95%RH | |||||||||
Vibration | 10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes | |||||||||
SAFETY | ||||||||||
Withstand Voltage | I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC | |||||||||
Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC | |||||||||
STANDARD | ||||||||||
Safety Standard | Design refer to UL1950 | |||||||||
EMC Standard | Design refer to FCC Part15 J Conduction Class A | |||||||||
OTHERS | ||||||||||
Dimension | 215*115*50mm(L*W*H) | |||||||||
Weight | 0.76Kg | |||||||||
Packing | 20pcs/16Kg | |||||||||
NOTE | ||||||||||
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation | ||||||||||
Overload Protection: Protects from overloading, with recovery between 105% and 150% output.
Overvoltage Protection: Automatically shuts down output between 13.8V and 16.2V, resets after power cycle.
Overtemperature Protection: Automatically recovers when internal temperature exceeds 90°C.
Short Circuit Protection: Safeguards the device against short circuit events.
Leakage Current: Less than 3.5mA at 240VAC for safe operation.
Insulation Resistance: 100MΩ at 500VDC between input and output.
Withstand Voltage Test: 1.5KVAC between input and output, 1.5KVAC between input and casing, and 0.5KVAC between output and casing.
Electromagnetic Compatibility: Complies with FCC Part 15J Conduction Class B standards.
Industrial Equipment: Provides stable power for machinery and control systems.
LED Lighting: Supplies consistent power for various lighting solutions.
Telecommunications: Ensures reliable operation of communication devices.
Security Systems: Delivers dependable power for surveillance and alarm systems.
1. What is the output voltage range of the single output power supply?
The output voltage ranges from 5V to 48V depending on the model.
2. What protection features are included in this single output power supply?
It includes overload protection, overvoltage protection, high-temperature protection, and short-circuit protection.
3. What is the efficiency of this single output power supply?
The efficiency varies between 74% and 84%, depending on the output model.
4. What is the maximum rated current of the single output power supply?
The maximum rated current is 40A for the 5V model and decreases as the output voltage increases.
5. Does the single output power supply meet safety standards?
Yes, it complies with UL1950 safety standards and FCC Part 15J Conduction Class B EMC standards.
