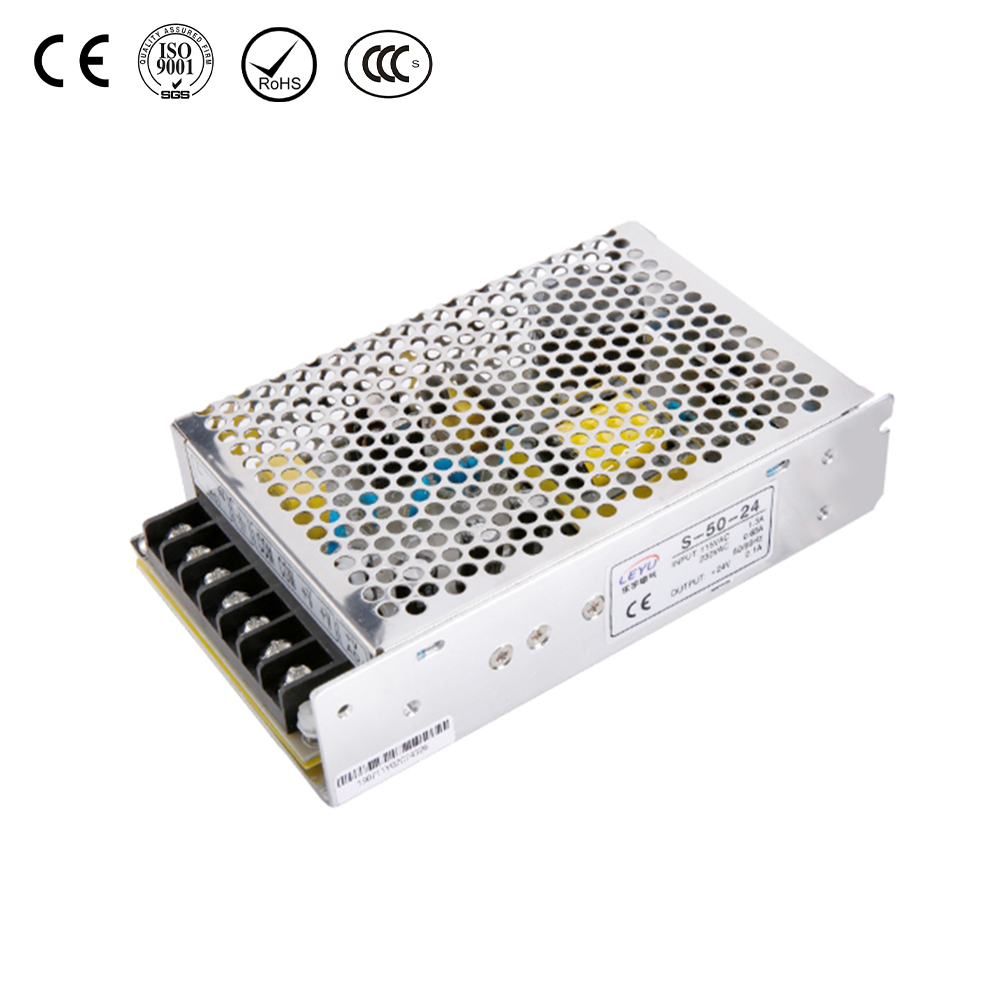

The S-50 Adjustable AC to DC Single Output Power Supply is a reliable and efficient solution for various applications. It provides stable DC voltage conversion from AC, making it suitable for powering electronic devices, industrial equipment, and communication systems. This power supply unit is compact, durable, and ensures high performance in demanding environments.
The unit is designed with a wide input voltage range, accommodating both 115V and 230V AC systems. The power supply is adjustable, offering various DC voltage outputs, including 5V, 12V, 15V, 24V, and 48V. It ensures consistent power with low ripple and noise, providing clean and stable output for sensitive devices.
SPECIFICATIONS | |||||
Model | S-50-5 | S-50-12 | S-50-15 | S-50-24 | S-50-48 |
DC Voltage | 5V | 12V | 15V | 24V | 48V |
Rated Current | 10A | 4.2A | 3.4A | 2.1A | 1A |
Current Range | 0-10A | 0-4.2A | 0-3.4A | 0-2.1A | 0-1A |
Rated Power | 50W | 50.4W | 51W | 50.4W | 48W |
Ripple & Noise | 75mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p |
Voltage Adj. Range | -5%, +10% | ±10% | ±10% | ±10% | ±10% |
Voltage Tolerance | ±2% | ±1% | ±1% | ±1% | ±1% |
Setup, Rise, Hold Up Time | 200ms,100ms,20ms at full load | ||||
INPUT | |||||
Voltage Range | 85~132VAC/170~264VAC selected by switch 47~63Hz; 240~370VDC | ||||
AC Current | 1.3A/115V 0.65A/230V | ||||
Efficiency | 71% | 78% | 78% | 82% | 84% |
Inrush Current | Cold start 18A/115V 36A/230V | ||||
Leakage Current | <1mA/240VAC | ||||
PROTECTION | |||||
Over Load | 105%~150% | ||||
Protection type: Fold back current limiting, recovers automatically after fault condition is removed | |||||
ENVIRONMENT | |||||
Working Temp., Humidity | -10℃~+60℃; 20%~90%RH | ||||
Storage Temp., Humidity | -20℃~+85℃; 10%~95%RH | ||||
Vibration | 10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes | ||||
SAFETY | |||||
Withstand Voltage | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | ||||
Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC | ||||
STANDARD | |||||
Safety Standard | Design refer to UL1012 | ||||
EMC Standard | Design refer to FCC Part15 J Conduction Class B | ||||
OTHERS | |||||
Dimension | 159*97*38mm(L*W*H) | ||||
Weight | 0.51Kg | ||||
Packing | 24pcs/13.1Kg/0.7CUFT | ||||
NOTE | |||||
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μf & 47μf parallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation | |||||
Single Output: Delivers a steady DC output to power your equipment, ensuring smooth performance.
AC to DC Conversion: Converts 110V AC input into DC output, making it suitable for devices requiring DC power.
Compact and Durable Design: Engineered for durability, the power supply unit comes in a compact size, making it easy to install in any environment.
High Efficiency: Optimized for energy efficiency, reducing power loss and improving long-term savings.
Safety Features: Equipped with over-voltage, over-current, and short-circuit protection to ensure the safety of your devices.
Wide Compatibility: Suitable for a variety of applications including electronics, communications equipment, and industrial machinery.
Stable Power Supply: With its high-quality components, this power supply delivers stable and reliable DC output, ensuring the longevity of your devices.
Energy Efficient: The power conversion technology maximizes efficiency, minimizing energy loss and reducing operational costs.
Versatile Applications: This unit is perfect for powering communication systems, industrial equipment, home appliances, and more.
Custom Solutions: As a manufacturer, we offer customization options to tailor the power supply to your specific needs, including different input and output ranges, or housing designs.
Cost-Effective: Wholesale prices available for bulk orders, allowing you to save costs on large-scale installations.
Industrial Equipment: Provides the necessary DC power for motors, control systems, and automation equipment.
Communication Systems: Ideal for powering telecommunication devices, routers, and other network equipment.
Consumer Electronics: Powers home appliances, personal electronics, and other devices requiring a stable DC input.
Lighting Systems: Suitable for LED lighting systems that require a stable DC power source for optimal performance.
Medical Devices: Offers reliable power for medical equipment, ensuring safety and functionality.
1. What is the input voltage for this single output power supply?
The input voltage for this single output power supply is 110V AC, which is suitable for most standard electrical outlets.
2.Can I customize the output voltage?
Yes, we offer customization options to suit your specific requirements. Please contact us for more details on custom voltage solutions.
3.Is this single output power supply suitable for outdoor use?
This model is designed for indoor use. If you need a power supply for outdoor use, please inquire about weather-resistant models that can withstand harsher conditions.
4.How do I know if this single output power supply is compatible with my device?
To ensure compatibility, verify the voltage and current specifications of your device. If you need assistance, our team can help you choose the right model for your application.
5. Can this single output single output power supply be used with custom equipment?
Absolutely! As a leading supplier and manufacturer, we offer custom power supply solutions tailored to meet the specific needs of your equipment.
