Features:
High efficiency, high reliability, low cost
AC input range selected by switch
100% full load burn-in test
Protections: Short circuit/Over load/ Over voltage
Cooling by free air convection
Fixed switching frequency at 25 KHz
2 years warranty
SPECIFICATIONS |
OUTPUT |
|
Model | S-145-5 | S-145-7.5 | S-145-12 | S-145-15 | S-145-24 | S-145-32 |
DC Voltage | 5V | 7.5V | 12V | 15V | 24V | 32V |
Rated Current | 25A | 18A | 12A | 9.6A | 6A | 4.5A |
Current Range | 0-25A | 0-18A | 0-12A | 0-9.6A | 0-6A | 0-4.5A |
Rated Power | 125W | 135W | 144W | 144W | 144W | 144W |
Ripple & Noise | 100mVp-p | 120mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | 150mVp-p |
Voltage Adj. Range | ±10% | -20%;+10% | -12%;+10% | -12%;+10% | -12%;+16% | -12%;+16% |
Voltage Tolerance | ±2% | ±1% | ±1% | ±1% | ±1% | ±1% |
Setup, Rise, Hold Up Time | 100ms,50ms,20ms at full load |
|
|
INPUT |
|
Voltage Range | 85~132VAC/180~264VAC selected by switch 47~63Hz; 255~370VDC |
AC Current | 3.2A/115V 1.6A/230V |
Efficiency | 78% | 80.5% | 80.5% | 81% | 83.5% | 83.5% |
Inrush Current | Cold start 35A/230VAC |
Leakage Current | <3.5mA/240VAC |
|
|
PROTECTION |
|
Over Load | 135%~165% |
Protection type: Shut down o/p voltage, re-power on to recover |
Over Voltage | 115%~135% |
Protection type: Shut down o/p voltage, re-power on to recover |
|
|
ENVIRONMENT |
|
Working Temp., Humidity | -10℃~+60℃; 20%~90%RH |
Storage Temp., Humidity | -20℃~+85℃; 10%~95%RH |
Vibration | 10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes |
|
|
SAFETY |
|
Withstand Voltage | I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC |
Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC |
|
|
STANDARD |
|
Safety Standard | Design refer to UL1012 |
EMC Standard | Design refer to EN55022,IEC801-2,3,4 |
|
|
OTHERS |
|
Dimension | 199*98*38mm(L*W*H) |
Weight | 0.71Kg |
Packing | 30pcs/22.5kg/1.22CUFT |
|
|
NOTE |
|
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation |
Product Introduction: S145 Single Output Power Supply
The S145 Single Output Power Supply is a highly efficient, reliable, and cost-effective power solution designed to meet the demands of various industrial and commercial applications. This power supply series stands out in the market due to its exceptional performance and robust design, making it an ideal choice for users who require stable and durable power solutions without breaking the bank.
Key Advantages
-
High Efficiency and Energy Savings
The S145 series achieves high efficiency levels, with some models reaching up to 83.5%. This not only reduces energy consumption but also lowers operating costs over time, making it an environmentally friendly and economically sound choice for long-term use.
-
Superior Reliability
Each unit undergoes a rigorous 100% full load burn-in test before shipment. This ensures that every power supply is thoroughly tested and validated, minimizing the risk of failure and providing users with a reliable power solution that can withstand continuous operation.
-
Cost-Effective Solution
Despite its high performance and reliability, the S145 series is designed to be affordable. It offers excellent value for money, making it accessible to a wide range of users without compromising on quality.
-
Flexible Input Options
The power supply features a wide AC input range that can be selected by a switch (85~132VAC/180~264VAC), allowing it to work seamlessly in different regions and power environments. This flexibility makes it suitable for both domestic and international applications.
-
Comprehensive Protection Mechanisms
The S145 series includes multiple protection features such as short-circuit, overload, and over-voltage protection. These mechanisms ensure that the power supply and connected devices are safeguarded against potential electrical issues, extending their lifespan and reducing maintenance costs.
-
Quiet and Efficient Cooling
Utilizing free air convection, the S145 series operates quietly without the need for additional cooling fans. This not only reduces noise pollution but also minimizes the risk of dust accumulation and fan-related failures, contributing to a more reliable and low-maintenance operation.
-
Extended Warranty
The S145 series comes with a 2-year warranty, providing users with added peace of mind. This warranty demonstrates the manufacturer's confidence in the product's quality and reliability, ensuring that users can trust their power supply for years to come.
Ideal Applications
The S145 Single Output Power Supply is suitable for a wide range of applications, including but not limited to:
-
Industrial Automation: Provides stable power for control systems, sensors, and actuators.
-
Telecommunications: Ensures reliable power for communication devices and infrastructure.
-
Instrumentation: Powers precision instruments and laboratory equipment.
-
Commercial Equipment: Suitable for POS systems, kiosks, and other commercial devices.
Conclusion
The S145 Single Output Power Supply is a versatile, reliable, and cost-effective solution that combines high efficiency with robust protection features. Its flexibility, quiet operation, and extended warranty make it an excellent choice for users seeking a dependable power supply that can meet their needs without compromising on performance or budget.

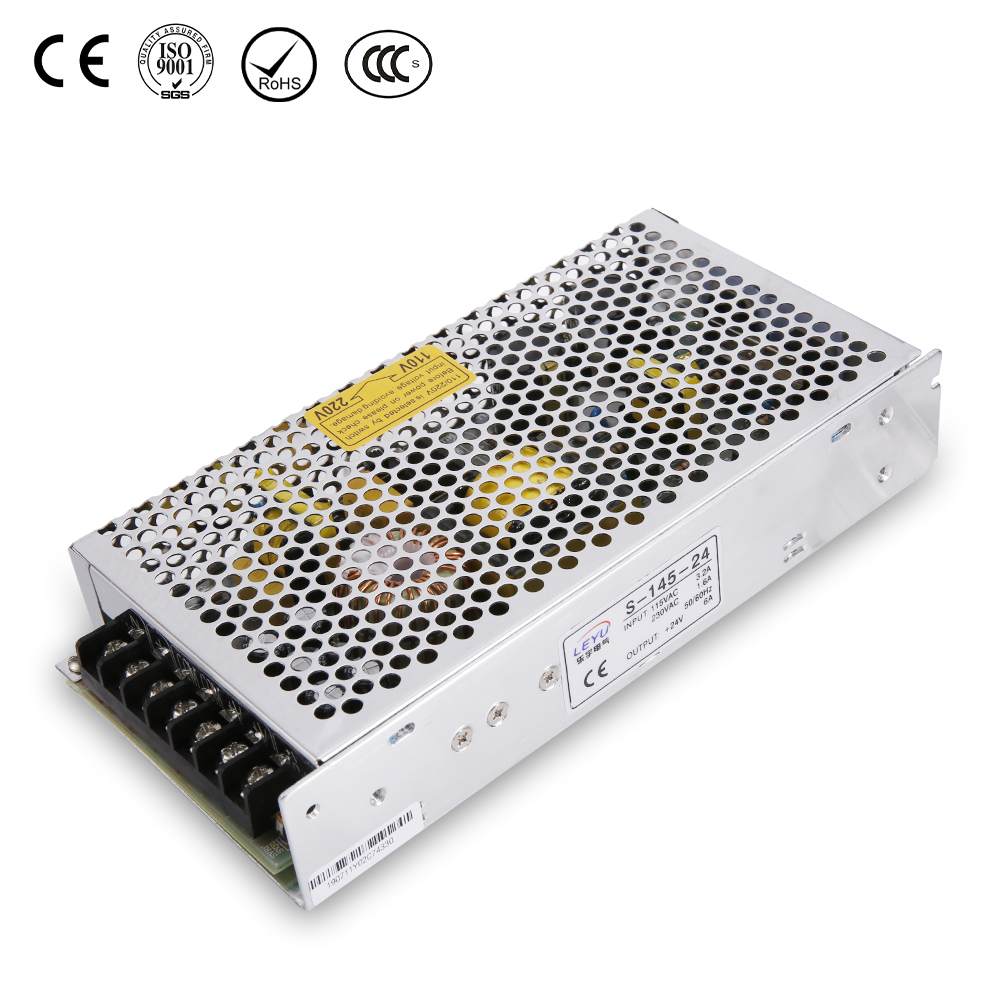

![S145 Single Output Power Supply]( "S145 Single Output Power Supply")
