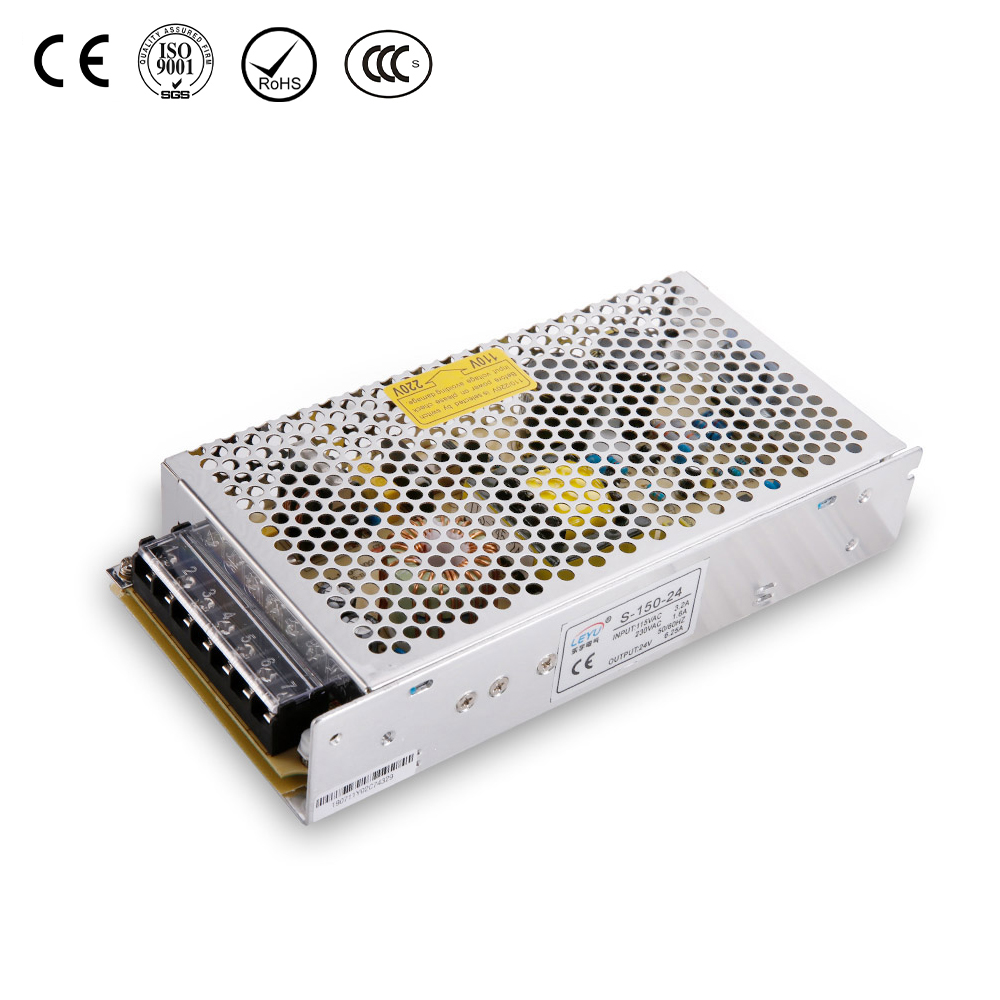

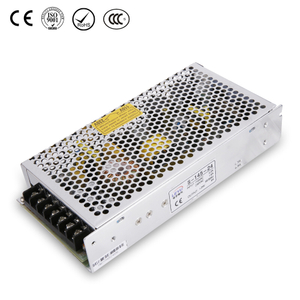

High efficiency, high reliability, low cost
AC input range selected by switch
100% full load burn-in test
Protections: Short circuit/Over load/ Over voltage
Cooling by free air convection
Fixed switching frequency at 25 KHz
2 years warranty

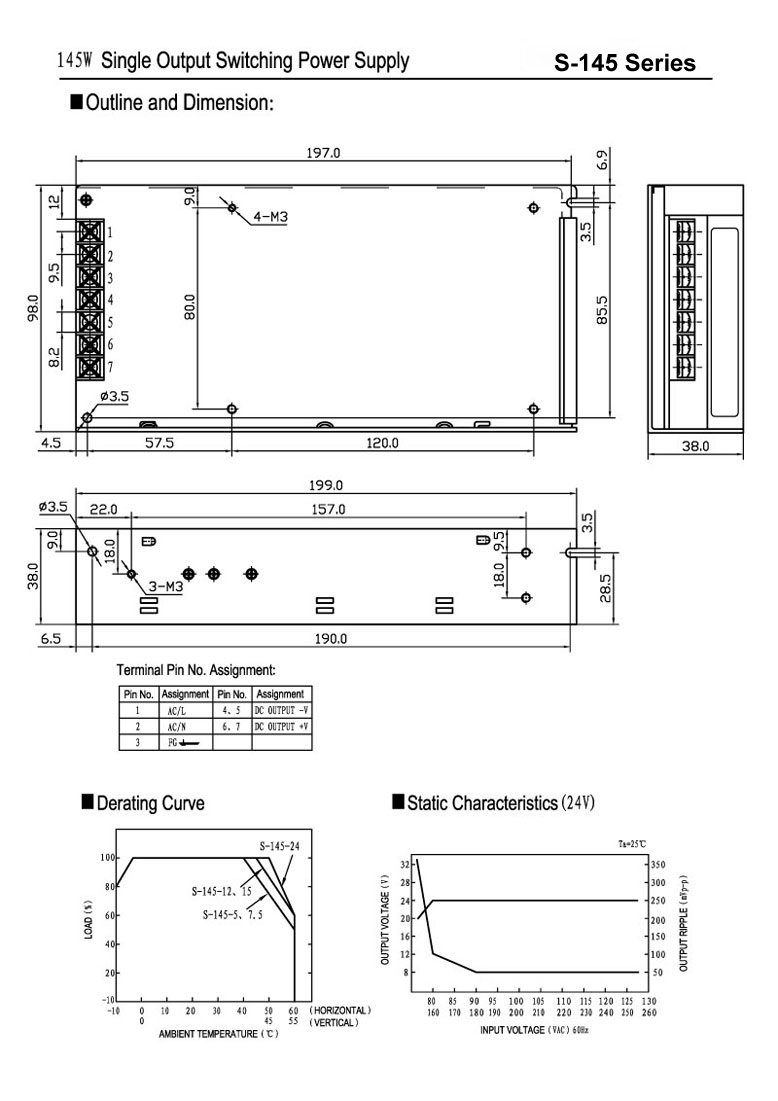

SPECIFICATIONS | |||||||
OUTPUT | |||||||
Model | S-150-5 | S-150-7.5 | S-150-12 | S-150-15 | S-150-24 | S-150-48 | |
DC Voltage | 5V | 7.5V | 12V | 15V | 24V | 48V | |
Rated Current | 25A | 18A | 12A | 9.6A | 6A | 3.1A | |
Current Range | 0-25A | 0-18A | 0-12A | 0-9.6A | 0-6A | 0-3.1A | |
Rated Power | 148W | 148W | 148W | 148W | 148W | 148W | |
Ripple & Noise | 100mVp-p | 120mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | 150mVp-p | |
Voltage Adj. Range | ±10% | -20%;+10% | -12%;+10% | -12%;+10% | -12%;+16% | -12%;+16% | |
Voltage Tolerance | ±2% | ±1% | ±1% | ±1% | ±1% | ±1% | |
Setup, Rise, Hold Up Time | 100ms,50ms,20ms at full load | ||||||
INPUT | |||||||
Voltage Range | 85~132VAC/180~264VAC selected by switch 47~63Hz; 255~370VDC | ||||||
AC Current | 3.2A/115V 1.6A/230V | ||||||
Efficiency | 78% | 80.5% | 80.5% | 81% | 83.5% | 83.5% | |
Inrush Current | Cold start 35A/230VAC | ||||||
Leakage Current | <3.5mA/240VAC | ||||||
PROTECTION | |||||||
Over Load | 135%~165% | ||||||
Protection type: Shut down o/p voltage, re-power on to recover | |||||||
Over Voltage | 115%~135% | ||||||
Protection type: Shut down o/p voltage, re-power on to recover | |||||||
ENVIRONMENT | |||||||
Working Temp., Humidity | -10℃~+60℃; 20%~90%RH | ||||||
Storage Temp., Humidity | -20℃~+85℃; 10%~95%RH | ||||||
Vibration | 10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes | ||||||
SAFETY | |||||||
Withstand Voltage | I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC | ||||||
Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC | ||||||
STANDARD | |||||||
Safety Standard | Design refer to UL1012 | ||||||
EMC Standard | Design refer to EN55022,IEC801-2,3,4 | ||||||
OTHERS | |||||||
Dimension | 199*98*38mm(L*W*H) | ||||||
Weight | 0.71Kg | ||||||
Packing | 30pcs/22.5kg/1.22CUFT | ||||||
NOTE | |||||||
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation | |||||||
A: The S-150 Single Output Power Supply is designed to provide a stable and reliable DC power source for various electronic devices and systems. It is commonly used in industrial equipment, telecommunications, laboratory instrumentation, and other applications that require a single DC voltage output.
A: The S-150 series offers multiple models with different output voltages and current ratings. You should choose the model that matches the voltage and power requirements of your device. For example, if your device requires 12V and a maximum of 12A, you would select the S-150-12 model.
A: The S-150 power supply has a switch that allows you to select between two input voltage ranges (e.g., 85-132VAC or 180-264VAC). Make sure to set the switch to the correct position based on your local power supply voltage before connecting the power supply.
A: Yes, the output voltage can be adjusted within a certain range (e.g., ±10% or ±12%) depending on the model. This allows you to fine-tune the voltage to meet your specific requirements.
A: The S-150 power supply can operate in temperatures ranging from -10°C to +60°C. For storage, it can withstand temperatures from -20°C to +85°C.
A: The S-150 power supply comes with a standard two-year warranty. This covers manufacturing defects and ensures that you have support for any issues that may arise during this period.
A: To maintain the power supply, keep it free from dust and debris. Ensure that the ventilation openings are not blocked to allow for proper air convection cooling. Do not expose it to moisture or extreme temperatures. Regular visual inspections for any signs of damage are also recommended.
