Features:
High efficiency, high reliability
Universal AC input / Full range
100% full load burn-in test
Protections: Short circuit / Over load / Over voltage
Cooling by free air convection
Fixed switching frequency at 50KHz
2 years warranty
SPECIFICATION
OUTPUT | |||||

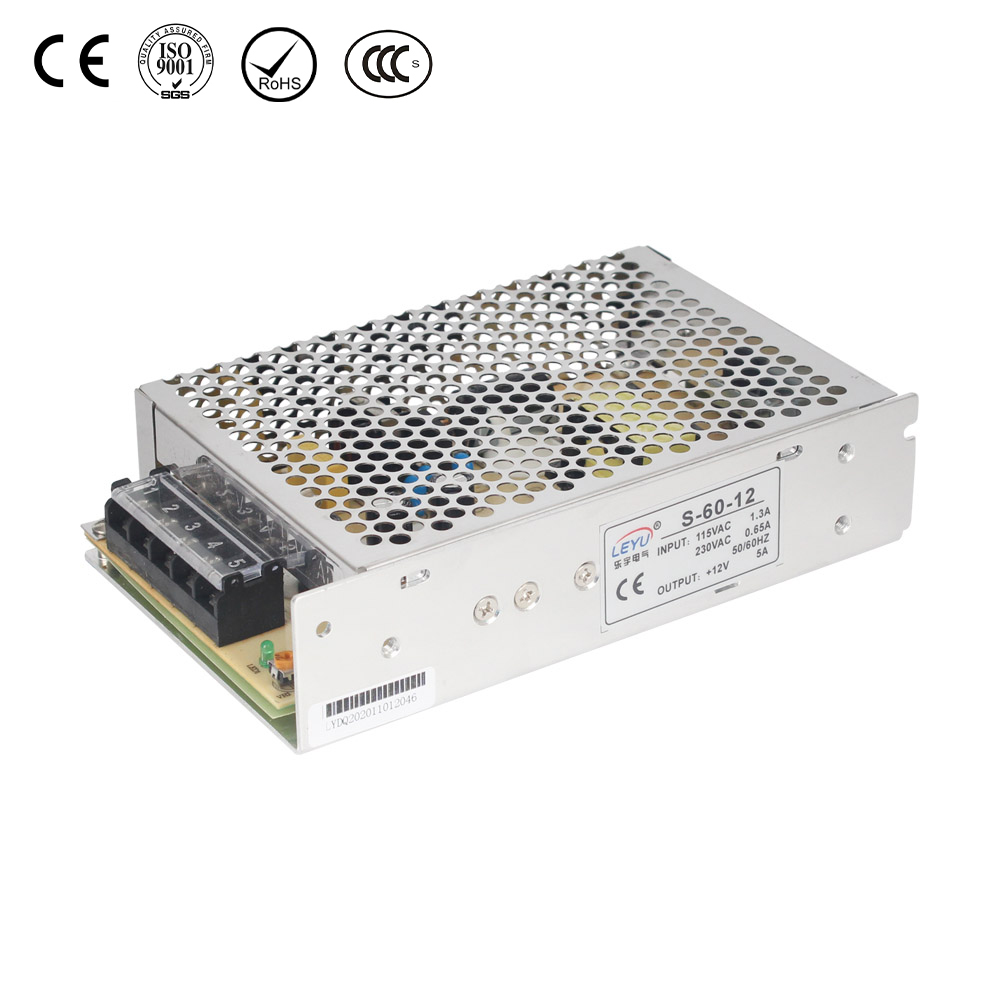

Model | S-60-5 | S-60-12 | S-60-15 | S-60-24 | S-60-48 |
DC Voltage | 5V | 12V | 15V | 24V | 48V |
Rated Current | 12A | 5A | 4A | 2.5A | 1.3A |
Current Range | 0-12A | 0-5A | 0-4A | 0-2.5A | 0-1.3A |
Rated Power | 60W | 60W | 60W | 60W | 62W |
Ripple & Noise | 120mVp-p | 120mVp-p | 150mVp-p | 150mVp-p | 200mVp-p |
Voltage Adj. Range | -5%, +10% | ±10% | ±10% | ±10% | ±10% |
Voltage Tolerance | ±2% | ±1% | ±1% | ±1% | ±1% |
Setup, Rise, Hold Up Time | 800ms,50ms,10ms/115VAC 300ms,50ms,80ms/230VAC at full load | ||||
INPUT | |||||
Voltage Range | 85~132VAC/170~264VAC selected by switch 47~63Hz; 240~370VDC | ||||
AC Current | 2A/115V 1A/230V | ||||
Efficiency | 73% | 76% | 77% | 79% | 80% |
Inrush Current | Cold start 30A/115VAC 60A/230VAC | ||||
Leakage Current | <3.5mA/240VAC | ||||
PROTECTION | |||||
Over Load | 105%~150% | ||||
Protection type: Fold back current limiting, recovers automatically after fault condition is removed. | |||||
Over Voltage | 115%~135% | ||||
Protection type: hiccup mode, recovers automatically after fault condition is removed. | |||||
ENVIRONMENT | |||||
Working Temp., Humidity | -10℃~+60℃; 20%~90%RH | ||||
Storage Temp., Humidity | -20℃~+85℃; 10%~95%RH | ||||
Vibration | 10~500Hz, 2G 10min./1cycle，period for 60min, each long X, Y, Z, axes | ||||
SAFETY | |||||
Withstand Voltage | I/P-O/P: 3KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC | ||||
Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC | ||||
STANDARD | |||||
Safety Standard | Design refer to UL1012, UL1950, TUV EN60950 | ||||
EMC Standard | Design refer to EN55022, EN61000-3-2, -3, EN61000-4-2, 3, 4, 5, 6, 8, 11; ENV50204, EN55024 | ||||
OTHERS | |||||
Dimension | 159*97*38mm(L*W*H) | ||||
Weight | 0.51Kg | ||||
Packing | 24pcs/13.1Kg/0.7CUFT | ||||
NOTE | |||||
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μf & 47μf parallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation 4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. | |||||
